VEX Robotics Motor Data - Mini CIM Motor (217-3371)

The Mini CIM has 2/3 the power of a CIM motor, in a similar form-factor and with the same mounting. Similar output speeds allow Mini CIM motors to be combined in mechanisms with full-size CIM motors using the same gearing. Use this motor interchangeably with CIMs in your designs, then swap them in and out to put your power where you need it most.

Free Speed (RPM)	6200 (+/- 10%)	5840
	Published Specification	Experimental Data
Free Current (A)	1.5	3
Maximum Power (W)	230	215
Stall Torque (N · m)	1.4	1.41
Stall Current (A)	86	89

Click to download 12V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	1.409	89.391	1072.692	0	0	1072.692
58.395	1.39491	88.527	1062.324	8.53	0.803	1053.794
116.791	1.38082	87.663	1051.956	16.888	1.605	1035.068
175.186	1.36673	86.799	1041.588	25.073	2.407	1016.515
233.582	1.35264	85.935	1031.22	33.086	3.208	998.134
291.977	1.33855	85.071	1020.852	40.927	4.009	979.925
350.372	1.32446	84.207	1010.484	48.596	4.809	961.888
408.768	1.31037	83.343	1000.116	56.092	5.609	944.024
467.163	1.29628	82.479	989.748	63.416	6.407	926.332
525.559	1.28219	81.615	979.38	70.567	7.205	908.813
583.954	1.2681	80.751	969.012	77.546	8.003	891.466
642.35	1.25401	79.886	958.632	84.353	8.799	874.279
700.745	1.23992	79.022	948.264	90.988	9.595	857.276
759.14	1.22583	78.158	937.896	97.45	10.39	840.446
817.536	1.21174	77.294	927.528	103.74	11.185	823.788
875.931	1.19765	76.43	917.16	109.857	11.978	807.303
934.327	1.18356	75.566	906.792	115.802	12.771	790.99
992.722	1.16947	74.702	896.424	121.575	13.562	774.849
1051.117	1.15538	73.838	886.056	127.176	14.353	758.88
1109.513	1.14129	72.974	875.688	132.604	15.143	743.084
1167.908	1.1272	72.11	865.32	137.86	15.932	727.46
1226.304	1.11311	71.246	854.952	142.944	16.72	712.008
1284.699	1.09902	70.382	844.584	147.855	17.506	696.729
1343.094	1.08493	69.518	834.216	152.594	18.292	681.622
1401.49	1.07084	68.654	823.848	157.16	19.076	666.688
1459.885	1.05675	67.79	813.48	161.555	19.86	651.925
1518.281	1.04266	66.926	803.112	165.777	20.642	637.335
1576.676	1.02857	66.062	792.744	169.826	21.423	622.918
1635.071	1.01448	65.198	782.376	173.704	22.202	608.672
1693.467	1.00039	64.334	772.008	177.409	22.98	594.599
1751.862	0.9863	63.47	761.64	180.941	23.757	580.699
1810.258	0.97221	62.605	751.26	184.302	24.532	566.958
1868.653	0.95812	61.741	740.892	187.49	25.306	553.402
1927.049	0.94403	60.877	730.524	190.505	26.078	540.019
1985.444	0.92994	60.013	720.156	193.349	26.848	526.807
2043.839	0.91585	59.149	709.788	196.02	27.617	513.768
2102.235	0.90176	58.285	699.42	198.518	28.383	500.902
2160.63	0.88767	57.421	689.052	200.845	29.148	488.207
2219.026	0.87358	56.557	678.684	202.999	29.911	475.685
2277.421	0.85949	55.693	668.316	204.981	30.671	463.335
2335.816	0.8454	54.829	657.948	206.79	31.43	451.158
2394.212	0.83131	53.965	647.58	208.427	32.186	439.153
2452.607	0.81722	53.101	637.212	209.892	32.939	427.32
2511.003	0.80313	52.237	626.844	211.184	33.69	415.66
2569.398	0.78904	51.373	616.476	212.304	34.438	404.172
2627.793	0.77495	50.509	606.108	213.252	35.184	392.856
2686.189	0.76086	49.645	595.74	214.028	35.926	381.712
2744.584	0.74677	48.781	585.372	214.631	36.666	370.741
2802.98	0.73268	47.917	575.004	215.062	37.402	359.942
2861.375	0.71859	47.053	564.636	215.32	38.134	349.316
2919.771	0.7045	46.189	554.268	215.406	38.863	338.862
2978.166	0.69041	45.324	543.888	215.32	39.589	328.568
3036.561	0.67632	44.46	533.52	215.062	40.31	318.458
3094.957	0.66223	43.596	523.152	214.631	41.027	308.521
3153.352	0.64814	42.732	512.784	214.028	41.738	298.756
3211.748	0.63405	41.868	502.416	213.252	42.445	289.164
3270.143	0.61996	41.004	492.048	212.304	43.147	279.744
3328.538	0.60587	40.14	481.68	211.184	43.843	270.496
3386.934	0.59178	39.276	471.312	209.892	44.534	261.42
3445.329	0.57769	38.412	460.944	208.427	45.217	252.517
3503.725	0.5636	37.548	450.576	206.79	45.895	243.786
3562.12	0.54951	36.684	440.208	204.981	46.565	235.227
3620.515	0.53542	35.82	429.84	202.999	47.227	226.841
3678.911	0.52133	34.956	419.472	200.845	47.88	218.627
3737.306	0.50724	34.092	409.104	198.518	48.525	210.586
3795.702	0.49315	33.228	398.736	196.02	49.16	202.716
3854.097	0.47906	32.364	388.368	193.349	49.785	195.019
3912.492	0.46497	31.5	378	190.505	50.398	187.495
3970.888	0.45088	30.636	367.632	187.49	50.999	180.142
4029.283	0.43679	29.772	357.264	184.302	51.587	172.962
4087.679	0.4227	28.908	346.896	180.941	52.16	165.955
4146.074	0.40861	28.043	336.516	177.409	52.719	159.107
4204.47	0.39452	27.179	326.148	173.704	53.259	152.444
4262.865	0.38043	26.315	315.78	169.826	53.78	145.954
4321.26	0.36634	25.451	305.412	165.777	54.28	139.635
4379.656	0.35225	24.587	295.044	161.555	54.756	133.489
4438.051	0.33816	23.723	284.676	157.16	55.207	127.516
4496.447	0.32407	22.859	274.308	152.594	55.629	121.714
4554.842	0.30998	21.995	263.94	147.855	56.018	116.085
4613.237	0.29589	21.131	253.572	142.944	56.372	110.628
4671.633	0.2818	20.267	243.204	137.86	56.685	105.344
4730.028	0.26771	19.403	232.836	132.604	56.952	100.232
4788.424	0.25362	18.539	222.468	127.176	57.166	95.292
4846.819	0.23953	17.675	212.1	121.575	57.32	90.525
4905.214	0.22544	16.811	201.732	115.802	57.404	85.93
4963.61	0.21135	15.947	191.364	109.857	57.407	81.507
5022.005	0.19726	15.083	180.996	103.74	57.316	77.256
5080.401	0.18317	14.219	170.628	97.45	57.113	73.178
5138.796	0.16908	13.355	160.26	90.988	56.775	69.272
5197.191	0.15499	12.491	149.892	84.353	56.276	65.539
5255.587	0.1409	11.627	139.524	77.546	55.579	61.978
5313.982	0.12681	10.762	129.144	70.567	54.642	58.577
5372.378	0.11272	9.898	118.776	63.416	53.391	55.36
5430.773	0.09863	9.034	108.408	56.092	51.742	52.316
5489.169	0.08454	8.17	98.04	48.596	49.568	49.444
5547.564	0.07045	7.306	87.672	40.927	46.682	46.745
5605.959	0.05636	6.442	77.304	33.086	42.8	44.218
5664.355	0.04227	5.578	66.936	25.073	37.458	41.863
5722.75	0.02818	4.714	56.568	16.888	29.854	39.68
5781.146	0.01409	3.85	46.2	8.53	18.463	37.67
5839.541	0	2.986	35.832	0	0	35.832

Click to download 10V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	1.33	73.983	887.796	0	0	887.796
48.832	1.3167	73.255	879.06	6.733	0.766	872.327
97.664	1.3034	72.527	870.324	13.33	1.532	856.994
146.496	1.2901	71.8	861.6	19.791	2.297	841.809
195.328	1.2768	71.072	852.864	26.117	3.062	826.747
244.16	1.2635	70.344	844.128	32.306	3.827	811.822
292.992	1.2502	69.616	835.392	38.359	4.592	797.033
341.824	1.2369	68.889	826.668	44.276	5.356	782.392
390.656	1.2236	68.161	817.932	50.057	6.12	767.875
439.488	1.2103	67.433	809.196	55.702	6.884	753.494
488.32	1.197	66.705	800.46	61.211	7.647	739.249
537.151	1.1837	65.978	791.736	66.584	8.41	725.152
585.983	1.1704	65.25	783	71.82	9.172	711.18
634.815	1.1571	64.522	774.264	76.921	9.935	697.343
683.647	1.1438	63.794	765.528	81.886	10.697	683.642
732.479	1.1305	63.066	756.792	86.715	11.458	670.077
781.311	1.1172	62.339	748.068	91.408	12.219	656.66
830.143	1.1039	61.611	739.332	95.965	12.98	643.367
878.975	1.0906	60.883	730.596	100.385	13.74	630.211
927.807	1.0773	60.155	721.86	104.67	14.5	617.19
976.639	1.064	59.428	713.136	108.819	15.259	604.317
1025.471	1.0507	58.7	704.4	112.832	16.018	591.568
1074.303	1.0374	57.972	695.664	116.708	16.776	578.956
1123.135	1.0241	57.244	686.928	120.449	17.534	566.479
1171.967	1.0108	56.517	678.204	124.054	18.292	554.15
1220.799	0.9975	55.789	669.468	127.522	19.048	541.946
1269.631	0.9842	55.061	660.732	130.855	19.805	529.877
1318.463	0.9709	54.333	651.996	134.051	20.56	517.945
1367.295	0.9576	53.605	643.26	137.112	21.315	506.148
1416.127	0.9443	52.878	634.536	140.036	22.069	494.5
1464.959	0.931	52.15	625.8	142.825	22.823	482.975
1513.79	0.9177	51.422	617.064	145.477	23.576	471.587
1562.622	0.9044	50.694	608.328	147.994	24.328	460.334
1611.454	0.8911	49.967	599.604	150.374	25.079	449.23
1660.286	0.8778	49.239	590.868	152.618	25.829	438.25
1709.118	0.8645	48.511	582.132	154.727	26.579	427.405
1757.95	0.8512	47.783	573.396	156.699	27.328	416.697
1806.782	0.8379	47.056	564.672	158.536	28.076	406.136
1855.614	0.8246	46.328	555.936	160.236	28.823	395.7
1904.446	0.8113	45.6	547.2	161.8	29.569	385.4
1953.278	0.798	44.872	538.464	163.228	30.314	375.236
2002.11	0.7847	44.144	529.728	164.521	31.058	365.207
2050.942	0.7714	43.417	521.004	165.677	31.8	355.327
2099.774	0.7581	42.689	512.268	166.697	32.541	345.571
2148.606	0.7448	41.961	503.532	167.581	33.281	335.951
2197.438	0.7315	41.233	494.796	168.329	34.02	326.467
2246.27	0.7182	40.506	486.072	168.941	34.756	317.131
2295.102	0.7049	39.778	477.336	169.417	35.492	307.919
2343.934	0.6916	39.05	468.6	169.758	36.227	298.842
2392.766	0.6783	38.322	459.864	169.962	36.959	289.902
2441.598	0.665	37.595	451.14	170.03	37.689	281.11
2490.429	0.6517	36.867	442.404	169.961	38.418	272.443
2539.261	0.6384	36.139	433.668	169.757	39.144	263.911
2588.093	0.6251	35.411	424.932	169.417	39.869	255.515
2636.925	0.6118	34.683	416.196	168.941	40.592	247.255
2685.757	0.5985	33.956	407.472	168.329	41.311	239.143
2734.589	0.5852	33.228	398.736	167.581	42.028	231.155
2783.421	0.5719	32.5	390	166.697	42.743	223.303
2832.253	0.5586	31.772	381.264	165.677	43.455	215.587
2881.085	0.5453	31.045	372.54	164.521	44.162	208.019
2929.917	0.532	30.317	363.804	163.228	44.867	200.576
2978.749	0.5187	29.589	355.068	161.8	45.569	193.268
3027.581	0.5054	28.861	346.332	160.236	46.267	186.096
3076.413	0.4921	28.133	337.596	158.536	46.96	179.06
3125.245	0.4788	27.406	328.872	156.699	47.647	172.173
3174.077	0.4655	26.678	320.136	154.727	48.332	165.409
3222.909	0.4522	25.95	311.4	152.619	49.011	158.781
3271.741	0.4389	25.222	302.664	150.374	49.683	152.29
3320.573	0.4256	24.495	293.94	147.994	50.348	145.946
3369.405	0.4123	23.767	285.204	145.477	51.008	139.727
3418.237	0.399	23.039	276.468	142.825	51.661	133.643
3467.068	0.3857	22.311	267.732	140.036	52.305	127.696
3515.9	0.3724	21.584	259.008	137.112	52.937	121.896
3564.732	0.3591	20.856	250.272	134.051	53.562	116.221
3613.564	0.3458	20.128	241.536	130.855	54.176	110.681
3662.396	0.3325	19.4	232.8	127.522	54.777	105.278
3711.228	0.3192	18.672	224.064	124.054	55.365	100.01
3760.06	0.3059	17.945	215.34	120.449	55.934	94.891
3808.892	0.2926	17.217	206.604	116.708	56.489	89.896
3857.724	0.2793	16.489	197.868	112.832	57.024	85.036
3906.556	0.266	15.761	189.132	108.819	57.536	80.313
3955.388	0.2527	15.034	180.408	104.67	58.018	75.738
4004.22	0.2394	14.306	171.672	100.385	58.475	71.287
4053.052	0.2261	13.578	162.936	95.965	58.897	66.971
4101.884	0.2128	12.85	154.2	91.408	59.279	62.792
4150.716	0.1995	12.123	145.476	86.715	59.608	58.761
4199.548	0.1862	11.395	136.74	81.886	59.884	54.854
4248.38	0.1729	10.667	128.004	76.921	60.093	51.083
4297.212	0.1596	9.939	119.268	71.82	60.217	47.448
4346.044	0.1463	9.211	110.532	66.584	60.24	43.948
4394.876	0.133	8.484	101.808	61.211	60.124	40.597
4443.707	0.1197	7.756	93.072	55.702	59.848	37.37
4492.539	0.1064	7.028	84.336	50.057	59.354	34.279
4541.371	0.0931	6.3	75.6	44.276	58.566	31.324
4590.203	0.0798	5.573	66.876	38.359	57.358	28.517
4639.035	0.0665	4.845	58.14	32.306	55.566	25.834
4687.867	0.0532	4.117	49.404	26.117	52.864	23.287
4736.699	0.0399	3.389	40.668	19.791	48.665	20.877
4785.531	0.0266	2.662	31.944	13.33	41.729	18.614
4834.363	0.0133	1.934	23.208	6.733	29.012	16.475
4883.195	0	1.206	14.472	0	0	14.472

Click to download 8V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	1.116	61.407	736.884	0	0	736.884
38.727	1.10484	60.807	729.684	4.481	0.614	725.203
77.454	1.09368	60.207	722.484	8.871	1.228	713.613
116.182	1.08252	59.607	715.284	13.171	1.841	702.113
154.909	1.07136	59.007	708.084	17.38	2.455	690.704
193.636	1.0602	58.407	700.884	21.498	3.067	679.386
232.363	1.04904	57.807	693.684	25.526	3.68	668.158
271.091	1.03788	57.207	686.484	29.464	4.292	657.02
309.818	1.02672	56.606	679.272	33.311	4.904	645.961
348.545	1.01556	56.006	672.072	37.067	5.515	635.005
387.272	1.0044	55.406	664.872	40.733	6.126	624.139
426	0.99324	54.806	657.672	44.309	6.737	613.363
464.727	0.98208	54.206	650.472	47.794	7.348	602.678
503.454	0.97092	53.606	643.272	51.188	7.957	592.084
542.181	0.95976	53.006	636.072	54.492	8.567	581.58
580.908	0.9486	52.406	628.872	57.706	9.176	571.166
619.636	0.93744	51.806	621.672	60.829	9.785	560.843
658.363	0.92628	51.206	614.472	63.861	10.393	550.611
697.09	0.91512	50.606	607.272	66.803	11.001	540.469
735.817	0.90396	50.006	600.072	69.654	11.608	530.418
774.545	0.8928	49.406	592.872	72.415	12.214	520.457
813.272	0.88164	48.806	585.672	75.085	12.82	510.587
851.999	0.87048	48.205	578.46	77.665	13.426	500.795
890.726	0.85932	47.605	571.26	80.154	14.031	491.106
929.454	0.84816	47.005	564.06	82.553	14.635	481.507
968.181	0.837	46.405	556.86	84.861	15.239	471.999
1006.908	0.82584	45.805	549.66	87.079	15.842	462.581
1045.635	0.81468	45.205	542.46	89.206	16.445	453.254
1084.362	0.80352	44.605	535.26	91.243	17.046	444.017
1123.09	0.79236	44.005	528.06	93.189	17.647	434.871
1161.817	0.7812	43.405	520.86	95.045	18.248	425.815
1200.544	0.77004	42.805	513.66	96.81	18.847	416.85
1239.271	0.75888	42.205	506.46	98.485	19.446	407.975
1277.999	0.74772	41.605	499.26	100.069	20.043	399.191
1316.726	0.73656	41.005	492.06	101.562	20.64	390.498
1355.453	0.7254	40.405	484.86	102.965	21.236	381.895
1394.18	0.71424	39.804	477.648	104.278	21.832	373.37
1432.908	0.70308	39.204	470.448	105.5	22.425	364.948
1471.635	0.69192	38.604	463.248	106.631	23.018	356.617
1510.362	0.68076	38.004	456.048	107.672	23.61	348.376
1549.089	0.6696	37.404	448.848	108.623	24.2	340.225
1587.816	0.65844	36.804	441.648	109.483	24.79	332.165
1626.544	0.64728	36.204	434.448	110.252	25.377	324.196
1665.271	0.63612	35.604	427.248	110.931	25.964	316.317
1703.998	0.62496	35.004	420.048	111.519	26.549	308.529
1742.725	0.6138	34.404	412.848	112.017	27.133	300.831
1781.453	0.60264	33.804	405.648	112.424	27.715	293.224
1820.18	0.59148	33.204	398.448	112.741	28.295	285.707
1858.907	0.58032	32.604	391.248	112.968	28.874	278.28
1897.634	0.56916	32.004	384.048	113.103	29.45	270.945
1936.362	0.558	31.404	376.848	113.149	30.025	263.699
1975.089	0.54684	30.803	369.636	113.103	30.598	256.533
2013.816	0.53568	30.203	362.436	112.968	31.169	249.468
2052.543	0.52452	29.603	355.236	112.741	31.737	242.495
2091.27	0.51336	29.003	348.036	112.424	32.302	235.612
2129.998	0.5022	28.403	340.836	112.017	32.865	228.819
2168.725	0.49104	27.803	333.636	111.519	33.425	222.117
2207.452	0.47988	27.203	326.436	110.931	33.982	215.505
2246.179	0.46872	26.603	319.236	110.252	34.536	208.984
2284.907	0.45756	26.003	312.036	109.483	35.087	202.553
2323.634	0.4464	25.403	304.836	108.623	35.633	196.213
2362.361	0.43524	24.803	297.636	107.672	36.176	189.964
2401.088	0.42408	24.203	290.436	106.631	36.714	183.805
2439.815	0.41292	23.603	283.236	105.5	37.248	177.736
2478.543	0.40176	23.003	276.036	104.278	37.777	171.758
2517.27	0.3906	22.402	268.824	102.965	38.302	165.859
2555.997	0.37944	21.802	261.624	101.562	38.82	160.062
2594.724	0.36828	21.202	254.424	100.069	39.332	154.355
2633.452	0.35712	20.602	247.224	98.485	39.836	148.739
2672.179	0.34596	20.002	240.024	96.81	40.333	143.214
2710.906	0.3348	19.402	232.824	95.045	40.823	137.779
2749.633	0.32364	18.802	225.624	93.189	41.303	132.435
2788.361	0.31248	18.202	218.424	91.243	41.773	127.181
2827.088	0.30132	17.602	211.224	89.206	42.233	122.018
2865.815	0.29016	17.002	204.024	87.079	42.681	116.945
2904.542	0.279	16.402	196.824	84.861	43.115	111.963
2943.269	0.26784	15.802	189.624	82.553	43.535	107.071
2981.997	0.25668	15.202	182.424	80.154	43.938	102.27
3020.724	0.24552	14.602	175.224	77.665	44.323	97.559
3059.451	0.23436	14.001	168.012	75.085	44.69	92.927
3098.178	0.2232	13.401	160.812	72.415	45.031	88.397
3136.906	0.21204	12.801	153.612	69.654	45.344	83.958
3175.633	0.20088	12.201	146.412	66.803	45.627	79.609
3214.36	0.18972	11.601	139.212	63.861	45.873	75.351
3253.087	0.17856	11.001	132.012	60.829	46.078	71.183
3291.815	0.1674	10.401	124.812	57.706	46.234	67.106
3330.542	0.15624	9.801	117.612	54.492	46.332	63.12
3369.269	0.14508	9.201	110.412	51.188	46.361	59.224
3407.996	0.13392	8.601	103.212	47.794	46.307	55.418
3446.723	0.12276	8.001	96.012	44.309	46.149	51.703
3485.451	0.1116	7.401	88.812	40.734	45.865	48.078
3524.178	0.10044	6.801	81.612	37.067	45.419	44.545
3562.905	0.08928	6.201	74.412	33.311	44.766	41.101
3601.632	0.07812	5.6	67.2	29.464	43.845	37.736
3640.36	0.06696	5	60	25.526	42.543	34.474
3679.087	0.0558	4.4	52.8	21.498	40.716	31.302
3717.814	0.04464	3.8	45.6	17.38	38.114	28.22
3756.541	0.03348	3.2	38.4	13.17	34.297	25.23
3795.269	0.02232	2.6	31.2	8.871	28.433	22.329
3833.996	0.01116	2	24	4.481	18.671	19.519
3872.723	0	1.4	16.8	0	0	16.8

Click to download 6V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.866	47.154	565.848	0	0	565.848
28.764	0.85734	46.697	560.364	2.582	0.461	557.782
57.528	0.84868	46.24	554.88	5.113	0.921	549.767
86.292	0.84002	45.783	549.396	7.591	1.382	541.805
115.056	0.83136	45.326	543.912	10.017	1.842	533.895
143.82	0.8227	44.869	538.428	12.391	2.301	526.037
172.584	0.81404	44.412	532.944	14.712	2.761	518.232
201.348	0.80538	43.956	527.472	16.982	3.22	510.49
230.111	0.79672	43.499	521.988	19.199	3.678	502.789
258.875	0.78806	43.042	516.504	21.364	4.136	495.14
287.639	0.7794	42.585	511.02	23.477	4.594	487.543
316.403	0.77074	42.128	505.536	25.537	5.051	479.999
345.167	0.76208	41.671	500.052	27.546	5.509	472.506
373.931	0.75342	41.214	494.568	29.502	5.965	465.066
402.695	0.74476	40.757	489.084	31.407	6.422	457.677
431.459	0.7361	40.3	483.6	33.259	6.877	450.341
460.223	0.72744	39.843	478.116	35.059	7.333	443.057
488.987	0.71878	39.386	472.632	36.806	7.787	435.826
517.751	0.71012	38.929	467.148	38.502	8.242	428.646
546.515	0.70146	38.473	461.676	40.145	8.695	421.531
575.279	0.6928	38.016	456.192	41.736	9.149	414.456
604.043	0.68414	37.559	450.708	43.275	9.602	407.433
632.806	0.67548	37.102	445.224	44.762	10.054	400.462
661.57	0.66682	36.645	439.74	46.197	10.506	393.543
690.334	0.65816	36.188	434.256	47.579	10.956	386.677
719.098	0.6495	35.731	428.772	48.91	11.407	379.862
747.862	0.64084	35.274	423.288	50.188	11.857	373.1
776.626	0.63218	34.817	417.804	51.414	12.306	366.39
805.39	0.62352	34.36	412.32	52.588	12.754	359.732
834.154	0.61486	33.903	406.836	53.709	13.202	353.127
862.918	0.6062	33.446	401.352	54.779	13.649	346.573
891.682	0.59754	32.989	395.868	55.796	14.095	340.072
920.446	0.58888	32.533	390.396	56.761	14.539	333.635
949.21	0.58022	32.076	384.912	57.674	14.984	327.238
977.974	0.57156	31.619	379.428	58.535	15.427	320.893
1006.738	0.5629	31.162	373.944	59.344	15.87	314.6
1035.501	0.55424	30.705	368.46	60.1	16.311	308.36
1064.265	0.54558	30.248	362.976	60.805	16.752	302.171
1093.029	0.53692	29.791	357.492	61.457	17.191	296.035
1121.793	0.52826	29.334	352.008	62.057	17.629	289.951
1150.557	0.5196	28.877	346.524	62.605	18.067	283.919
1179.321	0.51094	28.42	341.04	63.1	18.502	277.94
1208.085	0.50228	27.963	335.556	63.544	18.937	272.012
1236.849	0.49362	27.506	330.072	63.935	19.37	266.137
1265.613	0.48496	27.05	324.6	64.274	19.801	260.326
1294.377	0.4763	26.593	319.116	64.561	20.231	254.555
1323.141	0.46764	26.136	313.632	64.796	20.66	248.836
1351.905	0.45898	25.679	308.148	64.978	21.087	243.17
1380.669	0.45032	25.222	302.664	65.109	21.512	237.555
1409.433	0.44166	24.765	297.18	65.187	21.935	231.993
1438.197	0.433	24.308	291.696	65.213	22.356	226.483
1466.96	0.42434	23.851	286.212	65.187	22.776	221.025
1495.724	0.41568	23.394	280.728	65.109	23.193	215.619
1524.488	0.40702	22.937	275.244	64.978	23.607	210.266
1553.252	0.39836	22.48	269.76	64.796	24.02	204.964
1582.016	0.3897	22.023	264.276	64.561	24.429	199.715
1610.78	0.38104	21.566	258.792	64.274	24.836	194.518
1639.544	0.37238	21.11	253.32	63.935	25.239	189.385
1668.308	0.36372	20.653	247.836	63.544	25.64	184.292
1697.072	0.35506	20.196	242.352	63.1	26.037	179.252
1725.836	0.3464	19.739	236.868	62.605	26.43	174.263
1754.6	0.33774	19.282	231.384	62.057	26.82	169.327
1783.364	0.32908	18.825	225.9	61.457	27.205	164.443
1812.128	0.32042	18.368	220.416	60.805	27.586	159.611
1840.892	0.31176	17.911	214.932	60.1	27.962	154.832
1869.655	0.3031	17.454	209.448	59.344	28.334	150.104
1898.419	0.29444	16.997	203.964	58.535	28.699	145.429
1927.183	0.28578	16.54	198.48	57.674	29.058	140.806
1955.947	0.27712	16.083	192.996	56.761	29.41	136.235
1984.711	0.26846	15.627	187.524	55.796	29.754	131.728
2013.475	0.2598	15.17	182.04	54.779	30.092	127.261
2042.239	0.25114	14.713	176.556	53.709	30.42	122.847
2071.003	0.24248	14.256	171.072	52.588	30.74	118.484
2099.767	0.23382	13.799	165.588	51.414	31.049	114.174
2128.531	0.22516	13.342	160.104	50.188	31.347	109.916
2157.295	0.2165	12.885	154.62	48.91	31.632	105.71
2186.059	0.20784	12.428	149.136	47.579	31.903	101.557
2214.823	0.19918	11.971	143.652	46.197	32.159	97.455
2243.587	0.19052	11.514	138.168	44.762	32.397	93.406
2272.35	0.18186	11.057	132.684	43.275	32.615	89.409
2301.114	0.1732	10.6	127.2	41.736	32.811	85.464
2329.878	0.16454	10.143	121.716	40.145	32.983	81.571
2358.642	0.15588	9.687	116.244	38.502	33.122	77.742
2387.406	0.14722	9.23	110.76	36.806	33.23	73.954
2416.17	0.13856	8.773	105.276	35.059	33.302	70.217
2444.934	0.1299	8.316	99.792	33.259	33.328	66.533
2473.698	0.12124	7.859	94.308	31.407	33.303	62.901
2502.462	0.11258	7.402	88.824	29.502	33.214	59.322
2531.226	0.10392	6.945	83.34	27.546	33.053	55.794
2559.99	0.09526	6.488	77.856	25.537	32.8	52.319
2588.754	0.0866	6.031	72.372	23.477	32.439	48.895
2617.518	0.07794	5.574	66.888	21.364	31.94	45.524
2646.282	0.06928	5.117	61.404	19.199	31.267	42.205
2675.045	0.06062	4.66	55.92	16.981	30.367	38.939
2703.809	0.05196	4.204	50.448	14.712	29.163	35.736
2732.573	0.0433	3.747	44.964	12.39	27.555	32.574
2761.337	0.03464	3.29	39.48	10.017	25.372	29.463
2790.101	0.02598	2.833	33.996	7.591	22.329	26.405
2818.865	0.01732	2.376	28.512	5.113	17.933	23.399
2847.629	0.00866	1.919	23.028	2.582	11.212	20.446
2876.393	0	1.462	17.544	0	0	17.544

Click to download 4V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.575	32.039	384.468	0	0	384.468
18.686	0.56925	31.732	380.784	1.114	0.293	379.67
37.373	0.5635	31.425	377.1	2.205	0.585	374.895
56.059	0.55775	31.118	373.416	3.274	0.877	370.142
74.746	0.552	30.81	369.72	4.321	1.169	365.399
93.432	0.54625	30.503	366.036	5.345	1.46	360.691
112.118	0.5405	30.196	362.352	6.346	1.751	356.006
130.805	0.53475	29.889	358.668	7.325	2.042	351.343
149.491	0.529	29.582	354.984	8.281	2.333	346.703
168.178	0.52325	29.275	351.3	9.215	2.623	342.085
186.864	0.5175	28.968	347.616	10.127	2.913	337.489
205.55	0.51175	28.66	343.92	11.015	3.203	332.905
224.237	0.506	28.353	340.236	11.882	3.492	328.354
242.923	0.50025	28.046	336.552	12.726	3.781	323.826
261.609	0.4945	27.739	332.868	13.547	4.07	319.321
280.296	0.48875	27.432	329.184	14.346	4.358	314.838
298.982	0.483	27.125	325.5	15.122	4.646	310.378
317.669	0.47725	26.817	321.804	15.876	4.933	305.928
336.355	0.4715	26.51	318.12	16.608	5.221	301.512
355.041	0.46575	26.203	314.436	17.316	5.507	297.12
373.728	0.46	25.896	310.752	18.003	5.793	292.749
392.414	0.45425	25.589	307.068	18.667	6.079	288.401
411.101	0.4485	25.282	303.384	19.308	6.364	284.076
429.787	0.44275	24.975	299.7	19.927	6.649	279.773
448.473	0.437	24.667	296.004	20.523	6.933	275.481
467.16	0.43125	24.36	292.32	21.097	7.217	271.223
485.846	0.4255	24.053	288.636	21.648	7.5	266.988
504.533	0.41975	23.746	284.952	22.177	7.783	262.775
523.219	0.414	23.439	281.268	22.684	8.065	258.584
541.905	0.40825	23.132	277.584	23.167	8.346	254.417
560.592	0.4025	22.825	273.9	23.629	8.627	250.271
579.278	0.39675	22.517	270.204	24.068	8.907	246.136
597.964	0.391	22.21	266.52	24.484	9.187	242.036
616.651	0.38525	21.903	262.836	24.878	9.465	237.958
635.337	0.3795	21.596	259.152	25.249	9.743	233.903
654.024	0.37375	21.289	255.468	25.598	10.02	229.87
672.71	0.368	20.982	251.784	25.924	10.296	225.86
691.396	0.36225	20.674	248.088	26.228	10.572	221.86
710.083	0.3565	20.367	244.404	26.509	10.846	217.895
728.769	0.35075	20.06	240.72	26.768	11.12	213.952
747.456	0.345	19.753	237.036	27.004	11.392	210.032
766.142	0.33925	19.446	233.352	27.218	11.664	206.134
784.828	0.3335	19.139	229.668	27.409	11.934	202.259
803.515	0.32775	18.832	225.984	27.578	12.204	198.406
822.201	0.322	18.524	222.288	27.724	12.472	194.564
840.888	0.31625	18.217	218.604	27.848	12.739	190.756
859.574	0.3105	17.91	214.92	27.949	13.004	186.971
878.26	0.30475	17.603	211.236	28.028	13.269	183.208
896.947	0.299	17.296	207.552	28.084	13.531	179.468
915.633	0.29325	16.989	203.868	28.118	13.792	175.75
934.32	0.2875	16.682	200.184	28.13	14.052	172.054
953.006	0.28175	16.374	196.488	28.118	14.31	168.37
971.692	0.276	16.067	192.804	28.084	14.566	164.72
990.379	0.27025	15.76	189.12	28.028	14.82	161.092
1009.065	0.2645	15.453	185.436	27.949	15.072	157.487
1027.751	0.25875	15.146	181.752	27.848	15.322	153.904
1046.438	0.253	14.839	178.068	27.724	15.569	150.344
1065.124	0.24725	14.531	174.372	27.578	15.816	146.794
1083.811	0.2415	14.224	170.688	27.409	16.058	143.279
1102.497	0.23575	13.917	167.004	27.218	16.298	139.786
1121.183	0.23	13.61	163.32	27.004	16.534	136.316
1139.87	0.22425	13.303	159.636	26.768	16.768	132.868
1158.556	0.2185	12.996	155.952	26.509	16.998	129.443
1177.243	0.21275	12.689	152.268	26.228	17.225	126.04
1195.929	0.207	12.381	148.572	25.924	17.449	122.648
1214.615	0.20125	12.074	144.888	25.598	17.667	119.29
1233.302	0.1955	11.767	141.204	25.249	17.881	115.955
1251.988	0.18975	11.46	137.52	24.878	18.09	112.642
1270.675	0.184	11.153	133.836	24.484	18.294	109.352
1289.361	0.17825	10.846	130.152	24.068	18.492	106.084
1308.047	0.1725	10.539	126.468	23.629	18.684	102.839
1326.734	0.16675	10.231	122.772	23.167	18.87	99.605
1345.42	0.161	9.924	119.088	22.684	19.048	96.404
1364.106	0.15525	9.617	115.404	22.177	19.217	93.227
1382.793	0.1495	9.31	111.72	21.648	19.377	90.072
1401.479	0.14375	9.003	108.036	21.097	19.528	86.939
1420.166	0.138	8.696	104.352	20.523	19.667	83.829
1438.852	0.13225	8.388	100.656	19.927	19.797	80.729
1457.538	0.1265	8.081	96.972	19.308	19.911	77.664
1476.225	0.12075	7.774	93.288	18.667	20.01	74.621
1494.911	0.115	7.467	89.604	18.003	20.092	71.601
1513.598	0.10925	7.16	85.92	17.317	20.155	68.603
1532.284	0.1035	6.853	82.236	16.608	20.196	65.628
1550.97	0.09775	6.546	78.552	15.876	20.211	62.676
1569.657	0.092	6.238	74.856	15.122	20.201	59.734
1588.343	0.08625	5.931	71.172	14.346	20.157	56.826
1607.03	0.0805	5.624	67.488	13.547	20.073	53.941
1625.716	0.07475	5.317	63.804	12.726	19.945	51.078
1644.402	0.069	5.01	60.12	11.882	19.764	48.238
1663.089	0.06325	4.703	56.436	11.016	19.519	45.42
1681.775	0.0575	4.396	52.752	10.127	19.197	42.625
1700.461	0.05175	4.088	49.056	9.215	18.785	39.841
1719.148	0.046	3.781	45.372	8.281	18.251	37.091
1737.834	0.04025	3.474	41.688	7.325	17.571	34.363
1756.521	0.0345	3.167	38.004	6.346	16.698	31.658
1775.207	0.02875	2.86	34.32	5.345	15.574	28.975
1793.893	0.023	2.553	30.636	4.321	14.104	26.315
1812.58	0.01725	2.245	26.94	3.274	12.153	23.666
1831.266	0.0115	1.938	23.256	2.205	9.481	21.051
1849.953	0.00575	1.631	19.572	1.114	5.692	18.458
1868.639	0	1.324	15.888	0	0	15.888

Click to download peak power test data (.CSV)

Click to expand Peak Power Test Data

Time (s)	Current (A)	Power Out (W)
0.032	42.04	232.278
0.418	40.3	231.548
0.792	39.21	230.291
1.197	39.04	230.753
1.603	38.87	229.497
1.977	38.73	228.327
2.381	38.64	228.004
2.786	38.61	228.327
3.159	38.41	226.759
3.562	38.35	226.823
3.938	38.19	225.088
4.341	38.08	225.566
4.746	38.01	225.477
5.121	38.04	225.177
5.529	38	225.04
5.884	37.97	225.163
6.234	37.9	224.534
6.583	37.97	224.085
6.933	37.9	224.07
7.309	37.82	224.085
7.657	37.72	224.399
8.006	37.68	222.979
8.356	37.59	221.482
8.705	37.57	223.458
9.08	37.52	220.854
9.429	37.41	221.408
9.779	37.31	221.796
10.128	37.27	221.796
10.477	37.32	222.813
10.853	37.31	220.965
11.202	37.18	220.613
11.551	37.26	221.722
11.901	37.23	220.78
12.25	37.18	219.765
12.626	37.19	219.545
12.974	37.06	218.486
13.324	37.02	217.831
13.673	37	218.771
14.022	37.04	218.677
14.372	36.97	219.283
14.748	36.88	219.231
15.097	36.83	217.495
15.447	36.79	218.268
15.85	36.91	217.422
16.199	36.71	215.853
16.549	36.48	217.833
16.898	36.57	216.528
17.247	36.57	216.722
17.597	36.49	215.637
17.963	36.42	216.625
18.321	36.49	216.384
18.671	36.41	213.728
19.02	36.3	215.298
19.37	36.27	213.842
19.73	36.26	213.8
20.095	36.11	214.769
20.444	36.1	214.956
20.793	36.17	215.657
21.143	36.25	215.199
21.492	36.19	212.858
21.868	36.09	212.23
22.27	35.91	212.442
22.637	36.02	212.402
22.997	35.84	212.269
23.399	35.88	211.845
23.747	35.79	211.532
24.096	35.7	212.442
24.447	35.7	211.5
24.795	35.69	212.828
25.172	35.75	211.5
25.521	35.82	211.775
25.871	35.78	211.955
26.218	35.79	211.987
26.568	35.75	213.426
26.944	35.89	210.66
27.295	35.8	210.59
27.697	35.69	212.159
28.046	35.74	211.673
28.395	35.61	210.974
28.745	35.64	211.082
29.093	35.68	211.461
29.442	35.68	212.199
29.819	35.66	211.288
30.168	35.66	211.673
30.518	35.75	212.686
30.865	35.76	211.916
31.217	35.75	212.584
31.564	35.76	213.142
31.914	35.83	212.402
32.291	35.78	211.641
32.693	35.68	210.871
33.061	35.71	210.731
33.419	35.64	210.557
33.768	35.55	209.648
34.145	35.42	210.453
34.493	35.47	210.068
34.846	35.56	210.206
35.245	35.47	211.641
35.594	35.46	208.916
35.944	35.4	210.767
36.293	35.5	208.671
36.642	35.4	208.777
37.02	35.29	208.741
37.367	35.22	209.16
37.717	35.26	209.439
38.066	35.22	209.544
38.417	35.18	208.005
38.819	35.19	208.428
39.168	35.08	207.483
39.517	35.06	209.718
39.866	35.19	208.951
40.242	35.13	209.788
40.591	35.18	208.079
40.94	35.08	208.568
41.289	35.1	207.976
41.639	35.06	207.031
41.988	34.99	206.294
42.366	34.96	206.363
42.713	34.87	205.951
43.062	34.78	205.46
43.411	34.66	205.392
43.761	34.59	205.951
44.11	34.72	205.814
44.486	34.65	205.597
44.835	34.56	206.363
45.185	34.61	204.161
45.587	34.52	204.722
45.936	34.52	203.999
46.286	34.48	205.037
46.634	34.44	205.078
47.011	34.47	204.067
47.359	34.43	203.261
47.709	34.31	202.812
48.058	34.28	203.957
48.409	34.15	205.556
48.756	34.14	203.889
49.107	34.3	203.795
49.483	34.25	202.879
49.884	34.23	203.575
50.251	34.26	204.722
50.611	34.34	203.236
50.961	34.24	203.372
51.309	34.18	203.711
51.686	34.1	202.812
52.089	34.07	201.757
52.454	33.95	201.623
52.814	33.94	202.251
53.163	34.01	201.623
53.513	33.98	201.668
53.888	33.94	202.97
54.239	33.9	202.922
54.641	34.01	200.928
54.989	33.9	200.547
55.337	33.88	201.062
55.687	33.86	201.062
56.036	33.81	201.085
56.385	33.88	202.139
56.763	33.91	202.633
57.111	33.85	200.681
57.461	33.85	202.565
57.81	33.86	201.04
58.16	33.73	201.242
58.509	33.72	200.413
58.886	33.64	200.995
59.287	33.59	200.794
59.653	33.62	200.186
60.012	33.63	202.004
60.361	33.72	201.108
60.713	33.71	200.253
61.087	33.73	201.556
61.437	33.71	201.421
61.785	33.64	201.129
62.134	33.59	200.434
62.484	33.58	199.624
62.859	33.54	200.3
63.208	33.5	200.701
63.558	33.52	199.491
63.908	33.49	200.119
64.309	33.48	198.995
64.66	33.52	199.111
65.009	33.54	201.376
65.359	33.57	199.225
65.734	33.56	199.177
66.097	33.4	198.73
66.487	33.38	199.805
66.851	33.3	198.615
67.211	33.35	198.796
67.56	33.31	198.995
67.91	33.35	198.929
68.286	33.38	196.963
68.635	33.21	197.738
68.985	33.34	198.73
69.335	33.24	199.044
69.736	33.42	196.816
70.085	33.15	198.796
70.435	33.08	197.986
70.784	33.16	198.845
71.16	33.16	196.86
71.509	33.16	196.912
71.859	33.03	196.153
72.208	33.01	196.336
72.558	32.92	198.367
72.905	32.97	195.786
73.283	33.07	196.022
73.685	32.94	198.367
74.051	32.89	195.798
74.412	32.93	196.231
74.759	32.81	194.15
75.109	32.77	195.721
75.486	32.79	194.844
75.889	32.82	196.219
76.254	32.88	196.088
76.613	32.87	197.738
76.963	33	196.284
77.312	33.01	197.029
77.688	32.89	195.158
78.038	32.89	196.231
78.439	32.85	194.898
78.788	32.85	196.715
79.137	32.79	195.277
79.487	32.78	194.649
79.837	32.81	196.415
80.186	32.8	194.963
80.536	32.84	194.14
80.901	32.69	196.178
81.26	32.76	194.649
81.61	32.7	195.277
81.959	32.72	193.772
82.309	32.62	193.53
82.684	32.65	196.939
83.033	32.86	196.401
83.383	32.72	195.656
83.732	32.73	194.714
84.081	32.7	194.973
84.484	32.66	195.733
84.833	32.69	195.103
85.181	32.65	196.808
85.559	32.71	194.768
85.908	32.64	193.651
86.259	32.62	197.528
86.606	32.97	192.748
86.957	32.49	193.836
87.304	32.39	194.345
87.656	32.52	193.956
88.031	32.36	192.829
88.434	32.26	192.201
88.799	32.35	191.951
89.158	32.34	192.58
89.508	32.28	192.894
89.858	32.25	193.079
90.234	32.25	192.886
90.583	32.16	193.337
90.984	32.36	193.337
91.334	32.39	193.458
91.683	32.35	193.272
92.032	32.39	192.829
92.382	32.31	192.201
92.731	32.3	191.887
93.08	32.33	191.132
93.446	32.28	193.2
93.805	32.24	192.765
94.156	32.1	191.072
94.504	32.06	191.009
94.854	32.04	190.881
95.229	32.02	191.893
95.578	32.12	193.079
95.928	32.2	191.503
96.278	32.08	192.009
96.68	32.02	192.207
97.029	32.1	192.451
97.378	32.06	192.079
97.728	32.06	191.887
98.105	32.13	191.701
98.453	32.19	191.765
98.856	32.21	191.387
99.22	32.17	191.951
99.579	32.17	191.45
99.929	32.18	190.19
100.279	32.16	191.759
100.656	32.1	193.465
101.003	32.12	192.015
101.354	32.25	192.772
101.702	32.21	191.45
102.052	32.16	192.015
102.429	32.11	192.644
102.778	32.09	191.391
103.127	32.1	191.382
103.477	32.01	189.124
103.879	31.94	190.749
104.228	31.8	190.885
104.578	31.95	191.323
104.927	31.92	190.945
105.304	31.96	190.754
105.651	31.85	190.698
106.003	31.95	190.256
106.351	31.94	188.307
106.702	31.87	191.259
107.102	31.86	188.872
107.452	31.92	189.689
107.801	31.9	190.193
108.176	31.86	190.945
108.527	31.86	189.879
108.875	31.87	190.507
109.224	31.9	189.876
109.574	31.88	189.942
109.923	31.9	190.256
110.272	31.98	190.567
110.638	31.94	191.514
110.998	31.97	191.387
111.348	31.99	191.323
111.697	32.01	191.573
112.046	32	190.571
112.422	31.98	190.758
112.824	31.96	189.061
113.19	31.89	190.44
113.549	31.83	190.444
113.901	31.98	190.44
114.285	31.84	190.254
114.642	31.83	190.066
115	31.84	189.312
115.375	31.83	190.005
115.726	31.82	187.742
116.074	31.73	189.499
116.424	31.65	188.181
116.772	31.76	189.501
117.121	31.8	188.935
117.472	31.75	189.312
117.848	31.77	188.056
118.196	31.68	189.815
118.545	31.67	187.553
118.894	31.61	189.815
119.245	31.71	190.695
119.62	31.82	189.375
119.969	31.8	188.747
120.319	31.76	189.501
120.668	31.77	190.504
121.018	31.86	189.626
121.368	31.8	191.45
121.743	31.8	190.698
122.091	31.8	187.428
122.442	31.75	189.122
122.791	31.6	187.93
123.139	31.58	189.815
123.49	31.66	188.307
123.865	31.77	189.061
124.214	31.73	187.553
124.564	31.75	190.256
124.911	31.72	186.611
125.261	31.67	189.436
125.637	31.64	189.879
125.986	31.69	188.81
126.347	31.67	187.365
126.739	31.64	188.81
127.088	31.71	188.558
127.437	31.7	190.698
127.786	31.73	189.496
128.135	31.65	188.433
128.51	31.7	189.689
128.861	31.67	188.747
129.209	31.66	189.25
129.559	31.74	189.122
129.908	31.65	188.433
130.256	31.58	188.873
130.632	31.59	185.92
130.981	31.42	188.056
131.331	31.49	186.731
131.681	31.62	188.873
132.03	31.52	187.616
132.379	31.53	186.989
132.757	31.49	188.056
133.103	31.52	187.741
133.454	31.52	186.362
133.803	31.53	188.37
134.207	31.56	186.296
134.555	31.52	188.307
134.905	31.53	188.747
135.279	31.53	188.37
135.646	31.55	189.313
136.035	31.61	188.307
136.409	31.64	187.114
136.758	31.53	186.675
137.107	31.47	185.421
137.482	31.4	188.558
137.832	31.43	188.747
138.183	31.47	188.37
138.532	31.55	188.936
138.881	31.56	186.548
139.229	31.55	188.433
139.578	31.56	186.735
139.956	31.6	191.015
140.304	31.76	187.741
140.654	31.75	188.37
141.003	31.66	187.052
141.352	31.69	188.244
141.728	31.65	186.424
142.131	31.58	187.992
142.496	31.54	186.548
142.855	31.51	186.987
143.205	31.43	186.424
143.554	31.4	186.862
143.931	31.42	186.613
144.279	31.42	187.301
144.629	31.41	187.365
144.978	31.41	187.301
145.329	31.44	187.365
145.704	31.42	186.548
146.051	31.38	187.239
146.401	31.33	184.849
146.75	31.33	186.797
147.1	31.28	184.849
147.448	31.28	186.613
147.824	31.36	185.986
148.173	31.25	186.548
148.523	31.29	184.166
148.872	31.26	185.163
149.221	31.25	184.35
149.598	31.31	186.168
149.946	31.36	185.73
150.295	31.31	186.296
150.644	31.41	186.421
150.994	31.35	184.036
151.371	31.21	185.792
151.72	31.18	185.477
152.07	31.26	184.978
152.417	31.15	185.354
152.767	31.17	186.483
153.116	31.27	184.855
153.493	31.13	185.792
153.842	31.15	184.849
154.191	31.16	184.787
154.594	31.1	184.664
154.942	31.11	185.292
155.292	31.14	184.726
155.642	31.14	185.354
155.991	31.06	184.596
156.341	31.03	185.848
156.706	31.17	183.041
157.066	31.01	183.913
157.468	30.94	183.599
157.818	30.89	182.222
158.167	30.88	183.652
158.517	31	184.22
158.866	31.06	185.101
159.243	31.03	183.469
159.59	31.06	184.22
159.94	31.09	183.783
160.289	31.04	182.161
160.638	30.93	183.906
160.986	30.91	182.405
161.347	30.94	183.913
161.729	30.9	183.714
162.088	30.81	183.906
162.439	30.84	182.78
162.814	30.78	183.906
163.164	30.85	182.587
163.566	30.85	182.841
163.916	30.87	181.523
164.265	30.79	182.273
164.613	30.76	182.152
164.962	30.69	182.455
165.313	30.69	181.838
165.689	30.66	182.273
166.092	30.7	182.019
166.457	30.73	181.705
166.817	30.7	183.155
167.219	30.79	182.283
167.568	30.73	182.08
167.917	30.78	182.536
168.266	30.81	182.334
168.642	30.81	182.648
168.992	30.8	183.277
169.341	30.81	183.53
169.69	30.82	182.648
170.039	30.89	182.972
170.388	30.82	182.77
170.749	30.89	182.77
171.104	30.92	182.719
171.463	30.88	181.463
171.867	30.86	182.466
172.215	30.81	183.347
172.564	30.83	182.902
172.915	30.83	183.216
173.264	30.82	181.33
173.64	30.77	181.969
173.989	30.78	182.344
174.339	30.8	181.848
174.687	30.76	182.152
175.036	30.79	181.705
175.386	30.78	182.152
175.763	30.76	180.775
176.111	30.72	181.512
176.514	30.76	181.887
176.879	30.81	181.028
177.239	30.79	183.084
177.588	30.86	183.216
177.937	30.85	182.892
178.314	30.86	182.101
178.662	30.77	182.709
179.011	30.8	182.587
179.36	30.81	182.902
179.71	30.88	182.587
180.086	30.97	182.395

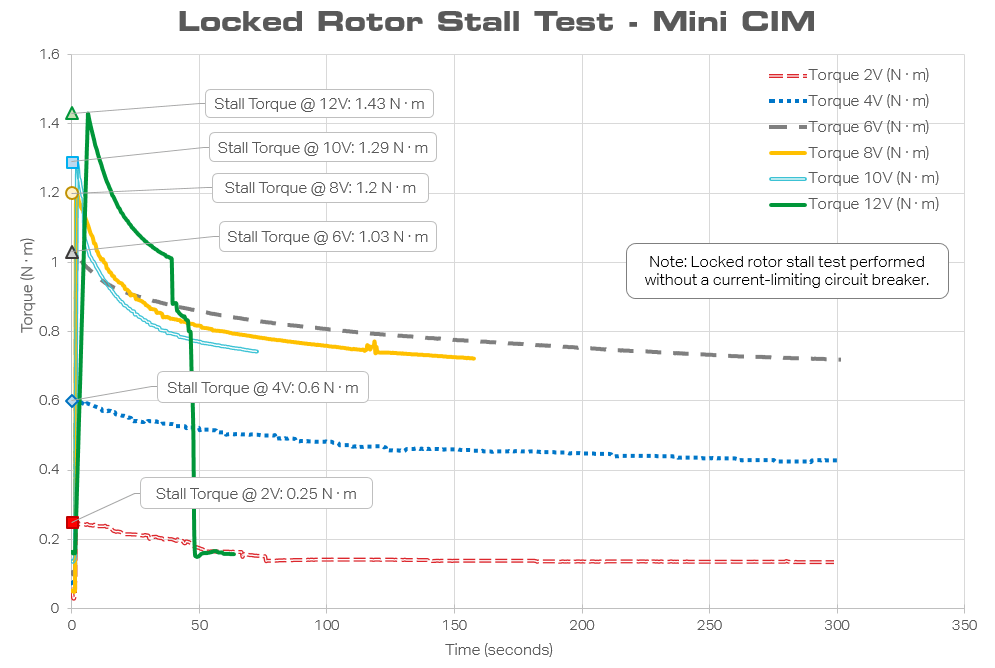

Click to download locked rotor test data (.CSV)

United States

Canada

United Kingdom

Europe

Australia

Asia / Pacific

China
