VEX Robotics Motor Data - CIM Motor (217-2000)

The CIM motor can be used to power a drivetrain or other large mechanism. Used on large-scale competitive robots for over a decade, the CIM has become one of the "go-to" DC motors for the FIRST® Robotics Competition.

Free Speed (RPM)	5310 (+/- 10%)	5330
	Published Specification	Experimental Data
Free Current (A)	2.7	2.7
Maximum Power (W)	337	337
Stall Torque (N · m)	2.42	2.41
Stall Current (A)	133	131

Click to download 12V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	2.413	131.055	1572.66	0	0	1572.66
53.3	2.38887	129.771	1557.252	13.334	0.856	1543.918
106.6	2.36474	128.488	1541.856	26.398	1.712	1515.458
159.9	2.34061	127.204	1526.448	39.193	2.568	1487.255
213.2	2.31648	125.921	1511.052	51.718	3.423	1459.334
266.5	2.29235	124.637	1495.644	63.974	4.277	1431.67
319.8	2.26822	123.354	1480.248	75.961	5.132	1404.287
373.1	2.24409	122.07	1464.84	87.679	5.986	1377.161
426.4	2.21996	120.787	1449.444	99.127	6.839	1350.317
479.7	2.19583	119.503	1434.036	110.305	7.692	1323.731
533	2.1717	118.22	1418.64	121.215	8.544	1297.425
586.3	2.14757	116.936	1403.232	131.855	9.397	1271.377
639.6	2.12344	115.652	1387.824	142.225	10.248	1245.599
692.9	2.09931	114.369	1372.428	152.327	11.099	1220.101
746.2	2.07518	113.085	1357.02	162.158	11.95	1194.862
799.5	2.05105	111.802	1341.624	171.721	12.799	1169.903
852.8	2.02692	110.518	1326.216	181.014	13.649	1145.202
906.1	2.00279	109.235	1310.82	190.038	14.498	1120.782
959.4	1.97866	107.951	1295.412	198.792	15.346	1096.62
1012.7	1.95453	106.668	1280.016	207.277	16.193	1072.739
1066	1.9304	105.384	1264.608	215.493	17.04	1049.115
1119.3	1.90627	104.1	1249.2	223.439	17.887	1025.761
1172.6	1.88214	102.817	1233.804	231.116	18.732	1002.688
1225.9	1.85801	101.533	1218.396	238.524	19.577	979.872
1279.2	1.83388	100.25	1203	245.662	20.421	957.338
1332.5	1.80975	98.966	1187.592	252.531	21.264	935.061
1385.8	1.78562	97.683	1172.196	259.13	22.106	913.066
1439.1	1.76149	96.399	1156.788	265.46	22.948	891.328
1492.4	1.73736	95.116	1141.392	271.521	23.789	869.871
1545.7	1.71323	93.832	1125.984	277.313	24.629	848.671
1599	1.6891	92.549	1110.588	282.835	25.467	827.753
1652.3	1.66497	91.265	1095.18	288.087	26.305	807.093
1705.6	1.64084	89.981	1079.772	293.07	27.142	786.702
1758.9	1.61671	88.698	1064.376	297.784	27.977	766.592
1812.2	1.59258	87.414	1048.968	302.229	28.812	746.739
1865.5	1.56845	86.131	1033.572	306.404	29.645	727.168
1918.8	1.54432	84.847	1018.164	310.31	30.477	707.854
1972.1	1.52019	83.564	1002.768	313.946	31.308	688.822
2025.4	1.49606	82.28	987.36	317.313	32.138	670.047
2078.7	1.47193	80.997	971.964	320.411	32.965	651.553
2132	1.4478	79.713	956.556	323.239	33.792	633.317
2185.3	1.42367	78.429	941.148	325.798	34.617	615.35
2238.6	1.39954	77.146	925.752	328.088	35.44	597.664
2291.9	1.37541	75.862	910.344	330.108	36.262	580.236
2345.2	1.35128	74.579	894.948	331.859	37.081	563.089
2398.5	1.32715	73.295	879.54	333.341	37.899	546.199
2451.8	1.30302	72.012	864.144	334.553	38.715	529.591
2505.1	1.27889	70.728	848.736	335.496	39.529	513.24
2558.4	1.25476	69.445	833.34	336.169	40.34	497.171
2611.7	1.23063	68.161	817.932	336.573	41.149	481.359
2665	1.2065	66.878	802.536	336.708	41.956	465.828
2718.3	1.18237	65.594	787.128	336.573	42.76	450.555
2771.6	1.15824	64.31	771.72	336.169	43.561	435.551
2824.9	1.13411	63.027	756.324	335.496	44.359	420.828
2878.2	1.10998	61.743	740.916	334.553	45.154	406.363
2931.5	1.08585	60.46	725.52	333.341	45.945	392.179
2984.8	1.06172	59.176	710.112	331.859	46.733	378.253
3038.1	1.03759	57.893	694.716	330.108	47.517	364.608
3091.4	1.01346	56.609	679.308	328.088	48.297	351.22
3144.7	0.98933	55.326	663.912	325.798	49.072	338.114
3198	0.9652	54.042	648.504	323.239	49.844	325.265
3251.3	0.94107	52.758	633.096	320.411	50.61	312.685
3304.6	0.91694	51.475	617.7	317.313	51.37	300.387
3357.9	0.89281	50.191	602.292	313.946	52.125	288.346
3411.2	0.86868	48.908	586.896	310.31	52.873	276.586
3464.5	0.84455	47.624	571.488	306.404	53.615	265.084
3517.8	0.82042	46.341	556.092	302.229	54.349	253.863
3571.1	0.79629	45.057	540.684	297.784	55.075	242.9
3624.4	0.77216	43.774	525.288	293.07	55.792	232.218
3677.7	0.74803	42.49	509.88	288.087	56.501	221.793
3731	0.7239	41.207	494.484	282.835	57.198	211.649
3784.3	0.69977	39.923	479.076	277.313	57.885	201.763
3837.6	0.67564	38.639	463.668	271.521	58.559	192.147
3890.9	0.65151	37.356	448.272	265.46	59.219	182.812
3944.2	0.62738	36.072	432.864	259.13	59.864	173.734
3997.5	0.60325	34.789	417.468	252.531	60.491	164.937
4050.8	0.57912	33.505	402.06	245.662	61.101	156.398
4104.1	0.55499	32.222	386.664	238.524	61.688	148.14
4157.4	0.53086	30.938	371.256	231.116	62.252	140.14
4210.7	0.50673	29.655	355.86	223.439	62.788	132.421
4264	0.4826	28.371	340.452	215.493	63.296	124.959
4317.3	0.45847	27.087	325.044	207.277	63.769	117.767
4370.6	0.43434	25.804	309.648	198.792	64.199	110.856
4423.9	0.41021	24.52	294.24	190.038	64.586	104.202
4477.2	0.38608	23.237	278.844	181.014	64.916	97.83
4530.5	0.36195	21.953	263.436	171.721	65.185	91.715
4583.8	0.33782	20.67	248.04	162.158	65.376	85.882
4637.1	0.31369	19.386	232.632	152.327	65.48	80.305
4690.4	0.28956	18.103	217.236	142.225	65.47	75.011
4743.7	0.26543	16.819	201.828	131.855	65.33	69.973
4797	0.2413	15.536	186.432	121.215	65.018	65.217
4850.3	0.21717	14.252	171.024	110.305	64.497	60.719
4903.6	0.19304	12.968	155.616	99.127	63.7	56.489
4956.9	0.16891	11.685	140.22	87.679	62.53	52.541
5010.2	0.14478	10.401	124.812	75.961	60.86	48.851
5063.5	0.12065	9.118	109.416	63.974	58.469	45.442
5116.8	0.09652	7.834	94.008	51.718	55.014	42.29
5170.1	0.07239	6.551	78.612	39.193	49.856	39.419
5223.4	0.04826	5.267	63.204	26.398	41.766	36.806
5276.7	0.02413	3.984	47.808	13.334	27.891	34.474
5330	0	2.7	32.4	0	0	32.4

Click to download 10V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	2.062	99.014	1188.168	0	0	1188.168
41.138	2.04138	98.039	1176.468	8.794	0.747	1167.674
82.276	2.02076	97.065	1164.78	17.411	1.495	1147.369
123.414	2.00014	96.09	1153.08	25.85	2.242	1127.23
164.553	1.97952	95.115	1141.38	34.111	2.989	1107.269
205.691	1.9589	94.14	1129.68	42.195	3.735	1087.485
246.829	1.93828	93.166	1117.992	50.1	4.481	1067.892
287.967	1.91766	92.191	1106.292	57.829	5.227	1048.463
329.105	1.89704	91.216	1094.592	65.379	5.973	1029.213
370.243	1.87642	90.242	1082.904	72.752	6.718	1010.152
411.381	1.8558	89.267	1071.204	79.947	7.463	991.257
452.519	1.83518	88.292	1059.504	86.965	8.208	972.539
493.658	1.81456	87.317	1047.804	93.805	8.953	953.999
534.796	1.79394	86.343	1036.116	100.467	9.697	935.649
575.934	1.77332	85.368	1024.416	106.952	10.44	917.464
617.072	1.7527	84.393	1012.716	113.259	11.184	899.457
658.21	1.73208	83.419	1001.028	119.388	11.927	881.64
699.348	1.71146	82.444	989.328	125.34	12.669	863.988
740.486	1.69084	81.469	977.628	131.114	13.411	846.514
781.624	1.67022	80.495	965.94	136.71	14.153	829.23
822.763	1.6496	79.52	954.24	142.129	14.894	812.111
863.901	1.62898	78.545	942.54	147.37	15.635	795.17
905.039	1.60836	77.57	930.84	152.433	16.376	778.407
946.177	1.58774	76.596	919.152	157.319	17.116	761.833
987.315	1.56712	75.621	907.452	162.027	17.855	745.425
1028.453	1.5465	74.646	895.752	166.557	18.594	729.195
1069.591	1.52588	73.672	884.064	170.91	19.332	713.154
1110.73	1.50526	72.697	872.364	175.085	20.07	697.279
1151.868	1.48464	71.722	860.664	179.082	20.807	681.582
1193.006	1.46402	70.747	848.964	182.902	21.544	666.062
1234.144	1.4434	69.773	837.276	186.544	22.28	650.732
1275.282	1.42278	68.798	825.576	190.008	23.015	635.568
1316.42	1.40216	67.823	813.876	193.295	23.75	620.581
1357.558	1.38154	66.849	802.188	196.404	24.484	605.784
1398.696	1.36092	65.874	790.488	199.335	25.217	591.153
1439.835	1.3403	64.899	778.788	202.089	25.949	576.699
1480.973	1.31968	63.924	767.088	204.665	26.681	562.423
1522.111	1.29906	62.95	755.4	207.064	27.411	548.336
1563.249	1.27844	61.975	743.7	209.285	28.141	534.415
1604.387	1.25782	61	732	211.328	28.87	520.672
1645.525	1.2372	60.026	720.312	213.193	29.597	507.119
1686.663	1.21658	59.051	708.612	214.881	30.324	493.731
1727.801	1.19596	58.076	696.912	216.391	31.05	480.521
1768.94	1.17534	57.101	685.212	217.723	31.775	467.489
1810.078	1.15472	56.127	673.524	218.878	32.497	454.646
1851.216	1.1341	55.152	661.824	219.855	33.22	441.969
1892.354	1.11348	54.177	650.124	220.655	33.94	429.469
1933.492	1.09286	53.203	638.436	221.277	34.659	417.159
1974.63	1.07224	52.228	626.736	221.721	35.377	405.015
2015.768	1.05162	51.253	615.036	221.987	36.093	393.049
2056.907	1.031	50.279	603.348	222.076	36.807	381.272
2098.045	1.01038	49.304	591.648	221.987	37.52	369.661
2139.183	0.98976	48.329	579.948	221.721	38.231	358.227
2180.321	0.96914	47.354	568.248	221.277	38.94	346.971
2221.459	0.94852	46.38	556.56	220.655	39.646	335.905
2262.597	0.9279	45.405	544.86	219.855	40.351	325.005
2303.735	0.90728	44.43	533.16	218.878	41.053	314.282
2344.873	0.88666	43.456	521.472	217.723	41.752	303.749
2386.012	0.86604	42.481	509.772	216.391	42.449	293.381
2427.15	0.84542	41.506	498.072	214.881	43.143	283.191
2468.288	0.8248	40.531	486.372	213.193	43.833	273.179
2509.426	0.80418	39.557	474.684	211.328	44.52	263.356
2550.564	0.78356	38.582	462.984	209.285	45.204	253.699
2591.702	0.76294	37.607	451.284	207.064	45.883	244.22
2632.84	0.74232	36.633	439.596	204.665	46.558	234.931
2673.978	0.7217	35.658	427.896	202.089	47.229	225.807
2715.117	0.70108	34.683	416.196	199.336	47.895	216.86
2756.255	0.68046	33.708	404.496	196.404	48.555	208.092
2797.393	0.65984	32.734	392.808	193.295	49.209	199.513
2838.531	0.63922	31.759	381.108	190.008	49.857	191.1
2879.669	0.6186	30.784	369.408	186.544	50.498	182.864
2920.807	0.59798	29.81	357.72	182.902	51.13	174.818
2961.945	0.57736	28.835	346.02	179.082	51.755	166.938
3003.083	0.55674	27.86	334.32	175.085	52.37	159.235
3044.222	0.53612	26.885	322.62	170.91	52.976	151.71
3085.36	0.5155	25.911	310.932	166.557	53.567	144.375
3126.498	0.49488	24.936	299.232	162.027	54.148	137.205
3167.636	0.47426	23.961	287.532	157.319	54.714	130.213
3208.774	0.45364	22.987	275.844	152.433	55.261	123.411
3249.912	0.43302	22.012	264.144	147.37	55.792	116.774
3291.05	0.4124	21.037	252.444	142.129	56.301	110.315
3332.189	0.39178	20.062	240.744	136.71	56.786	104.034
3373.327	0.37116	19.088	229.056	131.114	57.241	97.942
3414.465	0.35054	18.113	217.356	125.34	57.666	92.016
3455.603	0.32992	17.138	205.656	119.388	58.052	86.268
3496.741	0.3093	16.164	193.968	113.259	58.391	80.709
3537.879	0.28868	15.189	182.268	106.952	58.678	75.316
3579.017	0.26806	14.214	170.568	100.467	58.901	70.101
3620.155	0.24744	13.24	158.88	93.805	59.041	65.075
3661.294	0.22682	12.265	147.18	86.965	59.088	60.215
3702.432	0.2062	11.29	135.48	79.947	59.01	55.533
3743.57	0.18558	10.315	123.78	72.752	58.775	51.028
3784.708	0.16496	9.341	112.092	65.379	58.326	46.713
3825.846	0.14434	8.366	100.392	57.829	57.603	42.563
3866.984	0.12372	7.391	88.692	50.1	56.488	38.592
3908.122	0.1031	6.417	77.004	42.194	54.795	34.81
3949.26	0.08248	5.442	65.304	34.111	52.234	31.193
3990.399	0.06186	4.467	53.604	25.85	48.224	27.754
4031.537	0.04124	3.492	41.904	17.411	41.55	24.493
4072.675	0.02062	2.518	30.216	8.794	29.104	21.422
4113.813	0	1.543	18.516	0	0	18.516

Click to download 8V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	1.719	80.162	961.944	0	0	961.944
32.206	1.70181	79.38	952.56	5.74	0.603	946.82
64.412	1.68462	78.597	943.164	11.363	1.205	931.801
96.618	1.66743	77.815	933.78	16.871	1.807	916.909
128.823	1.65024	77.033	924.396	22.262	2.408	902.134
161.029	1.63305	76.251	915.012	27.538	3.01	887.474
193.235	1.61586	75.468	905.616	32.698	3.611	872.918
225.441	1.59867	74.686	896.232	37.742	4.211	858.49
257.647	1.58148	73.904	886.848	42.669	4.811	844.179
289.853	1.56429	73.122	877.464	47.481	5.411	829.983
322.059	1.5471	72.339	868.068	52.177	6.011	815.891
354.264	1.52991	71.557	858.684	56.757	6.61	801.927
386.47	1.51272	70.775	849.3	61.221	7.208	788.079
418.676	1.49553	69.993	839.916	65.569	7.807	774.347
450.882	1.47834	69.21	830.52	69.802	8.405	760.718
483.088	1.46115	68.428	821.136	73.918	9.002	747.218
515.294	1.44396	67.646	811.752	77.918	9.599	733.834
547.499	1.42677	66.864	802.368	81.802	10.195	720.566
579.705	1.40958	66.081	792.972	85.571	10.791	707.401
611.911	1.39239	65.299	783.588	89.223	11.386	694.365
644.117	1.3752	64.517	774.204	92.76	11.981	681.444
676.323	1.35801	63.735	764.82	96.18	12.576	668.64
708.529	1.34082	62.952	755.424	99.485	13.169	655.939
740.735	1.32363	62.17	746.04	102.673	13.762	643.367
772.94	1.30644	61.388	736.656	105.746	14.355	630.91
805.146	1.28925	60.606	727.272	108.703	14.947	618.569
837.352	1.27206	59.823	717.876	111.544	15.538	606.332
869.558	1.25487	59.041	708.492	114.268	16.128	594.224
901.764	1.23768	58.259	699.108	116.877	16.718	582.231
933.97	1.22049	57.476	689.712	119.37	17.307	570.342
966.176	1.2033	56.694	680.328	121.747	17.895	558.581
998.381	1.18611	55.912	670.944	124.008	18.483	546.936
1030.587	1.16892	55.13	661.56	126.153	19.069	535.407
1062.793	1.15173	54.347	652.164	128.182	19.655	523.982
1094.999	1.13454	53.565	642.78	130.095	20.239	512.685
1127.205	1.11735	52.783	633.396	131.893	20.823	501.503
1159.411	1.10016	52.001	624.012	133.574	21.406	490.438
1191.616	1.08297	51.218	614.616	135.139	21.988	479.477
1223.822	1.06578	50.436	605.232	136.589	22.568	468.643
1256.028	1.04859	49.654	595.848	137.922	23.147	457.926
1288.234	1.0314	48.872	586.464	139.14	23.725	447.324
1320.44	1.01421	48.089	577.068	140.241	24.302	436.827
1352.646	0.99702	47.307	567.684	141.227	24.878	426.457
1384.852	0.97983	46.525	558.3	142.096	25.452	416.204
1417.057	0.96264	45.743	548.916	142.85	26.024	406.066
1449.263	0.94545	44.96	539.52	143.488	26.595	396.032
1481.469	0.92826	44.178	530.136	144.009	27.165	386.127
1513.675	0.91107	43.396	520.752	144.415	27.732	376.337
1545.881	0.89388	42.614	511.368	144.705	28.298	366.663
1578.087	0.87669	41.831	501.972	144.879	28.862	357.093
1610.293	0.8595	41.049	492.588	144.937	29.424	347.651
1642.498	0.84231	40.267	483.204	144.879	29.983	338.325
1674.704	0.82512	39.484	473.808	144.705	30.541	329.103
1706.91	0.80793	38.702	464.424	144.415	31.096	320.009
1739.116	0.79074	37.92	455.04	144.009	31.648	311.031
1771.322	0.77355	37.138	445.656	143.488	32.197	302.168
1803.528	0.75636	36.355	436.26	142.85	32.744	293.41
1835.733	0.73917	35.573	426.876	142.096	33.287	284.78
1867.939	0.72198	34.791	417.492	141.227	33.827	276.265
1900.145	0.70479	34.009	408.108	140.241	34.364	267.867
1932.351	0.6876	33.226	398.712	139.14	34.897	259.572
1964.557	0.67041	32.444	389.328	137.922	35.426	251.406
1996.763	0.65322	31.662	379.944	136.589	35.95	243.355
2028.969	0.63603	30.88	370.56	135.139	36.469	235.421
2061.174	0.61884	30.097	361.164	133.574	36.984	227.59
2093.38	0.60165	29.315	351.78	131.893	37.493	219.887
2125.586	0.58446	28.533	342.396	130.095	37.995	212.301
2157.792	0.56727	27.751	333.012	128.182	38.492	204.83
2189.998	0.55008	26.968	323.616	126.153	38.982	197.463
2222.204	0.53289	26.186	314.232	124.008	39.464	190.224
2254.41	0.5157	25.404	304.848	121.747	39.937	183.101
2286.615	0.49851	24.622	295.464	119.37	40.401	176.094
2318.821	0.48132	23.839	286.068	116.877	40.856	169.191
2351.027	0.46413	23.057	276.684	114.268	41.299	162.416
2383.233	0.44694	22.275	267.3	111.544	41.73	155.756
2415.439	0.42975	21.493	257.916	108.703	42.147	149.213
2447.645	0.41256	20.71	248.52	105.746	42.55	142.774
2479.85	0.39537	19.928	239.136	102.673	42.935	136.463
2512.056	0.37818	19.146	229.752	99.485	43.301	130.267
2544.262	0.36099	18.363	220.356	96.18	43.648	124.176
2576.468	0.3438	17.581	210.972	92.76	43.968	118.212
2608.674	0.32661	16.799	201.588	89.223	44.26	112.365
2640.88	0.30942	16.017	192.204	85.571	44.521	106.633
2673.086	0.29223	15.234	182.808	81.802	44.747	101.006
2705.291	0.27504	14.452	173.424	77.918	44.929	95.506
2737.497	0.25785	13.67	164.04	73.918	45.061	90.122
2769.703	0.24066	12.888	154.656	69.802	45.134	84.854
2801.909	0.22347	12.105	145.26	65.57	45.14	79.69
2834.115	0.20628	11.323	135.876	61.221	45.057	74.655
2866.321	0.18909	10.541	126.492	56.757	44.87	69.735
2898.527	0.1719	9.759	117.108	52.177	44.555	64.931
2930.732	0.15471	8.976	107.712	47.481	44.081	60.231
2962.938	0.13752	8.194	98.328	42.669	43.395	55.659
2995.144	0.12033	7.412	88.944	37.742	42.433	51.202
3027.35	0.10314	6.63	79.56	32.698	41.099	46.862
3059.556	0.08595	5.847	70.164	27.538	39.248	42.626
3091.762	0.06876	5.065	60.78	22.262	36.627	38.518
3123.967	0.05157	4.283	51.396	16.871	32.826	34.525
3156.173	0.03438	3.501	42.012	11.363	27.047	30.649
3188.379	0.01719	2.718	32.616	5.74	17.599	26.876
3220.585	0	1.936	23.232	0	0	23.232

Click to download 6V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	1.299	60.088	721.056	0	0	721.056
23.835	1.28601	59.508	714.096	3.21	0.45	710.886
47.669	1.27302	58.929	707.148	6.355	0.899	700.793
71.504	1.26003	58.349	700.188	9.435	1.347	690.753
95.339	1.24704	57.77	693.24	12.45	1.796	680.79
119.173	1.23405	57.19	686.28	15.401	2.244	670.879
143.008	1.22106	56.61	679.32	18.286	2.692	661.034
166.843	1.20807	56.031	672.372	21.107	3.139	651.265
190.677	1.19508	55.451	665.412	23.863	3.586	641.549
214.512	1.18209	54.872	658.464	26.554	4.033	631.91
238.347	1.1691	54.292	651.504	29.18	4.479	622.324
262.181	1.15611	53.712	644.544	31.742	4.925	612.802
286.016	1.14312	53.133	637.596	34.238	5.37	603.358
309.85	1.13013	52.553	630.636	36.67	5.815	593.966
333.685	1.11714	51.974	623.688	39.037	6.259	584.651
357.52	1.10415	51.394	616.728	41.339	6.703	575.389
381.354	1.09116	50.814	609.768	43.576	7.146	566.192
405.189	1.07817	50.235	602.82	45.748	7.589	557.072
429.024	1.06518	49.655	595.86	47.856	8.031	548.004
452.858	1.05219	49.076	588.912	49.898	8.473	539.014
476.693	1.0392	48.496	581.952	51.876	8.914	530.076
500.528	1.02621	47.916	574.992	53.789	9.355	521.203
524.362	1.01322	47.337	568.044	55.637	9.794	512.407
548.197	1.00023	46.757	561.084	57.42	10.234	503.664
572.032	0.98724	46.178	554.136	59.139	10.672	494.997
595.866	0.97425	45.598	547.176	60.792	11.11	486.384
619.701	0.96126	45.018	540.216	62.381	11.547	477.835
643.536	0.94827	44.439	533.268	63.905	11.984	469.363
667.37	0.93528	43.859	526.308	65.364	12.419	460.944
691.205	0.92229	43.28	519.36	66.758	12.854	452.602
715.04	0.9093	42.7	512.4	68.087	13.288	444.313
738.874	0.89631	42.12	505.44	69.352	13.721	436.088
762.709	0.88332	41.541	498.492	70.551	14.153	427.941
786.543	0.87033	40.961	491.532	71.686	14.584	419.846
810.378	0.85734	40.382	484.584	72.756	15.014	411.828
834.213	0.84435	39.802	477.624	73.761	15.443	403.863
858.047	0.83136	39.222	470.664	74.701	15.871	395.963
881.882	0.81837	38.643	463.716	75.577	16.298	388.139
905.717	0.80538	38.063	456.756	76.387	16.724	380.369
929.551	0.79239	37.484	449.808	77.133	17.148	372.675
953.386	0.7794	36.904	442.848	77.814	17.571	365.034
977.221	0.76641	36.324	435.888	78.43	17.993	357.458
1001.055	0.75342	35.745	428.94	78.981	18.413	349.959
1024.89	0.74043	35.165	421.98	79.468	18.832	342.512
1048.725	0.72744	34.586	415.032	79.889	19.249	335.143
1072.559	0.71445	34.006	408.072	80.246	19.665	327.826
1096.394	0.70146	33.426	401.112	80.538	20.079	320.574
1120.229	0.68847	32.847	394.164	80.764	20.49	313.4
1144.063	0.67548	32.267	387.204	80.927	20.9	306.277
1167.898	0.66249	31.688	380.256	81.024	21.308	299.232
1191.733	0.6495	31.108	373.296	81.056	21.714	292.24
1215.567	0.63651	30.528	366.336	81.024	22.117	285.312
1239.402	0.62352	29.949	359.388	80.927	22.518	278.461
1263.236	0.61053	29.369	352.428	80.764	22.916	271.664
1287.071	0.59754	28.79	345.48	80.537	23.312	264.943
1310.906	0.58455	28.21	338.52	80.246	23.705	258.274
1334.74	0.57156	27.63	331.56	79.889	24.095	251.671
1358.575	0.55857	27.051	324.612	79.468	24.481	245.144
1382.41	0.54558	26.471	317.652	78.981	24.864	238.671
1406.244	0.53259	25.892	310.704	78.43	25.243	232.274
1430.079	0.5196	25.312	303.744	77.814	25.618	225.93
1453.914	0.50661	24.732	296.784	77.133	25.99	219.651
1477.748	0.49362	24.153	289.836	76.387	26.355	213.449
1501.583	0.48063	23.573	282.876	75.577	26.717	207.299
1525.418	0.46764	22.994	275.928	74.701	27.073	201.227
1549.252	0.45465	22.414	268.968	73.761	27.424	195.207
1573.087	0.44166	21.834	262.008	72.756	27.769	189.252
1596.922	0.42867	21.255	255.06	71.686	28.106	183.374
1620.756	0.41568	20.675	248.1	70.551	28.437	177.549
1644.591	0.40269	20.096	241.152	69.352	28.759	171.8
1668.426	0.3897	19.516	234.192	68.087	29.073	166.105
1692.26	0.37671	18.936	227.232	66.758	29.379	160.474
1716.095	0.36372	18.357	220.284	65.364	29.673	154.92
1739.929	0.35073	17.777	213.324	63.905	29.957	149.419
1763.764	0.33774	17.198	206.376	62.381	30.227	143.995
1787.599	0.32475	16.618	199.416	60.792	30.485	138.624
1811.433	0.31176	16.038	192.456	59.139	30.729	133.317
1835.268	0.29877	15.459	185.508	57.42	30.953	128.088
1859.103	0.28578	14.879	178.548	55.637	31.161	122.911
1882.937	0.27279	14.3	171.6	53.789	31.346	117.811
1906.772	0.2598	13.72	164.64	51.876	31.509	112.764
1930.607	0.24681	13.14	157.68	49.898	31.645	107.782
1954.441	0.23382	12.561	150.732	47.856	31.749	102.876
1978.276	0.22083	11.981	143.772	45.748	31.82	98.024
2002.111	0.20784	11.402	136.824	43.576	31.848	93.248
2025.945	0.19485	10.822	129.864	41.339	31.833	88.525
2049.78	0.18186	10.242	122.904	39.037	31.762	83.867
2073.615	0.16887	9.663	115.956	36.67	31.624	79.286
2097.449	0.15588	9.083	108.996	34.238	31.412	74.758
2121.284	0.14289	8.504	102.048	31.742	31.105	70.306
2145.119	0.1299	7.924	95.088	29.18	30.687	65.908
2168.953	0.11691	7.344	88.128	26.554	30.131	61.574
2192.788	0.10392	6.765	81.18	23.863	29.395	57.317
2216.622	0.09093	6.185	74.22	21.107	28.438	53.113
2240.457	0.07794	5.606	67.272	18.286	27.182	48.986
2264.292	0.06495	5.026	60.312	15.401	25.536	44.911
2288.126	0.05196	4.446	53.352	12.45	23.336	40.902
2311.961	0.03897	3.867	46.404	9.435	20.332	36.969
2335.796	0.02598	3.287	39.444	6.355	16.111	33.089
2359.63	0.01299	2.708	32.496	3.21	9.878	29.286
2383.465	0	2.128	25.536	0	0	25.536

Click to download 4V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.816	37.852	454.224	0	0	454.224
15.739	0.80784	37.494	449.928	1.331	0.296	448.597
31.479	0.79968	37.136	445.632	2.636	0.592	442.996
47.218	0.79152	36.779	441.348	3.914	0.887	437.434
62.958	0.78336	36.421	437.052	5.165	1.182	431.887
78.697	0.7752	36.063	432.756	6.389	1.476	426.367
94.437	0.76704	35.705	428.46	7.586	1.771	420.874
110.176	0.75888	35.348	424.176	8.756	2.064	415.42
125.916	0.75072	34.99	419.88	9.899	2.358	409.981
141.655	0.74256	34.632	415.584	11.015	2.65	404.569
157.395	0.7344	34.274	411.288	12.105	2.943	399.183
173.134	0.72624	33.917	407.004	13.167	3.235	393.837
188.874	0.71808	33.559	402.708	14.203	3.527	388.505
204.613	0.70992	33.201	398.412	15.211	3.818	383.201
220.352	0.70176	32.843	394.116	16.193	4.109	377.923
236.092	0.6936	32.485	389.82	17.148	4.399	372.672
251.831	0.68544	32.128	385.536	18.076	4.689	367.46
267.571	0.67728	31.77	381.24	18.977	4.978	362.263
283.31	0.66912	31.412	376.944	19.852	5.267	357.092
299.05	0.66096	31.054	372.648	20.699	5.555	351.949
314.789	0.6528	30.697	368.364	21.519	5.842	346.845
330.529	0.64464	30.339	364.068	22.313	6.129	341.755
346.268	0.63648	29.981	359.772	23.079	6.415	336.693
362.008	0.62832	29.623	355.476	23.819	6.701	331.657
377.747	0.62016	29.266	351.192	24.532	6.985	326.66
393.487	0.612	28.908	346.896	25.218	7.27	321.678
409.226	0.60384	28.55	342.6	25.877	7.553	316.723
424.965	0.59568	28.192	338.304	26.509	7.836	311.795
440.705	0.58752	27.834	334.008	27.114	8.118	306.894
456.444	0.57936	27.477	329.724	27.693	8.399	302.031
472.184	0.5712	27.119	325.428	28.244	8.679	297.184
487.923	0.56304	26.761	321.132	28.769	8.959	292.363
503.663	0.55488	26.403	316.836	29.266	9.237	287.57
519.402	0.54672	26.046	312.552	29.737	9.514	282.815
535.142	0.53856	25.688	308.256	30.181	9.791	278.075
550.881	0.5304	25.33	303.96	30.598	10.066	273.362
566.621	0.52224	24.972	299.664	30.988	10.341	268.676
582.36	0.51408	24.615	295.38	31.351	10.614	264.029
598.099	0.50592	24.257	291.084	31.687	10.886	259.397
613.839	0.49776	23.899	286.788	31.997	11.157	254.791
629.578	0.4896	23.541	282.492	32.279	11.427	250.213
645.318	0.48144	23.183	278.196	32.535	11.695	245.661
661.057	0.47328	22.826	273.912	32.763	11.961	241.149
676.797	0.46512	22.468	269.616	32.965	12.227	236.651
692.536	0.45696	22.11	265.32	33.14	12.491	232.18
708.276	0.4488	21.752	261.024	33.288	12.753	227.736
724.015	0.44064	21.395	256.74	33.409	13.013	223.331
739.755	0.43248	21.037	252.444	33.503	13.271	218.941
755.494	0.42432	20.679	248.148	33.57	13.528	214.578
771.234	0.41616	20.321	243.852	33.611	13.783	210.241
786.973	0.408	19.964	239.568	33.624	14.035	205.944
802.712	0.39984	19.606	235.272	33.61	14.286	201.662
818.452	0.39168	19.248	230.976	33.57	14.534	197.406
834.191	0.38352	18.89	226.68	33.503	14.78	193.177
849.931	0.37536	18.532	222.384	33.409	15.023	188.975
865.67	0.3672	18.175	218.1	33.288	15.263	184.812
881.41	0.35904	17.817	213.804	33.14	15.5	180.664
897.149	0.35088	17.459	209.508	32.965	15.734	176.543
912.889	0.34272	17.101	205.212	32.763	15.965	172.449
928.628	0.33456	16.744	200.928	32.535	16.192	168.393
944.368	0.3264	16.386	196.632	32.279	16.416	164.353
960.107	0.31824	16.028	192.336	31.997	16.636	160.339
975.847	0.31008	15.67	188.04	31.687	16.851	156.353
991.586	0.30192	15.312	183.744	31.351	17.062	152.393
1007.325	0.29376	14.955	179.46	30.988	17.267	148.472
1023.065	0.2856	14.597	175.164	30.598	17.468	144.566
1038.804	0.27744	14.239	170.868	30.181	17.663	140.687
1054.544	0.26928	13.881	166.572	29.737	17.852	136.835
1070.283	0.26112	13.524	162.288	29.266	18.033	133.022
1086.023	0.25296	13.166	157.992	28.769	18.209	129.223
1101.762	0.2448	12.808	153.696	28.244	18.377	125.452
1117.502	0.23664	12.45	149.4	27.693	18.536	121.707
1133.241	0.22848	12.093	145.116	27.114	18.684	118.002
1148.981	0.22032	11.735	140.82	26.509	18.825	114.311
1164.72	0.21216	11.377	136.524	25.877	18.954	110.647
1180.46	0.204	11.019	132.228	25.218	19.072	107.01
1196.199	0.19584	10.661	127.932	24.532	19.176	103.4
1211.938	0.18768	10.304	123.648	23.819	19.264	99.829
1227.678	0.17952	9.946	119.352	23.079	19.337	96.273
1243.417	0.17136	9.588	115.056	22.313	19.393	92.743
1259.157	0.1632	9.23	110.76	21.519	19.428	89.241
1274.896	0.15504	8.873	106.476	20.699	19.44	85.777
1290.636	0.14688	8.515	102.18	19.852	19.428	82.328
1306.375	0.13872	8.157	97.884	18.977	19.387	78.907
1322.115	0.13056	7.799	93.588	18.076	19.314	75.512
1337.854	0.1224	7.442	89.304	17.148	19.202	72.156
1353.594	0.11424	7.084	85.008	16.193	19.049	68.815
1369.333	0.10608	6.726	80.712	15.211	18.846	65.501
1385.072	0.09792	6.368	76.416	14.203	18.586	62.213
1400.812	0.08976	6.01	72.12	13.167	18.257	58.953
1416.551	0.0816	5.653	67.836	12.105	17.845	55.731
1432.291	0.07344	5.295	63.54	11.015	17.336	52.525
1448.03	0.06528	4.937	59.244	9.899	16.709	49.345
1463.77	0.05712	4.579	54.948	8.756	15.935	46.192
1479.509	0.04896	4.222	50.664	7.586	14.973	43.078
1495.249	0.0408	3.864	46.368	6.389	13.779	39.979
1510.988	0.03264	3.506	42.072	5.165	12.277	36.907
1526.728	0.02448	3.148	37.776	3.914	10.361	33.862
1542.467	0.01632	2.791	33.492	2.636	7.871	30.856
1558.207	0.00816	2.433	29.196	1.332	4.562	27.864
1573.946	0	2.075	24.9	0	0	24.9

Click to download peak power test data (.CSV)

Click to expand Peak Power Test Data

Time (s)	Current (A)	Power Out (W)
0.003	66.58	331.965
0.405	64.07	327.116
0.768	63.93	327.51
1.171	63.42	323.846
1.551	63.42	329.084
1.935	63.14	326.722
2.285	62.81	322.802
2.634	62.63	320.842
2.984	62.05	320.709
3.37	61.8	315.206
3.725	61.73	317.054
4.085	61.14	312.475
4.433	60.89	312.736
4.782	60.59	311.292
5.132	60.17	310.631
5.509	60.05	307.614
5.857	59.64	306.952
6.209	59.37	306.06
6.557	58.98	302.499
6.906	58.71	304.996
7.266	58.46	301.492
7.622	58.33	302.075
7.98	58.2	301.754
8.33	58.12	300.906
8.679	57.91	300.065
9.029	57.84	295.073
9.404	57.54	300.022
9.754	57.29	296.095
10.103	57.27	297.428
10.452	57.02	296.095
10.802	57.01	295.217
11.151	56.82	295.31
11.526	56.73	290.743
11.876	56.7	294.432
12.224	56.34	289.782
12.574	56.04	292.457
12.949	55.91	290.074
13.299	55.52	290.507
13.648	55.67	287.518
13.996	55.29	286.179
14.346	55.03	285.77
14.698	54.89	283.529
15.073	54.65	284.996
15.42	54.47	281.845
15.771	54.2	280.873
16.12	54.22	280.948
16.47	54.13	277.997
16.872	54.03	281.732
17.221	53.83	276.611
17.57	53.53	277.547
17.946	53.29	279.675
18.296	53.44	276.802
18.645	52.92	272.947
18.993	52.78	272.533
19.343	52.55	272.751
19.691	52.51	270.42
20.042	52.32	271.313
20.417	51.8	270.177
20.767	51.5	269.668
21.116	51.85	264.934
21.464	51.3	266.976
21.815	51.15	264.417
22.193	50.75	262.69
22.556	50.69	266.889
22.918	51.01	261.119
23.292	50.53	261.433
23.642	50.12	256.04
23.991	49.69	259.285
24.34	49.6	256.778
24.689	49.6	256.573
25.064	49.32	259.759
25.415	49.32	252.957
25.764	49.26	258.603
26.112	49.16	252.797
26.463	49.18	251.75
26.81	48.94	255.778
27.188	48.77	251.388
27.536	48.68	255.005
27.887	48.57	256.552
28.235	48.59	253.945
28.638	48.53	253.565
28.986	48.23	248.249
29.336	48.34	252.052
29.686	48.2	250.742
30.045	48.1	250.48
30.428	48.04	249.657
30.787	48.1	246.319
31.137	47.99	247.598
31.513	47.87	246.058
31.916	47.73	245.599
32.282	47.98	247.662
32.639	47.98	246.058
32.991	47.67	243.673
33.366	47.49	245.044
33.73	47.55	245.83
34.092	47.66	246.22
34.467	47.44	241.971
34.816	47.36	245.11
35.165	47.21	242.882
35.513	47.37	243.77
35.863	47.52	241.777
36.239	47.05	242.494
36.589	47.1	241.544
36.937	47.22	243.473
37.286	47.17	244.063
37.636	47.11	241.379
37.984	47.16	243.212
38.345	46.97	244.32
38.699	46.98	240.497
39.061	47.02	243.436
39.409	46.94	242.523
39.759	46.76	240.524
40.107	46.94	242.785
40.486	46.85	239.712
40.889	46.86	240.358
41.253	46.61	242.135
41.614	46.84	240.497
41.962	46.91	240.69
42.312	46.83	238.927
42.688	46.93	239.904
43.037	46.77	239.546
43.388	46.65	237.999
43.789	46.53	241.737
44.139	46.43	237.69
44.487	46.19	239.974
44.836	46.28	236.288
45.184	46.04	235.808
45.562	46	239.072
45.91	46.13	237.307
46.261	46.03	237.809
46.609	46.16	236.477
46.961	46.14	236.36
47.362	45.99	237.095
47.711	45.91	237.213
48.06	46.28	237.429
48.436	45.94	235.902
48.785	45.83	235.598
49.135	45.87	234.197
49.484	45.77	233.506
49.834	45.66	234.217
50.182	45.7	234.478
50.531	45.64	235.64
50.908	45.56	236.688
51.255	45.61	235.976
51.607	45.66	233.263
51.955	45.56	235.398
52.305	45.51	234.947
52.681	45.43	234.123
53.03	45.41	234.291
53.379	45.43	233.618
53.766	45.26	233.787
54.122	45.19	233.823
54.48	45.27	231.692
54.83	45.37	233.432
55.179	45.44	232.123
55.557	45.26	230.706
55.922	45.11	232.604
56.28	45	230.984
56.657	44.97	230.015
57.021	44.96	229.768
57.381	44.89	230.199
57.758	44.98	231.708
58.108	45.02	228.904
58.457	44.8	231.801
58.805	44.82	228.185
59.155	44.68	230.122
59.531	44.99	228.459
59.88	44.82	229.153
60.23	44.83	232.478
60.578	44.71	227.413
60.928	44.56	229.887
61.277	44.51	228.027
61.628	44.55	227.333
62.001	44.51	227.674
62.352	44.44	228.198
62.701	44.49	228.198
63.05	44.55	228.459
63.4	44.66	229.69
63.775	44.57	228.015
64.124	44.53	226.969
64.472	44.35	226.718
64.823	44.34	224.19
65.171	44.27	228.118
65.546	44.28	227.845
65.896	44.3	227.06
66.245	44.2	226.014
66.594	44.17	222.09
66.945	44.03	225.31
67.294	43.91	219.999
67.653	43.67	224.444
68.009	43.49	221.301
68.367	43.46	226.393
68.718	43.88	221.925
69.066	44.79	219.298
69.416	43.32	222.964
69.792	43.33	219.388
70.14	43.51	226.809
70.491	43.28	222.791
70.839	43.42	219.909
71.19	43.52	221.571
71.565	43.57	219.739
71.914	43.37	223.577
72.264	43.55	222.88
72.666	43.59	221.925
73.015	43.33	221.478
73.364	43.11	219.386
73.714	43.27	221.216
74.062	43.23	217.642
74.44	43.2	223.398
74.788	43.14	220.523
75.138	43.12	221.917
75.488	42.98	220.866
75.837	42.89	218.428
76.186	42.79	220.437
76.563	42.84	219.648
76.965	42.56	219.038
77.33	42.49	220.261
77.69	42.73	218.864
78.039	42.62	218.952
78.39	42.52	216.423
78.765	42.21	214.937
79.13	42.13	216.421
79.49	41.8	214.507
79.865	42.03	218.428
80.215	42.16	217.118
80.564	42.19	218.69
80.912	42.29	216.248
81.263	42.35	217.033
81.639	42.17	215.55
81.988	42.21	217.206
82.337	41.99	216.595
82.685	41.97	214.585
83.036	41.94	218.251
83.384	42.05	214.761
83.745	41.97	214.147
84.1	42.32	219.302
84.459	42.34	213.19
84.809	42.26	213.452
85.158	42.33	216.423
85.506	42.32	213.548
85.884	42.16	217.554
86.285	42.26	216.16
86.652	42.21	212.764
87.011	42.37	223.767
87.359	42.75	215.202
87.711	42.48	218.166
88.085	42.43	214.414
88.436	42.1	215.629
88.838	41.86	217.468
89.187	42	215.802
89.536	41.88	215.809
89.885	41.92	215.023
90.234	41.91	214.937
90.582	42.07	214.679
90.962	42.02	214.332
91.326	41.89	211.534
91.684	41.9	214.59
92.062	41.77	213.809
92.449	41.8	214.237
92.829	41.73	215.113
93.189	41.87	213.548
93.54	41.78	212.581
93.89	41.63	213.537
94.293	41.86	213.19
94.64	41.77	212.849
94.99	41.67	208.476
95.35	41.68	212.319
95.732	41.62	209.021
96.091	41.68	215.809
96.452	41.83	212.934
96.817	41.69	209.533
97.166	41.65	211.796
97.514	41.93	210.327
97.864	41.4	214.489
98.266	41.5	212.587
98.616	41.58	213.366
98.964	41.62	213.098
99.315	41.6	213.183
99.691	42.12	212.404
100.041	41.75	211.626
100.428	41.66	210.757
100.808	41.57	213.261
101.169	41.54	209.879
101.517	41.57	210.487
101.894	41.62	214.847
102.243	42.14	209.729
102.647	41.65	210.926
102.993	41.47	210.926
103.344	41.41	209.953
103.692	41.53	211.61
104.042	41.56	212.417
104.392	42.3	213.976
104.74	41.79	209.272
105.101	41.64	213.452
105.455	41.6	209.533
105.816	41.53	209.775
106.165	41.59	210.15
106.569	41.37	208.309
106.916	41.51	211.803
107.266	41.31	208.487
107.615	41.31	211.263
107.991	42.14	209.804
108.34	42.09	210.131
108.689	42.08	213.89
109.039	41.86	209.261
109.388	41.67	211.272
109.766	41.66	212.496
110.13	41.73	206.93
110.489	41.69	213.879
110.868	41.59	208.118
111.232	41.63	212.397
111.59	41.44	208.226
111.966	41.58	208.309
112.315	41.69	210.318
112.666	41.48	204.743
113.014	41.4	212.496
113.362	41.42	206.298
113.74	41.43	207.785
114.088	41.42	210.739
114.439	41.55	207.345
114.786	41.46	211.788
115.137	41.43	206.739
115.487	41.44	209.272
115.862	41.62	208.749
116.212	41.62	207.524
116.614	41.65	208.937
116.963	41.31	204.138
117.312	40.88	208.904
117.662	41.05	202.994
118.011	40.9	207.441
118.361	40.79	205.527
118.709	40.76	207.58
119.085	40.56	207.773
119.435	40.48	201.565
119.785	40.49	204.727
120.133	40.4	202.471
120.519	40.2	202.209
120.876	40.21	205.004
121.234	40.18	202.371
121.583	40.31	201.989
121.959	40.48	207
122.323	40.63	199.753
122.714	40.7	208.201
123.087	40.72	200.036
123.435	40.81	204.989
123.786	40.56	199.956
124.162	40.57	202.471
124.51	40.74	207.332
124.859	40.74	201.585
125.209	40.8	206.201
125.558	40.5	198.182
125.907	40.48	200.72
126.284	40.41	204.383
126.633	40.37	197.579
126.982	40.33	208.174
127.332	40.65	200.559
127.681	40.81	202.432
128.057	40.8	205.774
128.408	40.91	201.686
128.81	40.94	208.547
129.158	40.87	202.271
129.507	40.75	204.448
129.858	40.81	201.767
130.206	40.85	203.4
130.556	40.95	203.272
130.932	40.92	200.961
131.28	40.95	208.463
131.631	41.08	203.381
131.98	41.05	204.989
132.33	41.29	201.002
132.677	40.94	200.639
133.028	41.14	206.05
133.404	40.79	200.255
133.752	40.66	208.022
134.103	40.71	204.023
134.453	40.97	201.384
134.854	41.25	205.692
135.204	41.09	201.263
135.553	41.12	206.491
135.902	40.96	199.753
136.279	40.76	202.876
136.627	40.91	206.752
136.977	40.89	202.732
137.326	40.73	202.894
137.675	40.73	199.673
138.024	41.11	200.175
138.401	41.09	208.726
138.802	41.22	202.57
139.169	41.2	207.332
139.528	41.09	206.56
139.877	41.12	199.833
140.227	41.16	206.118
140.604	41.23	203.843
141.006	41.06	202.371
141.373	41.18	202.047
141.73	40.93	205.201
142.081	41.26	207.166
142.429	42.33	201.561
142.805	41.68	198.967
143.155	41.19	205.169
143.505	41.3	200.901
143.906	41.3	205.595
144.255	40.99	202.976
144.605	41.05	204.629
144.954	40.93	203.337
145.305	40.74	194.857
145.653	40.67	195.983
146.032	40.6	195.04
146.433	40.57	194.283
146.798	40.46	200.378
147.159	40.26	195.564
147.507	40.35	196.533
147.885	40.28	200.997
148.25	40.43	193.867
148.608	40.4	192.946
148.987	40.18	199.753
149.372	40.25	192.499
149.755	40.22	198.816
150.112	40.09	192.715
150.463	40.17	195.642
150.812	40.41	196.952
151.215	40.3	191.484
151.562	40.08	198.706
151.913	40.26	193.07
152.289	40.39	196.009
152.637	40.32	191.407
152.988	40.19	192.653
153.336	40.31	198.761
153.686	40.09	189.281
154.034	40.57	193.547
154.411	40.36	188.531
154.761	39.94	188.717
155.163	39.9	190.48
155.513	40.13	191.867
155.862	40.23	198.499
156.211	40.3	188.757
156.56	40.15	197.004
156.909	40.08	191.484
157.258	40.27	190.252
157.633	40.35	191.976
157.984	40.34	191.899
158.333	40.12	188.531
158.682	39.91	188.42
159.033	39.9	187.972
159.391	40.28	189.729
159.747	39.99	187.71
160.106	40.68	195.826
160.509	40.04	187.41
160.859	39.97	188.531
161.208	39.9	193.47
161.556	39.92	188.646
161.905	40.29	196.349
162.282	40.2	186.588
162.63	40.11	194.517
162.982	39.99	186.663
163.384	40.01	187.935
163.734	39.96	189.205
164.082	40	186.439
164.432	39.76	192.761
164.781	39.71	185.052
165.13	39.75	192.129
165.506	39.5	184.421
165.854	39.4	185.913
166.205	39.64	186.439
166.554	39.71	185.729
166.903	39.67	189.914
167.253	39.7	186.588
167.629	39.8	186.139
167.977	39.75	189.054
168.328	39.58	184.454
168.677	39.65	191.56
169.079	39.59	183.857
169.428	39.49	187.973
169.777	39.41	181.282
170.153	39.16	182.736
170.503	39.47	182.736
170.852	39.52	183.186
171.201	39.61	184.339
171.549	39.84	185.319
171.899	39.68	184.983
172.277	39.64	189.135
172.643	39.8	185.502
173.002	39.98	189.095
173.36	39.97	186.514
173.717	40.01	187.972
174.076	40.2	191.266
174.478	40.43	182.673
174.828	40.21	186.999
175.176	40.2	184.119
175.526	40.22	192.327
175.875	40.6	190.993
176.225	40.34	181.02
176.602	39.99	185.616
177.003	39.92	180.046
177.37	39.86	183.291
177.729	39.99	188.309
178.078	40.16	182.851
178.427	40.18	186.288
178.804	40.15	186.85
179.169	40.19	185.131
179.528	40.16	193.023
179.905	40.14	181.834
119.785	40.49	204.727
120.133	40.4	202.471

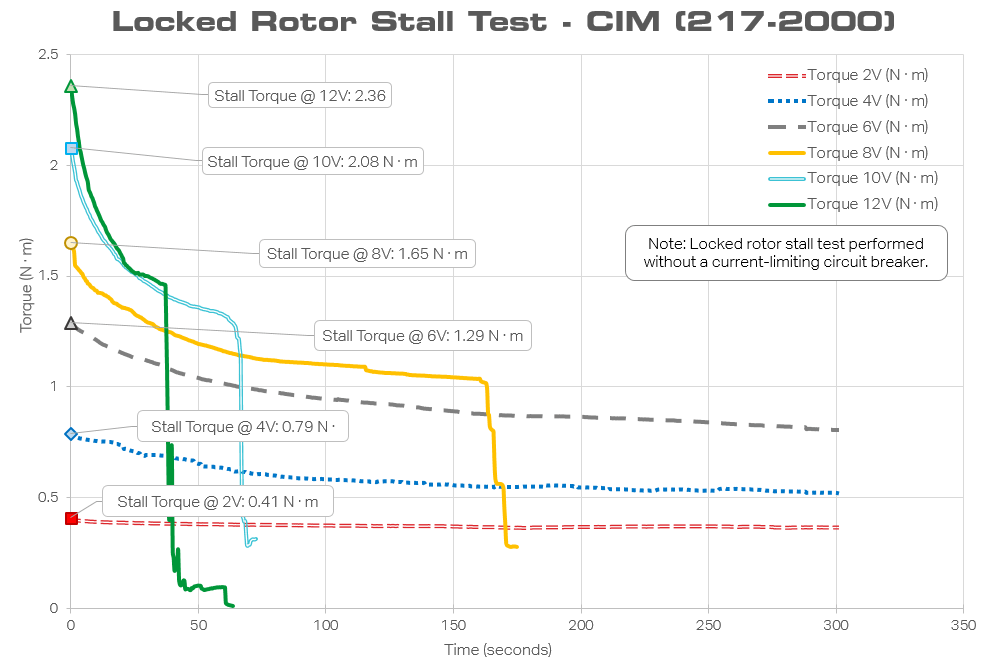

Click to download locked rotor test data (.CSV)

United States

Canada

United Kingdom

Europe

Australia

Asia / Pacific

China
