BAG Motor - VEXpro Motors

VEX Robotics Motor Data - BAG Motor (217-3351)

The BAG Motor is a motor designed specifically for medium-power applications on FIRST® Robotics Competition robots. This motor is constructed similarly to the CIM & Mini CIM, with the sealed-case robustness FIRST ® Robotics Competition teams have come to love & trust.

Free Speed (RPM)	14000 (+/- 10%)	13180
	Published Specification	Experimental Data
Free Current (A)	1.8	1.8
Maximum Power (W)	147	149
Stall Torque (N · m)	0.4	0.43
Stall Current (A)	41	53

Click to download 12V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.431	52.619	631.428	0	0	631.428
131.777	0.42669	52.111	625.332	5.888	0.942	619.444
263.554	0.42238	51.603	619.236	11.657	1.882	607.579
395.331	0.41807	51.094	613.128	17.308	2.823	595.82
527.108	0.41376	50.586	607.032	22.839	3.762	584.193
658.884	0.40945	50.078	600.936	28.251	4.701	572.685
790.661	0.40514	49.57	594.84	33.545	5.639	561.295
922.438	0.40083	49.062	588.744	38.719	6.577	550.025
1054.215	0.39652	48.553	582.636	43.775	7.513	538.861
1185.992	0.39221	48.045	576.54	48.711	8.449	527.829
1317.769	0.3879	47.537	570.444	53.529	9.384	516.915
1449.546	0.38359	47.029	564.348	58.227	10.318	506.121
1581.323	0.37928	46.521	558.252	62.807	11.251	495.445
1713.1	0.37497	46.013	552.156	67.268	12.183	484.888
1844.876	0.37066	45.504	546.048	71.61	13.114	474.438
1976.653	0.36635	44.996	539.952	75.832	14.044	464.12
2108.43	0.36204	44.488	533.856	79.936	14.973	453.92
2240.207	0.35773	43.98	527.76	83.921	15.901	443.839
2371.984	0.35342	43.472	521.664	87.787	16.828	433.877
2503.761	0.34911	42.963	515.556	91.534	17.754	424.022
2635.538	0.3448	42.455	509.46	95.162	18.679	414.298
2767.315	0.34049	41.947	503.364	98.671	19.602	404.693
2899.092	0.33618	41.439	497.268	102.062	20.525	395.206
3030.868	0.33187	40.931	491.172	105.333	21.445	385.839
3162.645	0.32756	40.422	485.064	108.485	22.365	376.579
3294.422	0.32325	39.914	478.968	111.518	23.283	367.45
3426.199	0.31894	39.406	472.872	114.433	24.2	358.439
3557.976	0.31463	38.898	466.776	117.228	25.114	349.548
3689.753	0.31032	38.39	460.68	119.905	26.028	340.775
3821.53	0.30601	37.881	454.572	122.462	26.94	332.11
3953.307	0.3017	37.373	448.476	124.901	27.85	323.575
4085.084	0.29739	36.865	442.38	127.22	28.758	315.16
4216.86	0.29308	36.357	436.284	129.421	29.664	306.863
4348.637	0.28877	35.849	430.188	131.502	30.568	298.686
4480.414	0.28446	35.341	424.092	133.465	31.471	290.627
4612.191	0.28015	34.832	417.984	135.309	32.372	282.675
4743.968	0.27584	34.324	411.888	137.034	33.27	274.854
4875.745	0.27153	33.816	405.792	138.64	34.165	267.152
5007.522	0.26722	33.308	399.696	140.127	35.058	259.569
5139.299	0.26291	32.8	393.6	141.495	35.949	252.105
5271.076	0.2586	32.291	387.492	142.744	36.838	244.748
5402.852	0.25429	31.783	381.396	143.874	37.723	237.522
5534.629	0.24998	31.275	375.3	144.885	38.605	230.415
5666.406	0.24567	30.767	369.204	145.777	39.484	223.427
5798.183	0.24136	30.259	363.108	146.55	40.36	216.558
5929.96	0.23705	29.75	357	147.204	41.234	209.796
6061.737	0.23274	29.242	350.904	147.74	42.103	203.164
6193.514	0.22843	28.734	344.808	148.156	42.968	196.652
6325.291	0.22412	28.226	338.712	148.453	43.829	190.259
6457.068	0.21981	27.718	332.616	148.632	44.686	183.984
6588.845	0.2155	27.21	326.52	148.691	45.538	177.829
6720.621	0.21119	26.701	320.412	148.632	46.388	171.78
6852.398	0.20688	26.193	314.316	148.453	47.23	165.863
6984.175	0.20257	25.685	308.22	148.156	48.068	160.064
7115.952	0.19826	25.177	302.124	147.74	48.9	154.384
7247.729	0.19395	24.669	296.028	147.204	49.726	148.824
7379.506	0.18964	24.16	289.92	146.55	50.548	143.37
7511.283	0.18533	23.652	283.824	145.777	51.362	138.047
7643.06	0.18102	23.144	277.728	144.885	52.168	132.843
7774.837	0.17671	22.636	271.632	143.874	52.967	127.758
7906.613	0.1724	22.128	265.536	142.744	53.757	122.792
8038.39	0.16809	21.619	259.428	141.495	54.541	117.933
8170.167	0.16378	21.111	253.332	140.127	55.314	113.205
8301.944	0.15947	20.603	247.236	138.64	56.076	108.596
8433.721	0.15516	20.095	241.14	137.034	56.828	104.106
8565.498	0.15085	19.587	235.044	135.309	57.568	99.735
8697.275	0.14654	19.078	228.936	133.465	58.298	95.471
8829.052	0.14223	18.57	222.84	131.502	59.012	91.338
8960.829	0.13792	18.062	216.744	129.421	59.711	87.323
9092.605	0.13361	17.554	210.648	127.22	60.395	83.428
9224.382	0.1293	17.046	204.552	124.901	61.061	79.651
9356.159	0.12499	16.538	198.456	122.462	61.707	75.994
9487.936	0.12068	16.029	192.348	119.905	62.338	72.443
9619.713	0.11637	15.521	186.252	117.228	62.941	69.024
9751.49	0.11206	15.013	180.156	114.433	63.519	65.723
9883.267	0.10775	14.505	174.06	111.518	64.069	62.542
10015.044	0.10344	13.997	167.964	108.485	64.588	59.479
10146.821	0.09913	13.488	161.856	105.333	65.078	56.523
10278.597	0.09482	12.98	155.76	102.062	65.525	53.698
10410.374	0.09051	12.472	149.664	98.671	65.928	50.993
10542.151	0.0862	11.964	143.568	95.162	66.284	48.406
10673.928	0.08189	11.456	137.472	91.534	66.584	45.938
10805.705	0.07758	10.947	131.364	87.787	66.827	43.577
10937.482	0.07327	10.439	125.268	83.921	66.993	41.347
11069.259	0.06896	9.931	119.172	79.936	67.076	39.236
11201.036	0.06465	9.423	113.076	75.832	67.063	37.244
11332.813	0.06034	8.915	106.98	71.61	66.938	35.37
11464.589	0.05603	8.406	100.872	67.268	66.686	33.604
11596.366	0.05172	7.898	94.776	62.807	66.269	31.969
11728.143	0.04741	7.39	88.68	58.227	65.66	30.453
11859.92	0.0431	6.882	82.584	53.529	64.818	29.055
11991.697	0.03879	6.374	76.488	48.711	63.684	27.777
12123.474	0.03448	5.866	70.392	43.775	62.187	26.617
12255.251	0.03017	5.357	64.284	38.719	60.231	25.565
12387.028	0.02586	4.849	58.188	33.545	57.649	24.643
12518.805	0.02155	4.341	52.092	28.251	54.233	23.841
12650.581	0.01724	3.833	45.996	22.839	49.654	23.157
12782.358	0.01293	3.325	39.9	17.308	43.378	22.592
12914.135	0.00862	2.816	33.792	11.657	34.496	22.135
13045.912	0.00431	2.308	27.696	5.888	21.259	21.808
13177.689	0	1.8	21.6	0	0	21.6

Click to download 10V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.381	44.934	539.208	0	0	539.208
104.1	0.37719	44.491	533.892	4.112	0.77	529.78
208.2	0.37338	44.048	528.576	8.141	1.54	520.435
312.299	0.36957	43.605	523.26	12.086	2.31	511.174
416.399	0.36576	43.162	517.944	15.949	3.079	501.995
520.499	0.36195	42.719	512.628	19.729	3.849	492.899
624.599	0.35814	42.276	507.312	23.425	4.617	483.887
728.698	0.35433	41.833	501.996	27.039	5.386	474.957
832.798	0.35052	41.39	496.68	30.569	6.155	466.111
936.898	0.34671	40.947	491.364	34.016	6.923	457.348
1040.998	0.3429	40.505	486.06	37.381	7.691	448.679
1145.098	0.33909	40.062	480.744	40.662	8.458	440.082
1249.197	0.33528	39.619	475.428	43.86	9.225	431.568
1353.297	0.33147	39.176	470.112	46.975	9.992	423.137
1457.397	0.32766	38.733	464.796	50.007	10.759	414.789
1561.497	0.32385	38.29	459.48	52.956	11.525	406.524
1665.596	0.32004	37.847	454.164	55.822	12.291	398.342
1769.696	0.31623	37.404	448.848	58.604	13.057	390.244
1873.796	0.31242	36.961	443.532	61.304	13.822	382.228
1977.896	0.30861	36.518	438.216	63.921	14.587	374.295
2081.996	0.3048	36.075	432.9	66.454	15.351	366.446
2186.095	0.30099	35.632	427.584	68.905	16.115	358.679
2290.195	0.29718	35.189	422.268	71.272	16.878	350.996
2394.295	0.29337	34.746	416.952	73.557	17.642	343.395
2498.395	0.28956	34.303	411.636	75.758	18.404	335.878
2602.495	0.28575	33.86	406.32	77.876	19.166	328.444
2706.594	0.28194	33.417	401.004	79.911	19.928	321.093
2810.694	0.27813	32.974	395.688	81.863	20.689	313.825
2914.794	0.27432	32.531	390.372	83.732	21.449	306.64
3018.894	0.27051	32.088	385.056	85.518	22.209	299.538
3122.993	0.2667	31.646	379.752	87.221	22.968	292.531
3227.093	0.26289	31.203	374.436	88.841	23.727	285.595
3331.193	0.25908	30.76	369.12	90.378	24.485	278.742
3435.293	0.25527	30.317	363.804	91.832	25.242	271.972
3539.393	0.25146	29.874	358.488	93.202	25.999	265.286
3643.492	0.24765	29.431	353.172	94.49	26.755	258.682
3747.592	0.24384	28.988	347.856	95.694	27.51	252.162
3851.692	0.24003	28.545	342.54	96.816	28.264	245.724
3955.792	0.23622	28.102	337.224	97.854	29.018	239.37
4059.891	0.23241	27.659	331.908	98.809	29.77	233.099
4163.991	0.2286	27.216	326.592	99.682	30.522	226.91
4268.091	0.22479	26.773	321.276	100.471	31.272	220.805
4372.191	0.22098	26.33	315.96	101.177	32.022	214.783
4476.291	0.21717	25.887	310.644	101.8	32.771	208.844
4580.39	0.21336	25.444	305.328	102.34	33.518	202.988
4684.49	0.20955	25.001	300.012	102.797	34.264	197.215
4788.59	0.20574	24.558	294.696	103.17	35.009	191.526
4892.69	0.20193	24.115	289.38	103.461	35.753	185.919
4996.789	0.19812	23.672	284.064	103.669	36.495	180.395
5100.889	0.19431	23.229	278.748	103.793	37.235	174.955
5204.989	0.1905	22.787	273.444	103.835	37.973	169.609
5309.089	0.18669	22.344	268.128	103.793	38.71	164.335
5413.189	0.18288	21.901	262.812	103.669	39.446	159.143
5517.288	0.17907	21.458	257.496	103.461	40.18	154.035
5621.388	0.17526	21.015	252.18	103.17	40.911	149.01
5725.488	0.17145	20.572	246.864	102.797	41.641	144.067
5829.588	0.16764	20.129	241.548	102.34	42.368	139.208
5933.687	0.16383	19.686	236.232	101.8	43.093	134.432
6037.787	0.16002	19.243	230.916	101.177	43.816	129.739
6141.887	0.15621	18.8	225.6	100.471	44.535	125.129
6245.987	0.1524	18.357	220.284	99.682	45.252	120.602
6350.087	0.14859	17.914	214.968	98.809	45.965	116.159
6454.186	0.14478	17.471	209.652	97.854	46.674	111.798
6558.286	0.14097	17.028	204.336	96.816	47.381	107.52
6662.386	0.13716	16.585	199.02	95.694	48.083	103.326
6766.486	0.13335	16.142	193.704	94.49	48.781	99.214
6870.585	0.12954	15.699	188.388	93.202	49.473	95.186
6974.685	0.12573	15.256	183.072	91.832	50.162	91.24
7078.785	0.12192	14.813	177.756	90.378	50.844	87.378
7182.885	0.11811	14.37	172.44	88.841	51.52	83.599
7286.985	0.1143	13.928	167.136	87.221	52.186	79.915
7391.084	0.11049	13.485	161.82	85.518	52.848	76.302
7495.184	0.10668	13.042	156.504	83.732	53.502	72.772
7599.284	0.10287	12.599	151.188	81.863	54.146	69.325
7703.384	0.09906	12.156	145.872	79.911	54.782	65.961
7807.484	0.09525	11.713	140.556	77.876	55.406	62.68
7911.583	0.09144	11.27	135.24	75.758	56.017	59.482
8015.683	0.08763	10.827	129.924	73.557	56.615	56.367
8119.783	0.08382	10.384	124.608	71.272	57.197	53.336
8223.883	0.08001	9.941	119.292	68.905	57.762	50.387
8327.982	0.0762	9.498	113.976	66.454	58.305	47.522
8432.082	0.07239	9.055	108.66	63.921	58.827	44.739
8536.182	0.06858	8.612	103.344	61.304	59.32	42.04
8640.282	0.06477	8.169	98.028	58.604	59.783	39.424
8744.382	0.06096	7.726	92.712	55.822	60.21	36.89
8848.481	0.05715	7.283	87.396	52.956	60.593	34.44
8952.581	0.05334	6.84	82.08	50.007	60.925	32.073
9056.681	0.04953	6.397	76.764	46.975	61.194	29.789
9160.781	0.04572	5.954	71.448	43.86	61.387	27.588
9264.88	0.04191	5.511	66.132	40.662	61.486	25.47
9368.98	0.0381	5.069	60.828	37.381	61.454	23.447
9473.08	0.03429	4.626	55.512	34.016	61.277	21.496
9577.18	0.03048	4.183	50.196	30.569	60.899	19.627
9681.28	0.02667	3.74	44.88	27.039	60.247	17.841
9785.379	0.02286	3.297	39.564	23.425	59.208	16.139
9889.479	0.01905	2.854	34.248	19.729	57.606	14.519
9993.579	0.01524	2.411	28.932	15.949	55.126	12.983
10097.679	0.01143	1.968	23.616	12.086	51.177	11.53
10201.778	0.00762	1.525	18.3	8.141	44.486	10.159
10305.878	0.00381	1.082	12.984	4.112	31.67	8.872
10409.978	0	0.639	7.668	0	0	7.668

Click to download 8V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.318	36.988	443.856	0	0	443.856
84.928	0.31482	36.626	439.512	2.8	0.637	436.712
169.857	0.31164	36.265	435.18	5.543	1.274	429.637
254.785	0.30846	35.903	430.836	8.23	1.91	422.606
339.713	0.30528	35.542	426.504	10.86	2.546	415.644
424.642	0.3021	35.18	422.16	13.434	3.182	408.726
509.57	0.29892	34.818	417.816	15.951	3.818	401.865
594.498	0.29574	34.457	413.484	18.411	4.453	395.073
679.427	0.29256	34.095	409.14	20.815	5.088	388.325
764.355	0.28938	33.734	404.808	23.163	5.722	381.645
849.283	0.2862	33.372	400.464	25.454	6.356	375.01
934.212	0.28302	33.01	396.12	27.688	6.99	368.432
1019.14	0.27984	32.649	391.788	29.866	7.623	361.922
1104.068	0.27666	32.287	387.444	31.987	8.256	355.457
1188.997	0.27348	31.926	383.112	34.051	8.888	349.061
1273.925	0.2703	31.564	378.768	36.059	9.52	342.709
1358.853	0.26712	31.202	374.424	38.011	10.152	336.413
1443.782	0.26394	30.841	370.092	39.906	10.783	330.186
1528.71	0.26076	30.479	365.748	41.744	11.413	324.004
1613.638	0.25758	30.118	361.416	43.526	12.043	317.89
1698.567	0.2544	29.756	357.072	45.251	12.673	311.821
1783.495	0.25122	29.394	352.728	46.92	13.302	305.808
1868.423	0.24804	29.033	348.396	48.532	13.93	299.864
1953.352	0.24486	28.671	344.052	50.087	14.558	293.965
2038.28	0.24168	28.31	339.72	51.586	15.185	288.134
2123.209	0.2385	27.948	335.376	53.029	15.812	282.347
2208.137	0.23532	27.586	331.032	54.414	16.438	276.618
2293.065	0.23214	27.225	326.7	55.744	17.063	270.956
2377.994	0.22896	26.863	322.356	57.016	17.687	265.34
2462.922	0.22578	26.502	318.024	58.232	18.311	259.792
2547.85	0.2226	26.14	313.68	59.392	18.934	254.288
2632.779	0.21942	25.778	309.336	60.495	19.556	248.841
2717.707	0.21624	25.417	305.004	61.541	20.177	243.463
2802.635	0.21306	25.055	300.66	62.531	20.798	238.129
2887.564	0.20988	24.694	296.328	63.465	21.417	232.863
2972.492	0.2067	24.332	291.984	64.341	22.036	227.643
3057.42	0.20352	23.97	287.64	65.161	22.654	222.479
3142.349	0.20034	23.609	283.308	65.925	23.27	217.383
3227.277	0.19716	23.247	278.964	66.632	23.886	212.332
3312.205	0.19398	22.886	274.632	67.283	24.499	207.349
3397.134	0.1908	22.524	270.288	67.877	25.113	202.411
3482.062	0.18762	22.162	265.944	68.414	25.725	197.53
3566.99	0.18444	21.801	261.612	68.895	26.335	192.717
3651.919	0.18126	21.439	257.268	69.319	26.944	187.949
3736.847	0.17808	21.078	252.936	69.687	27.551	183.249
3821.775	0.1749	20.716	248.592	69.998	28.158	178.594
3906.704	0.17172	20.354	244.248	70.252	28.763	173.996
3991.632	0.16854	19.993	239.916	70.45	29.364	169.466
4076.56	0.16536	19.631	235.572	70.592	29.966	164.98
4161.489	0.16218	19.27	231.24	70.676	30.564	160.564
4246.417	0.159	18.908	226.896	70.705	31.162	156.191
4331.345	0.15582	18.546	222.552	70.676	31.757	151.876
4416.274	0.15264	18.185	218.22	70.592	32.349	147.628
4501.202	0.14946	17.823	213.876	70.45	32.94	143.426
4586.13	0.14628	17.462	209.544	70.252	33.526	139.292
4671.059	0.1431	17.1	205.2	69.998	34.112	135.202
4755.987	0.13992	16.738	200.856	69.687	34.695	131.169
4840.915	0.13674	16.377	196.524	69.319	35.273	127.205
4925.844	0.13356	16.015	192.18	68.895	35.849	123.285
5010.772	0.13038	15.654	187.848	68.414	36.42	119.434
5095.7	0.1272	15.292	183.504	67.877	36.989	115.627
5180.629	0.12402	14.93	179.16	67.283	37.555	111.877
5265.557	0.12084	14.569	174.828	66.632	38.113	108.196
5350.485	0.11766	14.207	170.484	65.925	38.669	104.559
5435.414	0.11448	13.846	166.152	65.161	39.218	100.991
5520.342	0.1113	13.484	161.808	64.341	39.764	97.467
5605.27	0.10812	13.122	157.464	63.465	40.304	93.999
5690.199	0.10494	12.761	153.132	62.531	40.835	90.601
5775.127	0.10176	12.399	148.788	61.541	41.362	87.247
5860.055	0.09858	12.038	144.456	60.495	41.878	83.961
5944.984	0.0954	11.676	140.112	59.392	42.389	80.72
6029.912	0.09222	11.314	135.768	58.232	42.891	77.536
6114.84	0.08904	10.953	131.436	57.016	43.379	74.42
6199.769	0.08586	10.591	127.092	55.744	43.861	71.348
6284.697	0.08268	10.23	122.76	54.414	44.326	68.346
6369.626	0.0795	9.868	118.416	53.029	44.782	65.387
6454.554	0.07632	9.506	114.072	51.586	45.222	62.486
6539.482	0.07314	9.145	109.74	50.087	45.642	59.653
6624.411	0.06996	8.783	105.396	48.532	46.047	56.864
6709.339	0.06678	8.422	101.064	46.92	46.426	54.144
6794.267	0.0636	8.06	96.72	45.251	46.786	51.469
6879.196	0.06042	7.698	92.376	43.526	47.118	48.85
6964.124	0.05724	7.337	88.044	41.744	47.413	46.3
7049.052	0.05406	6.975	83.7	39.906	47.677	43.794
7133.981	0.05088	6.614	79.368	38.011	47.892	41.357
7218.909	0.0477	6.252	75.024	36.059	48.063	38.965
7303.837	0.04452	5.89	70.68	34.051	48.176	36.629
7388.766	0.04134	5.529	66.348	31.987	48.211	34.361
7473.694	0.03816	5.167	62.004	29.866	48.168	32.138
7558.622	0.03498	4.806	57.672	27.688	48.009	29.984
7643.551	0.0318	4.444	53.328	25.454	47.731	27.874
7728.479	0.02862	4.082	48.984	23.163	47.287	25.821
7813.407	0.02544	3.721	44.652	20.815	46.616	23.837
7898.336	0.02226	3.359	40.308	18.412	45.678	21.896
7983.264	0.01908	2.998	35.976	15.951	44.338	20.025
8068.192	0.0159	2.636	31.632	13.434	42.47	18.198
8153.121	0.01272	2.274	27.288	10.86	39.798	16.428
8238.049	0.00954	1.913	22.956	8.23	35.851	14.726
8322.977	0.00636	1.551	18.612	5.543	29.782	13.069
8407.906	0.00318	1.19	14.28	2.8	19.608	11.48
8492.834	0	0.828	9.936	0	0	9.936

Click to download 6V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.249	29.195	350.34	0	0	350.34
63.417	0.24651	28.91	346.92	1.637	0.472	345.283
126.834	0.24402	28.625	343.5	3.241	0.944	340.259
190.252	0.24153	28.34	340.08	4.812	1.415	335.268
253.669	0.23904	28.055	336.66	6.35	1.886	330.31
317.086	0.23655	27.77	333.24	7.855	2.357	325.385
380.503	0.23406	27.485	329.82	9.326	2.828	320.494
443.92	0.23157	27.2	326.4	10.765	3.298	315.635
507.338	0.22908	26.915	322.98	12.171	3.768	310.809
570.755	0.22659	26.63	319.56	13.543	4.238	306.017
634.172	0.2241	26.345	316.14	14.883	4.708	301.257
697.589	0.22161	26.06	312.72	16.189	5.177	296.531
761.006	0.21912	25.775	309.3	17.462	5.646	291.838
824.423	0.21663	25.49	305.88	18.702	6.114	287.178
887.841	0.21414	25.205	302.46	19.91	6.583	282.55
951.258	0.21165	24.92	299.04	21.084	7.051	277.956
1014.675	0.20916	24.635	295.62	22.225	7.518	273.395
1078.092	0.20667	24.35	292.2	23.333	7.985	268.867
1141.509	0.20418	24.065	288.78	24.407	8.452	264.373
1204.927	0.20169	23.78	285.36	25.449	8.918	259.911
1268.344	0.1992	23.495	281.94	26.458	9.384	255.482
1331.761	0.19671	23.21	278.52	27.434	9.85	251.086
1395.178	0.19422	22.925	275.1	28.376	10.315	246.724
1458.595	0.19173	22.64	271.68	29.286	10.78	242.394
1522.013	0.18924	22.355	268.26	30.162	11.244	238.098
1585.43	0.18675	22.07	264.84	31.005	11.707	233.835
1648.847	0.18426	21.785	261.42	31.816	12.17	229.604
1712.264	0.18177	21.5	258	32.593	12.633	225.407
1775.681	0.17928	21.215	254.58	33.337	13.095	221.243
1839.099	0.17679	20.93	251.16	34.048	13.556	217.112
1902.516	0.1743	20.645	247.74	34.726	14.017	213.014
1965.933	0.17181	20.36	244.32	35.371	14.477	208.949
2029.35	0.16932	20.075	240.9	35.983	14.937	204.917
2092.767	0.16683	19.79	237.48	36.561	15.395	200.919
2156.184	0.16434	19.505	234.06	37.107	15.854	196.953
2219.602	0.16185	19.22	230.64	37.62	16.311	193.02
2283.019	0.15936	18.935	227.22	38.099	16.767	189.121
2346.436	0.15687	18.65	223.8	38.546	17.223	185.254
2409.853	0.15438	18.365	220.38	38.959	17.678	181.421
2473.27	0.15189	18.08	216.96	39.34	18.132	177.62
2536.688	0.1494	17.795	213.54	39.687	18.585	173.853
2600.105	0.14691	17.51	210.12	40.001	19.037	170.119
2663.522	0.14442	17.225	206.7	40.282	19.488	166.418
2726.939	0.14193	16.94	203.28	40.53	19.938	162.75
2790.356	0.13944	16.655	199.86	40.745	20.387	159.115
2853.774	0.13695	16.37	196.44	40.927	20.834	155.513
2917.191	0.13446	16.085	193.02	41.076	21.281	151.944
2980.608	0.13197	15.8	189.6	41.192	21.726	148.408
3044.025	0.12948	15.515	186.18	41.274	22.169	144.906
3107.442	0.12699	15.23	182.76	41.324	22.611	141.436
3170.86	0.1245	14.946	179.352	41.34	23.05	138.012
3234.277	0.12201	14.661	175.932	41.324	23.489	134.608
3297.694	0.11952	14.376	172.512	41.274	23.925	131.238
3361.111	0.11703	14.091	169.092	41.192	24.361	127.9
3424.528	0.11454	13.806	165.672	41.076	24.794	124.596
3487.945	0.11205	13.521	162.252	40.927	25.224	121.325
3551.363	0.10956	13.236	158.832	40.745	25.653	118.087
3614.78	0.10707	12.951	155.412	40.53	26.079	114.882
3678.197	0.10458	12.666	151.992	40.282	26.503	111.71
3741.614	0.10209	12.381	148.572	40.001	26.924	108.571
3805.031	0.0996	12.096	145.152	39.687	27.342	105.465
3868.449	0.09711	11.811	141.732	39.34	27.757	102.392
3931.866	0.09462	11.526	138.312	38.959	28.167	99.353
3995.283	0.09213	11.241	134.892	38.546	28.575	96.346
4058.7	0.08964	10.956	131.472	38.099	28.979	93.373
4122.117	0.08715	10.671	128.052	37.62	29.379	90.432
4185.535	0.08466	10.386	124.632	37.107	29.773	87.525
4248.952	0.08217	10.101	121.212	36.561	30.163	84.651
4312.369	0.07968	9.816	117.792	35.983	30.548	81.809
4375.786	0.07719	9.531	114.372	35.371	30.926	79.001
4439.203	0.0747	9.246	110.952	34.726	31.298	76.226
4502.62	0.07221	8.961	107.532	34.048	31.663	73.484
4566.038	0.06972	8.676	104.112	33.337	32.02	70.775
4629.455	0.06723	8.391	100.692	32.593	32.369	68.099
4692.872	0.06474	8.106	97.272	31.816	32.708	65.456
4756.289	0.06225	7.821	93.852	31.005	33.036	62.847
4819.706	0.05976	7.536	90.432	30.162	33.353	60.27
4883.124	0.05727	7.251	87.012	29.286	33.657	57.726
4946.541	0.05478	6.966	83.592	28.376	33.946	55.216
5009.958	0.05229	6.681	80.172	27.434	34.219	52.738
5073.375	0.0498	6.396	76.752	26.458	34.472	50.294
5136.792	0.04731	6.111	73.332	25.449	34.704	47.883
5200.21	0.04482	5.826	69.912	24.407	34.911	45.505
5263.627	0.04233	5.541	66.492	23.333	35.091	43.159
5327.044	0.03984	5.256	63.072	22.225	35.238	40.847
5390.461	0.03735	4.971	59.652	21.084	35.345	38.568
5453.878	0.03486	4.686	56.232	19.91	35.407	36.322
5517.296	0.03237	4.401	52.812	18.702	35.412	34.11
5580.713	0.02988	4.116	49.392	17.462	35.354	31.93
5644.13	0.02739	3.831	45.972	16.189	35.215	29.783
5707.547	0.0249	3.546	42.552	14.883	34.976	27.669
5770.964	0.02241	3.261	39.132	13.543	34.609	25.589
5834.381	0.01992	2.976	35.712	12.171	34.081	23.541
5897.799	0.01743	2.691	32.292	10.765	33.336	21.527
5961.216	0.01494	2.406	28.872	9.326	32.301	19.546
6024.633	0.01245	2.121	25.452	7.855	30.862	17.597
6088.05	0.00996	1.836	22.032	6.35	28.822	15.682
6151.467	0.00747	1.551	18.612	4.812	25.854	13.8
6214.885	0.00498	1.266	15.192	3.241	21.334	11.951
6278.302	0.00249	0.981	11.772	1.637	13.906	10.135
6341.719	0	0.696	8.352	0	0	8.352

Click to download 4V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.174	20.389	244.668	0	0	244.668
41.221	0.17226	20.193	242.316	0.744	0.307	241.572
82.442	0.17052	19.997	239.964	1.472	0.613	238.492
123.663	0.16878	19.801	237.612	2.186	0.92	235.426
164.884	0.16704	19.605	235.26	2.884	1.226	232.376
206.105	0.1653	19.409	232.908	3.568	1.532	229.34
247.326	0.16356	19.212	230.544	4.236	1.837	226.308
288.547	0.16182	19.016	228.192	4.89	2.143	223.302
329.768	0.16008	18.82	225.84	5.528	2.448	220.312
370.989	0.15834	18.624	223.488	6.151	2.752	217.337
412.21	0.1566	18.428	221.136	6.76	3.057	214.376
453.431	0.15486	18.232	218.784	7.353	3.361	211.431
494.652	0.15312	18.036	216.432	7.932	3.665	208.5
535.873	0.15138	17.84	214.08	8.495	3.968	205.585
577.094	0.14964	17.644	211.728	9.043	4.271	202.685
618.315	0.1479	17.448	209.376	9.576	4.574	199.8
659.536	0.14616	17.252	207.024	10.095	4.876	196.929
700.758	0.14442	17.055	204.66	10.598	5.178	194.062
741.979	0.14268	16.859	202.308	11.086	5.48	191.222
783.2	0.14094	16.663	199.956	11.559	5.781	188.397
824.421	0.1392	16.467	197.604	12.018	6.082	185.586
865.642	0.13746	16.271	195.252	12.461	6.382	182.791
906.863	0.13572	16.075	192.9	12.889	6.682	180.011
948.084	0.13398	15.879	190.548	13.302	6.981	177.246
989.305	0.13224	15.683	188.196	13.7	7.28	174.496
1030.526	0.1305	15.487	185.844	14.083	7.578	171.761
1071.747	0.12876	15.291	183.492	14.451	7.876	169.041
1112.968	0.12702	15.095	181.14	14.804	8.173	166.336
1154.189	0.12528	14.898	178.776	15.142	8.47	163.634
1195.41	0.12354	14.702	176.424	15.465	8.766	160.959
1236.631	0.1218	14.506	174.072	15.773	9.061	158.299
1277.852	0.12006	14.31	171.72	16.066	9.356	155.654
1319.073	0.11832	14.114	169.368	16.344	9.65	153.024
1360.294	0.11658	13.918	167.016	16.607	9.943	150.409
1401.515	0.11484	13.722	164.664	16.855	10.236	147.809
1442.736	0.1131	13.526	162.312	17.087	10.527	145.225
1483.957	0.11136	13.33	159.96	17.305	10.818	142.655
1525.178	0.10962	13.134	157.608	17.508	11.109	140.1
1566.399	0.10788	12.938	155.256	17.696	11.398	137.56
1607.62	0.10614	12.741	152.892	17.869	11.687	135.023
1648.841	0.1044	12.545	150.54	18.026	11.974	132.514
1690.062	0.10266	12.349	148.188	18.169	12.261	130.019
1731.283	0.10092	12.153	145.836	18.297	12.546	127.539
1772.504	0.09918	11.957	143.484	18.409	12.83	125.075
1813.725	0.09744	11.761	141.132	18.507	13.113	122.625
1854.946	0.0957	11.565	138.78	18.59	13.395	120.19
1896.167	0.09396	11.369	136.428	18.657	13.675	117.771
1937.388	0.09222	11.173	134.076	18.71	13.955	115.366
1978.609	0.09048	10.977	131.724	18.747	14.232	112.977
2019.83	0.08874	10.781	129.372	18.77	14.509	110.602
2061.052	0.087	10.585	127.02	18.777	14.783	108.243
2102.273	0.08526	10.388	124.656	18.77	15.057	105.886
2143.494	0.08352	10.192	122.304	18.747	15.328	103.557
2184.715	0.08178	9.996	119.952	18.71	15.598	101.242
2225.936	0.08004	9.8	117.6	18.657	15.865	98.943
2267.157	0.0783	9.604	115.248	18.59	16.13	96.658
2308.378	0.07656	9.408	112.896	18.507	16.393	94.389
2349.599	0.07482	9.212	110.544	18.409	16.653	92.135
2390.82	0.07308	9.016	108.192	18.297	16.912	89.895
2432.041	0.07134	8.82	105.84	18.169	17.166	87.671
2473.262	0.0696	8.624	103.488	18.026	17.418	85.462
2514.483	0.06786	8.428	101.136	17.869	17.668	83.267
2555.704	0.06612	8.231	98.772	17.696	17.916	81.076
2596.925	0.06438	8.035	96.42	17.508	18.158	78.912
2638.146	0.06264	7.839	94.068	17.305	18.396	76.763
2679.367	0.0609	7.643	91.716	17.087	18.63	74.629
2720.588	0.05916	7.447	89.364	16.855	18.861	72.509
2761.809	0.05742	7.251	87.012	16.607	19.086	70.405
2803.03	0.05568	7.055	84.66	16.344	19.305	68.316
2844.251	0.05394	6.859	82.308	16.066	19.519	66.242
2885.472	0.0522	6.663	79.956	15.773	19.727	64.183
2926.693	0.05046	6.467	77.604	15.465	19.928	62.139
2967.914	0.04872	6.271	75.252	15.142	20.122	60.11
3009.135	0.04698	6.074	72.888	14.804	20.311	58.084
3050.356	0.04524	5.878	70.536	14.451	20.487	56.085
3091.577	0.0435	5.682	68.184	14.083	20.654	54.101
3132.798	0.04176	5.486	65.832	13.7	20.811	52.132
3174.019	0.04002	5.29	63.48	13.302	20.955	50.178
3215.24	0.03828	5.094	61.128	12.889	21.085	48.239
3256.461	0.03654	4.898	58.776	12.461	21.201	46.315
3297.682	0.0348	4.702	56.424	12.018	21.299	44.406
3338.903	0.03306	4.506	54.072	11.559	21.377	42.513
3380.124	0.03132	4.31	51.72	11.086	21.435	40.634
3421.345	0.02958	4.114	49.368	10.598	21.467	38.77
3462.567	0.02784	3.917	47.004	10.095	21.477	36.909
3503.788	0.0261	3.721	44.652	9.577	21.448	35.075
3545.009	0.02436	3.525	42.3	9.043	21.378	33.257
3586.23	0.02262	3.329	39.948	8.495	21.265	31.453
3627.451	0.02088	3.133	37.596	7.932	21.098	29.664
3668.672	0.01914	2.937	35.244	7.353	20.863	27.891
3709.893	0.0174	2.741	32.892	6.76	20.552	26.132
3751.114	0.01566	2.545	30.54	6.151	20.141	24.389
3792.335	0.01392	2.349	28.188	5.528	19.611	22.66
3833.556	0.01218	2.153	25.836	4.89	18.927	20.946
3874.777	0.01044	1.957	23.484	4.236	18.038	19.248
3915.998	0.0087	1.76	21.12	3.568	16.894	17.552
3957.219	0.00696	1.564	18.768	2.884	15.367	15.884
3998.44	0.00522	1.368	16.416	2.186	13.316	14.23
4039.661	0.00348	1.172	14.064	1.472	10.466	12.592
4080.882	0.00174	0.976	11.712	0.744	6.352	10.968
4122.103	0	0.78	9.36	0	0	9.36

Click to download peak power test data (.CSV)

Click to expand Peak Power Test Data

Time (s)	Current (A)	Power Out (W)
0	24.98	155.521
0.393	25.65	151.227
0.797	25.58	152.736
1.171	25.38	149.882
1.58	25.45	151.308
1.964	25.41	152.064
2.337	25.49	150.941
2.688	25.35	153.205
3.037	25.35	150.294
3.387	25.2	146.524
3.736	25.21	151.761
4.113	25.21	152.537
4.459	25.14	147.404
4.81	25.09	145.875
5.16	25.1	150.79
5.509	25	147.947
5.869	24.86	148.658
6.224	24.78	144.285
6.583	24.73	143.634
6.933	24.61	147.277
7.282	24.49	145.038
7.684	24.56	143.614
8.034	24.47	142.963
8.382	24.45	145.916
8.759	24.25	145.75
9.108	24.18	146.587
9.458	24.23	144.491
9.806	24.14	143.696
10.156	23.96	142.128
10.505	23.96	144.408
10.854	23.95	138.564
11.213	23.8	142.861
11.569	23.78	142.128
11.929	23.69	140.683
12.278	23.76	137.791
12.628	23.58	140.05
13.002	23.57	139.91
13.368	23.48	138.465
13.728	23.4	141.557
14.087	23.33	136.345
14.442	23.33	139.317
14.802	23.24	139.337
15.151	23.22	139.237
15.5	23.15	134.84
15.851	23.12	135.612
16.209	23.07	137.614
16.564	22.97	135.457
16.926	22.91	137.732
17.274	22.92	134.84
17.623	22.87	132.737
17.982	22.88	134.012
18.366	22.63	131.966
18.725	22.7	131.89
19.1	22.53	133.375
19.448	22.58	134.763
19.798	22.55	135.631
20.149	22.55	131.966
20.497	22.46	130.537
20.873	22.5	129.748
21.222	22.49	134.918
21.572	22.52	133.375
21.921	22.41	132.642
22.27	22.4	131.233
22.62	22.5	133.527
22.98	22.44	134.203
23.361	22.36	132.794
23.722	22.26	134.127
24.082	22.31	131.928
24.445	22.31	133.203
24.796	22.19	131.966
25.143	22.09	130.313
25.495	22.04	128.886
25.898	22.12	129.766
26.245	22.07	129.822
26.594	22.19	131.158
26.946	22.19	133.489
27.306	22.09	131.796
27.67	22.14	132.661
28.02	22.15	132.718
28.422	22.05	133.508
28.77	22.08	130.462
29.121	22.05	128.392
29.47	22.07	130.443
29.818	22.05	131.12
30.195	22.03	132.003
30.543	21.99	131.345
30.893	21.88	128.245
31.243	21.86	126.725
31.591	21.81	130.499
31.941	21.82	129.84
32.317	21.81	131.195
32.668	21.79	129.033
33.052	21.78	126.707
33.436	21.8	127.585
33.794	21.86	127.567
34.145	21.89	131.909
34.519	21.9	131.233
34.871	21.85	127.622
35.271	21.84	126.779
35.639	21.85	129.692
35.998	21.74	130.481
36.346	21.79	129.748
36.722	21.75	126.209
37.072	21.7	128.172
37.422	21.65	128.923
37.772	21.63	128.941
38.157	21.61	126.137
38.513	21.58	126.834
38.872	21.54	126.888
39.222	21.5	128.959
39.57	21.52	126.87
39.93	21.5	125.457
40.313	21.55	125.403
40.673	21.53	125.974
41.033	21.46	126.888
41.396	21.5	123.919
41.747	21.44	126.779
42.095	21.35	128.996
42.445	21.36	124.616
42.793	21.37	126.906
43.183	21.32	126.101
43.576	21.29	127.567
43.949	21.26	123.813
44.299	21.24	125.992
44.648	21.18	125.403
45.022	21.16	123.15
45.372	21.08	125.314
45.721	21.08	125.367
46.071	21.16	122.522
46.419	21.16	126.101
46.797	21.14	125.992
47.171	21.16	127.64
47.522	21.19	126.779
47.925	21.2	122.435
48.274	21.14	121.719
48.621	21.12	124.688
48.981	21.13	124.474
49.363	21.06	125.992
49.724	21.13	126.101
50.072	21.14	125.296
50.432	21.13	125.17
50.788	21.1	123.937
51.148	21.04	126.797
51.55	21.09	124.616
51.899	21.12	122.452
52.249	21.06	124.688
52.598	20.99	123.848
52.948	20.98	123.08
53.306	20.95	125.296
53.69	20.93	125.35
54.049	20.94	125.511
54.424	20.98	121.736
54.774	20.93	122.312
55.178	20.86	123.866
55.543	20.9	124.688
55.904	20.88	123.256
56.306	20.87	122.4
56.655	20.86	120.934
57.006	20.71	123.972
57.407	20.79	121.667
57.758	20.72	123.203
58.16	20.68	123.221
58.51	20.7	119.502
58.858	20.66	122.505
59.208	20.64	120.83
59.558	20.59	121.632
59.943	20.59	122.435
60.3	20.53	117.935
60.657	20.56	119.485
61.007	20.54	121.632
61.383	20.49	120.235
61.732	20.42	121.736
62.099	20.38	120.27
62.485	20.38	117.152
62.834	20.37	117.985
63.183	20.23	119.502
63.533	20.37	119.519
63.935	20.44	120.917
64.286	20.4	120.253
64.634	20.36	120.167
64.984	20.32	119.571
65.332	20.39	120.882
65.684	20.25	118.103
66.058	20.27	119.502
66.407	20.2	119.605
66.756	20.2	117.935
67.106	20.13	115.688
67.509	20.08	116.52
67.857	20.08	119.485
68.206	20.09	117.901
68.557	20.14	118.103
68.933	20.15	116.653
69.281	20.16	116.586
69.631	20.11	115.837
69.98	20.11	119.536
70.33	20.14	116.403
70.677	20.13	118.701
71.054	20.14	115.688
71.405	20.14	117.42
71.791	20.16	117.387
72.173	20.25	118.786
72.531	20.27	117.985
72.882	20.29	115.737
73.258	20.13	118.752
73.608	20.09	115.77
74.011	20.14	117.286
74.376	20.11	118.036
74.736	20.07	117.969
75.084	20.07	118.769
75.461	20.04	117.253
75.811	20.05	115.087
76.212	20.05	117.269
76.578	20.04	118.019
76.937	20.04	118.854
77.287	20.06	115.071
77.663	20.03	115.77
78.012	20.07	116.47
78.362	20.1	117.236
78.764	20.1	117.253
79.113	20	117.985
79.462	20.01	115.169
79.812	20.02	117.303
80.161	20.12	117.286
80.521	20.13	118.82
80.903	20.09	115.005
81.264	20.06	117.952
81.638	20.09	117.286
81.987	20	117.336
82.337	20.06	114.321
82.685	19.96	116.57
83.035	19.96	116.453
83.384	19.94	117.37
83.76	19.91	116.486
84.11	19.93	116.586
84.459	19.87	116.503
84.807	19.84	116.636
85.156	19.83	115.886
85.532	19.85	112.823
85.882	19.84	113.605
86.231	19.85	116.453
86.58	19.8	116.52
86.929	19.72	114.436
87.307	19.73	113.735
87.654	19.78	116.52
88.006	19.83	114.321
88.354	19.78	115.853
88.703	19.81	113.621
89.052	19.81	112.904
89.402	19.79	116.52
89.778	19.79	115.071
90.129	19.8	115.071
90.514	19.76	116.486
90.896	19.75	115.202
91.257	19.76	113.702
91.605	19.76	114.305
91.981	19.77	116.553
92.33	19.78	115.103
92.68	19.67	115.82
93.029	19.7	116.62
93.432	19.72	113.686
93.78	19.69	114.988
94.129	19.63	115.136
94.478	19.61	112.839
94.828	19.67	115.103
95.204	19.68	113.686
95.553	19.69	115.82
95.905	19.67	115.737
96.253	19.67	114.37
96.638	19.66	115.071
96.994	19.66	112.823
97.354	19.61	112.267
97.704	19.59	112.219
98.079	19.65	112.155
98.427	19.62	114.452
98.776	19.61	113.605
99.127	19.54	114.289
99.476	19.51	111.406
99.825	19.49	110.625
100.184	19.48	114.289
100.567	19.49	114.305
100.928	19.49	113.605
101.302	19.43	112.139
101.652	19.46	112.091
102.054	19.42	112.985
102.422	19.43	112.171
102.779	19.37	113.653
103.143	19.37	113.735
103.506	19.39	112.759
103.892	19.33	111.517
104.273	19.3	112.839
104.633	19.32	112.92
104.983	19.35	113.033
105.386	19.32	112.059
105.733	19.29	109.223
106.084	19.3	109.269
106.432	19.28	109.254
106.792	19.28	113.572
107.148	19.26	113.524
107.509	19.32	112.807
107.857	19.3	111.47
108.209	19.29	112.267
108.593	19.28	112.123
108.949	19.26	109.145
109.307	19.3	109.254
109.685	19.26	109.94
110.032	19.21	110.657
110.383	19.23	110.034
110.731	19.26	110.657
111.081	19.24	112.235
111.43	19.23	110.594
111.78	19.21	109.94
112.138	19.21	112.155
112.493	19.17	109.113
112.855	19.19	109.223
113.204	19.12	108.521
113.553	19.11	109.332
113.929	19.07	109.16
114.279	19.18	111.39
114.665	19.14	108.505
115.046	19.1	110.657
115.406	19.07	110.61
115.754	19.06	109.082
116.132	19.01	107.757
116.481	19	106.978
116.829	19.04	109.909
117.178	19.04	109.223
117.527	19.05	109.16
117.878	19.02	110.72
118.253	19.01	109.113
118.603	18.99	110.705
119.006	18.96	108.505
119.355	18.96	106.917
119.703	18.89	108.521
120.054	18.89	107.649
120.401	18.88	107.757
120.753	18.9	107.757
121.128	18.9	107.726
121.492	18.9	109.971
121.853	18.9	107.024
122.244	18.93	109.207
122.632	18.92	108.598
123.007	18.89	109.94
123.355	18.89	106.321
123.705	18.88	109.269
124.054	18.93	107.726
124.429	18.9	107.1
124.78	18.86	110.003
125.129	18.93	107.115
125.479	18.92	109.285
125.827	18.9	109.332
126.203	18.96	110.066
126.552	18.97	110.034
126.903	18.98	106.291
127.251	18.9	106.306
127.6	18.86	107.039
127.977	18.9	109.924
128.325	18.9	106.947
128.676	18.92	109.129
129.024	18.87	109.877
129.374	18.89	107.818
129.722	18.87	108.521
130.099	18.88	104.794
130.449	18.9	108.49
130.797	18.9	106.291
131.146	18.85	107.818
131.496	18.85	104.824
131.898	18.84	104.765
132.248	18.88	108.505
132.597	18.87	107.664
132.946	18.91	106.351
133.322	18.92	108.474
133.672	18.91	109.223
134.074	18.93	108.536
134.44	18.91	108.567
134.8	18.93	109.16
135.176	18.89	105.588
135.524	18.96	107.054
135.874	18.84	107.741
136.222	18.92	107.71
136.573	18.88	105.648
136.921	18.85	109.207
137.271	18.88	105.588
137.63	18.91	105.557
137.986	18.89	107.069
138.347	18.92	109.129
138.748	18.89	105.452
139.097	18.85	104.002
139.447	18.85	105.467
139.795	18.83	107.008
140.146	18.81	104.136
140.522	18.83	104.839
140.87	18.84	107.787
141.22	18.84	106.962
141.568	18.82	106.321
141.918	18.83	108.49
142.268	18.81	104.091
142.644	18.77	107.039
142.995	18.71	104.824
143.397	18.84	105.527
143.746	18.82	109.254
144.094	18.86	104.136
144.444	18.64	106.275
144.794	18.66	108.474
145.142	18.76	105.482
145.491	18.75	104.032
145.869	18.74	106.199
146.217	18.8	105.527
146.567	18.73	107.741
146.915	18.73	106.291
147.266	18.74	106.947
147.642	18.73	104.839
148.007	18.69	104.809
148.366	18.72	107.695
148.741	18.71	105.482
149.09	18.75	104.824
149.439	18.73	104.869
149.788	18.7	106.199
150.138	18.74	104.121
150.497	18.72	107.787
150.88	18.78	107.726
151.24	18.69	105.452
151.615	18.69	104.151
151.98	18.68	104.854
152.368	18.67	106.215
152.733	18.64	102.552
153.093	18.64	105.588
153.442	18.67	103.255
153.802	18.63	105.497
154.157	18.61	107.069
154.516	18.61	104.032
154.866	18.62	105.557
155.215	18.62	106.245
155.564	18.63	106.321
155.939	18.66	102.625
156.289	18.66	105.557
156.637	18.62	106.245
156.989	18.6	105.512
157.337	18.58	102.611
157.712	18.55	104.062
158.062	18.53	103.432
158.41	18.6	102.669
158.759	18.56	103.417
159.11	18.58	104.809
159.458	18.52	102.655
159.834	18.5	104.032
160.185	18.49	104.195
160.533	18.51	101.805
160.882	18.4	101.849
161.231	18.37	103.403
161.582	18.44	104.839
161.941	18.42	101.892
162.295	18.4	100.412
162.658	18.38	104.151
163.005	18.39	103.285
163.354	18.42	105.573
163.73	18.49	101.145
164.08	18.44	101.921
164.43	18.42	102.699
164.832	18.41	101.892
165.181	18.43	102.581
165.529	18.42	104.195
165.88	18.44	100.512
166.229	18.38	102.581
166.605	18.37	101.044
166.981	18.37	102.64
167.384	18.4	102.552
167.732	18.35	103.358
168.082	18.36	102.728
168.431	18.33	100.398
168.78	18.28	101.174
169.159	18.34	103.329
169.524	18.32	101.878
169.882	18.39	104.809
170.258	18.34	100.34
170.606	18.33	101.159
170.957	18.36	102.699
171.359	18.37	104.929
171.71	18.48	102.611
172.112	18.38	101.246
172.477	18.43	101.805
172.835	18.4	101.965
173.186	18.45	103.432
173.561	18.41	103.314
173.911	18.36	103.373
174.261	18.37	103.358
174.608	18.34	102.523
174.96	18.33	99.622
175.335	18.31	100.455
175.684	18.24	101.174
176.034	18.34	101.921
176.435	18.34	100.426
176.787	18.35	103.972
177.135	18.38	101.921
177.484	18.37	103.432
177.834	18.38	104.195
178.211	18.37	102.523
178.56	18.37	101.101
178.91	18.4	100.455
179.257	18.32	100.441
179.608	18.31	101.863
179.955	17.69	98.96

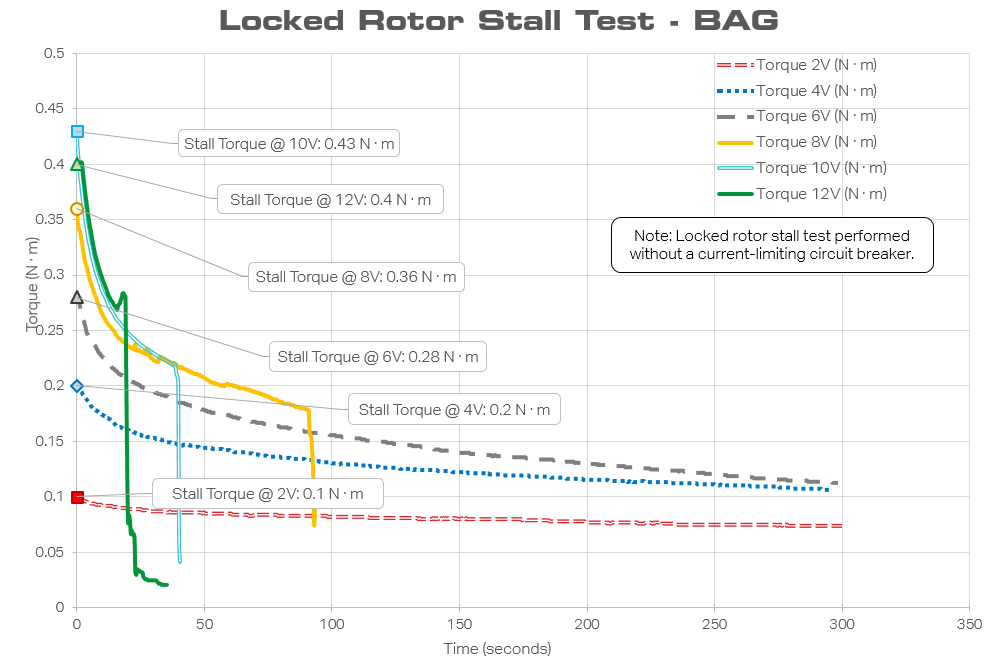

Click to download locked rotor test data (.CSV)

United States

Canada

United Kingdom

Europe

Australia

Asia / Pacific

China
