AndyMark RS775-125 - Other Motors

VEX Robotics Motor Data - AndyMark RS775-125

Note: Published Specifications were taken from the AndyMark website and are current as of December 10, 2015. Experimental tests were performed using new motors that were purchased during the summer of 2015.

Free Speed (RPM)	5700	5800
	Published Specification	Experimental Data
Free Current (A)	N/A	1.6
Maximum Power (W)	N/A	43
Stall Torque (N · m)	0.25	0.28
Stall Current (A)	22	18

Click to download 12V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.282865	17.687	212.244	0	0	212.244
58.018	0.280036	17.526	210.312	1.701	0.809	208.611
116.036	0.277208	17.366	208.392	3.368	1.616	205.024
174.054	0.274379	17.205	206.46	5.001	2.422	201.459
232.072	0.27155	17.044	204.528	6.599	3.226	197.929
290.09	0.268722	16.883	202.596	8.163	4.029	194.433
348.108	0.265893	16.723	200.676	9.693	4.83	190.983
406.126	0.263064	16.562	198.744	11.188	5.629	187.556
464.144	0.260236	16.401	196.812	12.649	6.427	184.163
522.162	0.257407	16.24	194.88	14.075	7.222	180.805
580.18	0.254579	16.08	192.96	15.467	8.016	177.493
638.198	0.25175	15.919	191.028	16.825	8.808	174.203
696.216	0.248921	15.758	189.096	18.148	9.597	170.948
754.233	0.246093	15.598	187.176	19.437	10.384	167.739
812.251	0.243264	15.437	185.244	20.692	11.17	164.552
870.269	0.240435	15.276	183.312	21.912	11.953	161.4
928.287	0.237607	15.115	181.38	23.098	12.735	158.282
986.305	0.234778	14.955	179.46	24.249	13.512	155.211
1044.323	0.231949	14.794	177.528	25.366	14.288	152.162
1102.341	0.229121	14.633	175.596	26.449	15.062	149.147
1160.359	0.226292	14.472	173.664	27.497	15.833	146.167
1218.377	0.223463	14.312	171.744	28.511	16.601	143.233
1276.395	0.220635	14.151	169.812	29.491	17.367	140.321
1334.413	0.217806	13.99	167.88	30.436	18.13	137.444
1392.431	0.214977	13.829	165.948	31.347	18.89	134.601
1450.449	0.212149	13.669	164.028	32.223	19.645	131.805
1508.467	0.20932	13.508	162.096	33.066	20.399	129.03
1566.485	0.206491	13.347	160.164	33.873	21.149	126.291
1624.503	0.203663	13.187	158.244	34.647	21.895	123.597
1682.521	0.200834	13.026	156.312	35.386	22.638	120.926
1740.539	0.198006	12.865	154.38	36.09	23.377	118.29
1798.557	0.195177	12.704	152.448	36.761	24.114	115.687
1856.575	0.192348	12.544	150.528	37.396	24.843	113.132
1914.593	0.18952	12.383	148.596	37.998	25.571	110.598
1972.611	0.186691	12.222	146.664	38.565	26.295	108.099
2030.629	0.183862	12.061	144.732	39.098	27.014	105.634
2088.647	0.181034	11.901	142.812	39.596	27.726	103.216
2146.665	0.178205	11.74	140.88	40.06	28.436	100.82
2204.682	0.175376	11.579	138.948	40.49	29.14	98.458
2262.7	0.172548	11.419	137.028	40.885	29.837	96.143
2320.718	0.169719	11.258	135.096	41.246	30.531	93.85
2378.736	0.16689	11.097	133.164	41.572	31.219	91.592
2436.754	0.164062	10.936	131.232	41.865	31.902	89.367
2494.772	0.161233	10.776	129.312	42.122	32.574	87.19
2552.79	0.158404	10.615	127.38	42.346	33.244	85.034
2610.808	0.155576	10.454	125.448	42.535	33.906	82.913
2668.826	0.152747	10.293	123.516	42.69	34.562	80.826
2726.844	0.149918	10.133	121.596	42.81	35.207	78.786
2784.862	0.14709	9.972	119.664	42.896	35.847	76.768
2842.88	0.144261	9.811	117.732	42.947	36.479	74.785
2900.898	0.141433	9.651	115.812	42.965	37.099	72.847
2958.916	0.138604	9.49	113.88	42.947	37.713	70.933
3016.934	0.135775	9.329	111.948	42.896	38.318	69.052
3074.952	0.132947	9.168	110.016	42.81	38.913	67.206
3132.97	0.130118	9.008	108.096	42.69	39.493	65.406
3190.988	0.127289	8.847	106.164	42.535	40.065	63.629
3249.006	0.124461	8.686	104.232	42.346	40.627	61.886
3307.024	0.121632	8.525	102.3	42.122	41.175	60.178
3365.042	0.118803	8.365	100.38	41.865	41.707	58.515
3423.06	0.115975	8.204	98.448	41.573	42.228	56.875
3481.078	0.113146	8.043	96.516	41.246	42.735	55.27
3539.096	0.110317	7.882	94.584	40.885	43.226	53.699
3597.114	0.107489	7.722	92.664	40.49	43.696	52.174
3655.131	0.10466	7.561	90.732	40.06	44.152	50.672
3713.149	0.101831	7.4	88.8	39.596	44.59	49.204
3771.167	0.099003	7.24	86.88	39.098	45.002	47.782
3829.185	0.096174	7.079	84.948	38.565	45.398	46.383
3887.203	0.093345	6.918	83.016	37.998	45.772	45.018
3945.221	0.090517	6.757	81.084	37.396	46.12	43.688
4003.239	0.087688	6.597	79.164	36.76	46.435	42.404
4061.257	0.08486	6.436	77.232	36.09	46.729	41.142
4119.275	0.082031	6.275	75.3	35.386	46.993	39.914
4177.293	0.079202	6.114	73.368	34.647	47.224	38.721
4235.311	0.076374	5.954	71.448	33.873	47.409	37.575
4293.329	0.073545	5.793	69.516	33.066	47.566	36.45
4351.347	0.070716	5.632	67.584	32.223	47.678	35.361
4409.365	0.067888	5.472	65.664	31.347	47.738	34.317
4467.383	0.065059	5.311	63.732	30.436	47.756	33.296
4525.401	0.06223	5.15	61.8	29.491	47.72	32.309
4583.419	0.059402	4.989	59.868	28.511	47.623	31.357
4641.437	0.056573	4.829	57.948	27.497	47.451	30.451
4699.455	0.053744	4.668	56.016	26.449	47.217	29.567
4757.473	0.050916	4.507	54.084	25.366	46.901	28.718
4815.491	0.048087	4.346	52.152	24.249	46.497	27.903
4873.509	0.045258	4.186	50.232	23.098	45.983	27.134
4931.527	0.04243	4.025	48.3	21.912	45.366	26.388
4989.545	0.039601	3.864	46.368	20.692	44.626	25.676
5047.563	0.036772	3.703	44.436	19.437	43.742	24.999
5105.58	0.033944	3.543	42.516	18.148	42.685	24.368
5163.598	0.031115	3.382	40.584	16.825	41.457	23.759
5221.616	0.028287	3.221	38.652	15.468	40.019	23.184
5279.634	0.025458	3.061	36.732	14.075	38.318	22.657
5337.652	0.022629	2.9	34.8	12.649	36.348	22.151
5395.67	0.019801	2.739	32.868	11.188	34.039	21.68
5453.688	0.016972	2.578	30.936	9.693	31.332	21.243
5511.706	0.014143	2.418	29.016	8.163	28.133	20.853
5569.724	0.011315	2.257	27.084	6.6	24.369	20.484
5627.742	0.008486	2.096	25.152	5.001	19.883	20.151
5685.76	0.005657	1.935	23.22	3.368	14.505	19.852
5743.778	0.002829	1.775	21.3	1.702	7.991	19.598
5801.796	0	1.614	19.368	0	0	19.368

Click to download 10V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.242	13.963	167.556	0	0	167.556
47.27	0.23958	13.831	165.972	1.186	0.715	164.786
94.54	0.23716	13.699	164.388	2.348	1.428	162.04
141.81	0.23474	13.567	162.804	3.486	2.141	159.318
189.08	0.23232	13.435	161.22	4.6	2.853	156.62
236.35	0.2299	13.303	159.636	5.69	3.564	153.946
283.62	0.22748	13.171	158.052	6.756	4.275	151.296
330.89	0.22506	13.039	156.468	7.798	4.984	148.67
378.16	0.22264	12.907	154.884	8.817	5.693	146.067
425.43	0.22022	12.775	153.3	9.811	6.4	143.489
472.7	0.2178	12.643	151.716	10.781	7.106	140.935
519.97	0.21538	12.511	150.132	11.728	7.812	138.404
567.24	0.21296	12.379	148.548	12.65	8.516	135.898
614.51	0.21054	12.248	146.976	13.549	9.219	133.427
661.78	0.20812	12.116	145.392	14.423	9.92	130.969
709.05	0.2057	11.984	143.808	15.274	10.621	128.534
756.32	0.20328	11.852	142.224	16.1	11.32	126.124
803.59	0.20086	11.72	140.64	16.903	12.019	123.737
850.86	0.19844	11.588	139.056	17.681	12.715	121.375
898.13	0.19602	11.456	137.472	18.436	13.411	119.036
945.4	0.1936	11.324	135.888	19.167	14.105	116.721
992.67	0.19118	11.192	134.304	19.874	14.798	114.43
1039.94	0.18876	11.06	132.72	20.556	15.488	112.164
1087.21	0.18634	10.928	131.136	21.215	16.178	109.921
1134.48	0.18392	10.796	129.552	21.85	16.866	107.702
1181.75	0.1815	10.664	127.968	22.461	17.552	105.507
1229.02	0.17908	10.532	126.384	23.048	18.236	103.336
1276.29	0.17666	10.4	124.8	23.611	18.919	101.189
1323.56	0.17424	10.268	123.216	24.15	19.6	99.066
1370.83	0.17182	10.136	121.632	24.665	20.278	96.967
1418.1	0.1694	10.004	120.048	25.156	20.955	94.892
1465.37	0.16698	9.872	118.464	25.624	21.63	92.84
1512.64	0.16456	9.74	116.88	26.067	22.302	90.813
1559.91	0.16214	9.608	115.296	26.486	22.972	88.81
1607.18	0.15972	9.476	113.712	26.881	23.64	86.831
1654.45	0.1573	9.344	112.128	27.253	24.305	84.875
1701.72	0.15488	9.212	110.544	27.6	24.967	82.944
1748.99	0.15246	9.08	108.96	27.924	25.628	81.036
1796.26	0.15004	8.949	107.388	28.223	26.281	79.165
1843.53	0.14762	8.817	105.804	28.499	26.936	77.305
1890.8	0.1452	8.685	104.22	28.75	27.586	75.47
1938.07	0.14278	8.553	102.636	28.978	28.234	73.658
1985.34	0.14036	8.421	101.052	29.181	28.877	71.871
2032.61	0.13794	8.289	99.468	29.361	29.518	70.107
2079.88	0.13552	8.157	97.884	29.517	30.155	68.367
2127.15	0.1331	8.025	96.3	29.649	30.788	66.651
2174.42	0.13068	7.893	94.716	29.756	31.416	64.96
2221.69	0.12826	7.761	93.132	29.84	32.041	63.292
2268.96	0.12584	7.629	91.548	29.9	32.66	61.648
2316.23	0.12342	7.497	89.964	29.936	33.276	60.028
2363.501	0.121	7.365	88.38	29.948	33.885	58.432
2410.771	0.11858	7.233	86.796	29.936	34.49	56.86
2458.041	0.11616	7.101	85.212	29.9	35.089	55.312
2505.311	0.11374	6.969	83.628	29.84	35.682	53.788
2552.581	0.11132	6.837	82.044	29.756	36.268	52.288
2599.851	0.1089	6.705	80.46	29.649	36.849	50.811
2647.121	0.10648	6.573	78.876	29.517	37.422	49.359
2694.391	0.10406	6.441	77.292	29.361	37.987	47.931
2741.661	0.10164	6.309	75.708	29.181	38.544	46.527
2788.931	0.09922	6.177	74.124	28.978	39.094	45.146
2836.201	0.0968	6.045	72.54	28.75	39.633	43.79
2883.471	0.09438	5.913	70.956	28.499	40.164	42.457
2930.741	0.09196	5.781	69.372	28.223	40.684	41.149
2978.011	0.08954	5.65	67.8	27.924	41.186	39.876
3025.281	0.08712	5.518	66.216	27.6	41.682	38.616
3072.551	0.0847	5.386	64.632	27.253	42.166	37.379
3119.821	0.08228	5.254	63.048	26.881	42.636	36.167
3167.091	0.07986	5.122	61.464	26.486	43.092	34.978
3214.361	0.07744	4.99	59.88	26.067	43.532	33.813
3261.631	0.07502	4.858	58.296	25.624	43.955	32.672
3308.901	0.0726	4.726	56.712	25.156	44.357	31.556
3356.171	0.07018	4.594	55.128	24.665	44.741	30.463
3403.441	0.06776	4.462	53.544	24.15	45.103	29.394
3450.711	0.06534	4.33	51.96	23.611	45.441	28.349
3497.981	0.06292	4.198	50.376	23.048	45.752	27.328
3545.251	0.0605	4.066	48.792	22.461	46.034	26.331
3592.521	0.05808	3.934	47.208	21.85	46.285	25.358
3639.791	0.05566	3.802	45.624	21.215	46.5	24.409
3687.061	0.05324	3.67	44.04	20.556	46.676	23.484
3734.331	0.05082	3.538	42.456	19.874	46.811	22.582
3781.601	0.0484	3.406	40.872	19.167	46.895	21.705
3828.871	0.04598	3.274	39.288	18.436	46.925	20.852
3876.141	0.04356	3.142	37.704	17.681	46.894	20.023
3923.411	0.04114	3.01	36.12	16.903	46.797	19.217
3970.681	0.03872	2.878	34.536	16.1	46.618	18.436
4017.951	0.0363	2.746	32.952	15.274	46.352	17.678
4065.221	0.03388	2.614	31.368	14.423	45.98	16.945
4112.491	0.03146	2.482	29.784	13.549	45.491	16.235
4159.761	0.02904	2.351	28.212	12.65	44.839	15.562
4207.031	0.02662	2.219	26.628	11.728	44.044	14.9
4254.301	0.0242	2.087	25.044	10.781	43.048	14.263
4301.571	0.02178	1.955	23.46	9.811	41.82	13.649
4348.841	0.01936	1.823	21.876	8.817	40.304	13.059
4396.111	0.01694	1.691	20.292	7.798	38.429	12.494
4443.381	0.01452	1.559	18.708	6.756	36.113	11.952
4490.651	0.0121	1.427	17.124	5.69	33.228	11.434
4537.921	0.00968	1.295	15.54	4.6	29.601	10.94
4585.191	0.00726	1.163	13.956	3.486	24.979	10.47
4632.461	0.00484	1.031	12.372	2.348	18.978	10.024
4679.731	0.00242	0.899	10.788	1.186	10.994	9.602
4727.001	0	0.767	9.204	0	0	9.204

Click to download 8V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.165	9.403	112.836	0	0	112.836
36.184	0.16335	9.315	111.78	0.619	0.554	111.161
72.368	0.1617	9.228	110.736	1.225	1.106	109.511
108.551	0.16005	9.14	109.68	1.819	1.658	107.861
144.735	0.1584	9.052	108.624	2.401	2.21	106.223
180.919	0.15675	8.964	107.568	2.97	2.761	104.598
217.103	0.1551	8.877	106.524	3.526	3.31	102.998
253.287	0.15345	8.789	105.468	4.07	3.859	101.398
289.47	0.1518	8.701	104.412	4.602	4.408	99.81
325.654	0.15015	8.614	103.368	5.12	4.953	98.248
361.838	0.1485	8.526	102.312	5.627	5.5	96.685
398.022	0.14685	8.438	101.256	6.121	6.045	95.135
434.205	0.1452	8.35	100.2	6.602	6.589	93.598
470.389	0.14355	8.263	99.156	7.071	7.131	92.085
506.573	0.1419	8.175	98.1	7.528	7.674	90.572
542.757	0.14025	8.087	97.044	7.971	8.214	89.073
578.941	0.1386	7.999	95.988	8.403	8.754	87.585
615.124	0.13695	7.912	94.944	8.822	9.292	86.122
651.308	0.1353	7.824	93.888	9.228	9.829	84.66
687.492	0.13365	7.736	92.832	9.622	10.365	83.21
723.676	0.132	7.649	91.788	10.003	10.898	81.785
759.86	0.13035	7.561	90.732	10.372	11.431	80.36
796.043	0.1287	7.473	89.676	10.729	11.964	78.947
832.227	0.12705	7.385	88.62	11.072	12.494	77.548
868.411	0.1254	7.298	87.576	11.404	13.022	76.172
904.595	0.12375	7.21	86.52	11.723	13.549	74.797
940.779	0.1221	7.122	85.464	12.029	14.075	73.435
976.962	0.12045	7.035	84.42	12.323	14.597	72.097
1013.146	0.1188	6.947	83.364	12.604	15.119	70.76
1049.33	0.11715	6.859	82.308	12.873	15.64	69.435
1085.514	0.1155	6.771	81.252	13.129	16.158	68.123
1121.697	0.11385	6.684	80.208	13.373	16.673	66.835
1157.881	0.1122	6.596	79.152	13.605	17.188	65.547
1194.065	0.11055	6.508	78.096	13.823	17.7	64.273
1230.249	0.1089	6.421	77.052	14.03	18.208	63.022
1266.433	0.10725	6.333	75.996	14.224	18.717	61.772
1302.616	0.1056	6.245	74.94	14.405	19.222	60.535
1338.8	0.10395	6.157	73.884	14.574	19.726	59.31
1374.984	0.1023	6.07	72.84	14.73	20.222	58.11
1411.168	0.10065	5.982	71.784	14.874	20.72	56.91
1447.352	0.099	5.894	70.728	15.005	21.215	55.723
1483.535	0.09735	5.806	69.672	15.124	21.707	54.548
1519.719	0.0957	5.719	68.628	15.23	22.192	53.398
1555.903	0.09405	5.631	67.572	15.324	22.678	52.248
1592.087	0.0924	5.543	66.516	15.405	23.16	51.111
1628.271	0.09075	5.456	65.472	15.474	23.635	49.998
1664.454	0.0891	5.368	64.416	15.53	24.109	48.886
1700.638	0.08745	5.28	63.36	15.574	24.58	47.786
1736.822	0.0858	5.192	62.304	15.605	25.047	46.699
1773.006	0.08415	5.105	61.26	15.624	25.504	45.636
1809.19	0.0825	5.017	60.204	15.63	25.962	44.574
1845.373	0.08085	4.929	59.148	15.624	26.415	43.524
1881.557	0.0792	4.842	58.104	15.605	26.857	42.499
1917.741	0.07755	4.754	57.048	15.574	27.3	41.474
1953.925	0.0759	4.666	55.992	15.53	27.736	40.462
1990.108	0.07425	4.578	54.936	15.474	28.167	39.462
2026.292	0.0726	4.491	53.892	15.405	28.585	38.487
2062.476	0.07095	4.403	52.836	15.324	29.003	37.512
2098.66	0.0693	4.315	51.78	15.23	29.413	36.55
2134.844	0.06765	4.228	50.736	15.124	29.809	35.612
2171.027	0.066	4.14	49.68	15.005	30.203	34.675
2207.211	0.06435	4.052	48.624	14.874	30.59	33.75
2243.395	0.0627	3.964	47.568	14.73	30.966	32.838
2279.579	0.06105	3.877	46.524	14.574	31.326	31.95
2315.763	0.0594	3.789	45.468	14.405	31.682	31.063
2351.946	0.05775	3.701	44.412	14.224	32.027	30.188
2388.13	0.0561	3.613	43.356	14.03	32.36	29.326
2424.314	0.05445	3.526	42.312	13.823	32.669	28.489
2460.498	0.0528	3.438	41.256	13.605	32.977	27.651
2496.682	0.05115	3.35	40.2	13.373	33.266	26.827
2532.865	0.0495	3.263	39.156	13.129	33.53	26.027
2569.049	0.04785	3.175	38.1	12.873	33.787	25.227
2605.233	0.0462	3.087	37.044	12.604	34.024	24.44
2641.417	0.04455	2.999	35.988	12.323	34.242	23.665
2677.6	0.0429	2.912	34.944	12.029	34.424	22.915
2713.784	0.04125	2.824	33.888	11.723	34.593	22.165
2749.968	0.0396	2.736	32.832	11.404	34.734	21.428
2786.152	0.03795	2.649	31.788	11.072	34.831	20.716
2822.336	0.0363	2.561	30.732	10.729	34.911	20.003
2858.519	0.03465	2.473	29.676	10.372	34.951	19.304
2894.703	0.033	2.385	28.62	10.003	34.951	18.617
2930.887	0.03135	2.298	27.576	9.622	34.893	17.954
2967.071	0.0297	2.21	26.52	9.228	34.796	17.292
3003.255	0.02805	2.122	25.464	8.822	34.645	16.642
3039.438	0.0264	2.035	24.42	8.403	34.41	16.017
3075.622	0.02475	1.947	23.364	7.971	34.117	15.393
3111.806	0.0231	1.859	22.308	7.528	33.746	14.78
3147.99	0.02145	1.771	21.252	7.071	33.272	14.181
3184.174	0.0198	1.684	20.208	6.602	32.67	13.606
3220.357	0.01815	1.596	19.152	6.121	31.96	13.031
3256.541	0.0165	1.508	18.096	5.627	31.095	12.469
3292.725	0.01485	1.42	17.04	5.12	30.047	11.92
3328.909	0.0132	1.333	15.996	4.602	28.77	11.394
3365.092	0.01155	1.245	14.94	4.07	27.242	10.87
3401.276	0.0099	1.157	13.884	3.526	25.396	10.358
3437.46	0.00825	1.07	12.84	2.97	23.131	9.87
3473.644	0.0066	0.982	11.784	2.401	20.375	9.383
3509.828	0.00495	0.894	10.728	1.819	16.956	8.909
3546.011	0.0033	0.806	9.672	1.225	12.665	8.447
3582.195	0.00165	0.719	8.628	0.619	7.174	8.009
3618.379	0	0.631	7.572	0	0	7.572

Click to download 6V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.11	6.417	77.004	0	0	77.004
25.064	0.1089	6.361	76.332	0.286	0.375	76.046
50.128	0.1078	6.306	75.672	0.566	0.748	75.106
75.192	0.1067	6.25	75	0.84	1.12	74.16
100.256	0.1056	6.194	74.328	1.109	1.492	73.219
125.32	0.1045	6.139	73.668	1.371	1.861	72.297
150.384	0.1034	6.083	72.996	1.628	2.23	71.368
175.449	0.1023	6.027	72.324	1.88	2.599	70.444
200.513	0.1012	5.971	71.652	2.125	2.966	69.527
225.577	0.1001	5.916	70.992	2.365	3.331	68.627
250.641	0.099	5.86	70.32	2.598	3.695	67.722
275.705	0.0979	5.804	69.648	2.827	4.059	66.821
300.769	0.0968	5.749	68.988	3.049	4.42	65.939
325.833	0.0957	5.693	68.316	3.265	4.779	65.051
350.897	0.0946	5.637	67.644	3.476	5.139	64.168
375.961	0.0935	5.582	66.984	3.681	5.495	63.303
401.025	0.0924	5.526	66.312	3.88	5.851	62.432
426.089	0.0913	5.47	65.64	4.074	6.207	61.566
451.153	0.0902	5.414	64.968	4.261	6.559	60.707
476.218	0.0891	5.359	64.308	4.443	6.909	59.865
501.282	0.088	5.303	63.636	4.619	7.258	59.017
526.346	0.0869	5.247	62.964	4.79	7.608	58.174
551.41	0.0858	5.192	62.304	4.954	7.951	57.35
576.474	0.0847	5.136	61.632	5.113	8.296	56.519
601.538	0.0836	5.08	60.96	5.266	8.638	55.694
626.602	0.0825	5.025	60.3	5.413	8.977	54.887
651.666	0.0814	4.969	59.628	5.555	9.316	54.073
676.73	0.0803	4.913	58.956	5.691	9.653	53.265
701.794	0.0792	4.857	58.284	5.821	9.987	52.463
726.858	0.0781	4.802	57.624	5.945	10.317	51.679
751.922	0.077	4.746	56.952	6.063	10.646	50.889
776.986	0.0759	4.69	56.28	6.176	10.974	50.104
802.051	0.0748	4.635	55.62	6.282	11.294	49.338
827.115	0.0737	4.579	54.948	6.384	11.618	48.564
852.179	0.0726	4.523	54.276	6.479	11.937	47.797
877.243	0.0715	4.468	53.616	6.568	12.25	47.048
902.307	0.0704	4.412	52.944	6.652	12.564	46.292
927.371	0.0693	4.356	52.272	6.73	12.875	45.542
952.435	0.0682	4.3	51.6	6.802	13.182	44.798
977.499	0.0671	4.245	50.94	6.869	13.484	44.071
1002.563	0.066	4.189	50.268	6.929	13.784	43.339
1027.627	0.0649	4.133	49.596	6.984	14.082	42.612
1052.691	0.0638	4.078	48.936	7.033	14.372	41.903
1077.755	0.0627	4.022	48.264	7.076	14.661	41.188
1102.82	0.0616	3.966	47.592	7.114	14.948	40.478
1127.884	0.0605	3.911	46.932	7.146	15.226	39.786
1152.948	0.0594	3.855	46.26	7.172	15.504	39.088
1178.012	0.0583	3.799	45.588	7.192	15.776	38.396
1203.076	0.0572	3.743	44.916	7.206	16.043	37.71
1228.14	0.0561	3.688	44.256	7.215	16.303	37.041
1253.204	0.055	3.632	43.584	7.218	16.561	36.366
1278.268	0.0539	3.576	42.912	7.215	16.813	35.697
1303.332	0.0528	3.521	42.252	7.206	17.055	35.046
1328.396	0.0517	3.465	41.58	7.192	17.297	34.388
1353.46	0.0506	3.409	40.908	7.172	17.532	33.736
1378.524	0.0495	3.354	40.248	7.146	17.755	33.102
1403.588	0.0484	3.298	39.576	7.114	17.976	32.462
1428.653	0.0473	3.242	38.904	7.076	18.188	31.828
1453.717	0.0462	3.186	38.232	7.033	18.396	31.199
1478.781	0.0451	3.131	37.572	6.984	18.588	30.588
1503.845	0.044	3.075	36.9	6.929	18.778	29.971
1528.909	0.0429	3.019	36.228	6.869	18.96	29.359
1553.973	0.0418	2.964	35.568	6.802	19.124	28.766
1579.037	0.0407	2.908	34.896	6.73	19.286	28.166
1604.101	0.0396	2.852	34.224	6.652	19.437	27.572
1629.165	0.0385	2.797	33.564	6.568	19.569	26.996
1654.229	0.0374	2.741	32.892	6.479	19.698	26.413
1679.293	0.0363	2.685	32.22	6.384	19.814	25.836
1704.357	0.0352	2.629	31.548	6.282	19.913	25.266
1729.422	0.0341	2.574	30.888	6.176	19.995	24.712
1754.486	0.033	2.518	30.216	6.063	20.066	24.153
1779.55	0.0319	2.462	29.544	5.945	20.123	23.599
1804.614	0.0308	2.407	28.884	5.821	20.153	23.063
1829.678	0.0297	2.351	28.212	5.691	20.172	22.521
1854.742	0.0286	2.295	27.54	5.555	20.171	21.985
1879.806	0.0275	2.24	26.88	5.413	20.138	21.467
1904.87	0.0264	2.184	26.208	5.266	20.093	20.942
1929.934	0.0253	2.128	25.536	5.113	20.023	20.423
1954.998	0.0242	2.072	24.864	4.954	19.924	19.91
1980.062	0.0231	2.017	24.204	4.79	19.79	19.414
2005.126	0.022	1.961	23.532	4.619	19.629	18.913
2030.19	0.0209	1.905	22.86	4.443	19.436	18.417
2055.255	0.0198	1.85	22.2	4.261	19.194	17.939
2080.319	0.0187	1.794	21.528	4.074	18.924	17.454
2105.383	0.0176	1.738	20.856	3.88	18.604	16.976
2130.447	0.0165	1.683	20.196	3.681	18.226	16.515
2155.511	0.0154	1.627	19.524	3.476	17.804	16.048
2180.575	0.0143	1.571	18.852	3.265	17.319	15.587
2205.639	0.0132	1.515	18.18	3.049	16.771	15.131
2230.703	0.0121	1.46	17.52	2.827	16.136	14.693
2255.767	0.011	1.404	16.848	2.598	15.42	14.25
2280.831	0.0099	1.348	16.176	2.365	14.62	13.811
2305.895	0.0088	1.293	15.516	2.125	13.696	13.391
2330.959	0.0077	1.237	14.844	1.88	12.665	12.964
2356.024	0.0066	1.181	14.172	1.628	11.487	12.544
2381.088	0.0055	1.126	13.512	1.371	10.147	12.141
2406.152	0.0044	1.07	12.84	1.109	8.637	11.731
2431.216	0.0033	1.014	12.168	0.84	6.903	11.328
2456.28	0.0022	0.958	11.496	0.566	4.923	10.93
2481.344	0.0011	0.903	10.836	0.286	2.639	10.55
2506.408	0	0.847	10.164	0	0	10.164

Click to download 4V motor curve data (.CSV)

Click to expand Motor Curve Data

Speed (RPM)	Torque (N·m)	Current (A)	Supplied Power (W)	Output Power (W)	Efficiency (%)	Power Dissipation (W)
0	0.052	3.487	41.844	0	0	41.844
14.916	0.05148	3.46	41.52	0.08	0.193	41.44
29.832	0.05096	3.433	41.196	0.159	0.386	41.037
44.747	0.05044	3.405	40.86	0.236	0.578	40.624
59.663	0.04992	3.378	40.536	0.312	0.77	40.224
74.579	0.0494	3.351	40.212	0.386	0.96	39.826
89.495	0.04888	3.324	39.888	0.458	1.148	39.43
104.41	0.04836	3.297	39.564	0.529	1.337	39.035
119.326	0.04784	3.269	39.228	0.598	1.524	38.63
134.242	0.04732	3.242	38.904	0.665	1.709	38.239
149.158	0.0468	3.215	38.58	0.731	1.895	37.849
164.073	0.04628	3.188	38.256	0.795	2.078	37.461
178.989	0.04576	3.16	37.92	0.858	2.263	37.062
193.905	0.04524	3.133	37.596	0.919	2.444	36.677
208.821	0.04472	3.106	37.272	0.978	2.624	36.294
223.736	0.0442	3.079	36.948	1.036	2.804	35.912
238.652	0.04368	3.052	36.624	1.092	2.982	35.532
253.568	0.04316	3.024	36.288	1.146	3.158	35.142
268.484	0.04264	2.997	35.964	1.199	3.334	34.765
283.399	0.04212	2.97	35.64	1.25	3.507	34.39
298.315	0.0416	2.943	35.316	1.3	3.681	34.016
313.231	0.04108	2.916	34.992	1.347	3.849	33.645
328.147	0.04056	2.888	34.656	1.394	4.022	33.262
343.062	0.04004	2.861	34.332	1.438	4.189	32.894
357.978	0.03952	2.834	34.008	1.482	4.358	32.526
372.894	0.039	2.807	33.684	1.523	4.521	32.161
387.81	0.03848	2.78	33.36	1.563	4.685	31.797
402.726	0.03796	2.752	33.024	1.601	4.848	31.423
417.641	0.03744	2.725	32.7	1.637	5.006	31.063
432.557	0.03692	2.698	32.376	1.672	5.164	30.704
447.473	0.0364	2.671	32.052	1.706	5.323	30.346
462.389	0.03588	2.643	31.716	1.737	5.477	29.979
477.304	0.03536	2.616	31.392	1.767	5.629	29.625
492.22	0.03484	2.589	31.068	1.796	5.781	29.272
507.136	0.03432	2.562	30.744	1.823	5.93	28.921
522.052	0.0338	2.535	30.42	1.848	6.075	28.572
536.967	0.03328	2.507	30.084	1.871	6.219	28.213
551.883	0.03276	2.48	29.76	1.893	6.361	27.867
566.799	0.03224	2.453	29.436	1.914	6.502	27.522
581.715	0.03172	2.426	29.112	1.932	6.636	27.18
596.63	0.0312	2.399	28.788	1.949	6.77	26.839
611.546	0.03068	2.371	28.452	1.965	6.906	26.487
626.462	0.03016	2.344	28.128	1.979	7.036	26.149
641.378	0.02964	2.317	27.804	1.991	7.161	25.813
656.293	0.02912	2.29	27.48	2.001	7.282	25.479
671.209	0.0286	2.263	27.156	2.01	7.402	25.146
686.125	0.02808	2.235	26.82	2.018	7.524	24.802
701.041	0.02756	2.208	26.496	2.023	7.635	24.473
715.956	0.02704	2.181	26.172	2.027	7.745	24.145
730.872	0.02652	2.154	25.848	2.03	7.854	23.818
745.788	0.026	2.127	25.524	2.031	7.957	23.493
760.704	0.02548	2.099	25.188	2.03	8.059	23.158
775.62	0.02496	2.072	24.864	2.027	8.152	22.837
790.535	0.02444	2.045	24.54	2.023	8.244	22.517
805.451	0.02392	2.018	24.216	2.018	8.333	22.198
820.367	0.0234	1.99	23.88	2.01	8.417	21.87
835.283	0.02288	1.963	23.556	2.001	8.495	21.555
850.198	0.02236	1.936	23.232	1.991	8.57	21.241
865.114	0.02184	1.909	22.908	1.979	8.639	20.929
880.03	0.02132	1.882	22.584	1.965	8.701	20.619
894.946	0.0208	1.854	22.248	1.949	8.76	20.299
909.861	0.02028	1.827	21.924	1.932	8.812	19.992
924.777	0.01976	1.8	21.6	1.914	8.861	19.686
939.693	0.01924	1.773	21.276	1.893	8.897	19.383
954.609	0.01872	1.746	20.952	1.871	8.93	19.081
969.524	0.0182	1.718	20.616	1.848	8.964	18.768
984.44	0.01768	1.691	20.292	1.823	8.984	18.469
999.356	0.01716	1.664	19.968	1.796	8.994	18.172
1014.272	0.01664	1.637	19.644	1.767	8.995	17.877
1029.187	0.01612	1.61	19.32	1.737	8.991	17.583
1044.103	0.0156	1.582	18.984	1.706	8.987	17.278
1059.019	0.01508	1.555	18.66	1.672	8.96	16.988
1073.935	0.01456	1.528	18.336	1.637	8.928	16.699
1088.85	0.01404	1.501	18.012	1.601	8.889	16.411
1103.766	0.01352	1.473	17.676	1.563	8.842	16.113
1118.682	0.013	1.446	17.352	1.523	8.777	15.829
1133.598	0.01248	1.419	17.028	1.482	8.703	15.546
1148.514	0.01196	1.392	16.704	1.438	8.609	15.266
1163.429	0.01144	1.365	16.38	1.394	8.51	14.986
1178.345	0.01092	1.337	16.044	1.347	8.396	14.697
1193.261	0.0104	1.31	15.72	1.3	8.27	14.42
1208.177	0.00988	1.283	15.396	1.25	8.119	14.146
1223.092	0.00936	1.256	15.072	1.199	7.955	13.873
1238.008	0.00884	1.229	14.748	1.146	7.771	13.602
1252.924	0.00832	1.201	14.412	1.092	7.577	13.32
1267.84	0.0078	1.174	14.088	1.036	7.354	13.052
1282.755	0.00728	1.147	13.764	0.978	7.105	12.786
1297.671	0.00676	1.12	13.44	0.919	6.838	12.521
1312.587	0.00624	1.093	13.116	0.858	6.542	12.258
1327.503	0.00572	1.065	12.78	0.795	6.221	11.985
1342.418	0.0052	1.038	12.456	0.731	5.869	11.725
1357.334	0.00468	1.011	12.132	0.665	5.481	11.467
1372.25	0.00416	0.984	11.808	0.598	5.064	11.21
1387.166	0.00364	0.956	11.472	0.529	4.611	10.943
1402.081	0.00312	0.929	11.148	0.458	4.108	10.69
1416.997	0.0026	0.902	10.824	0.386	3.566	10.438
1431.913	0.00208	0.875	10.5	0.312	2.971	10.188
1446.829	0.00156	0.848	10.176	0.236	2.319	9.94
1461.744	0.00104	0.82	9.84	0.159	1.616	9.681
1476.66	0.00052	0.793	9.516	0.08	0.841	9.436
1491.576	0	0.766	9.192	0	0	9.192

Click to download peak power test data (.CSV)

Click to expand Peak Power Test Data

Time (s)	Current (A)	Power Out (W)
0	11.96	54.149
0.363	11.97	53.969
0.766	11.95	53.885
1.17	11.97	53.599
1.55	11.98	53.948
1.934	11.96	53.586
2.284	11.92	52.826
2.634	11.89	52.307
3.019	11.91	52.913
3.401	11.91	52.742
3.762	11.91	52.706
4.109	11.9	53.28
4.486	11.87	52.611
4.836	11.85	53.049
5.223	11.82	52.778
5.604	11.8	52.929
5.963	11.79	52.121
6.314	11.76	52.157
6.689	11.76	51.357
7.039	11.73	51.711
7.387	11.68	52.313
7.737	11.64	52.224
8.124	11.63	52.017
8.477	11.63	51.192
8.838	11.6	51.106
9.186	11.57	50.596
9.563	11.54	51.014
9.911	11.52	50.345
10.263	11.51	51.554
10.61	11.51	51.245
10.96	11.49	51.766
11.309	11.48	50.613
11.685	11.45	51.432
12.034	11.44	50.131
12.384	11.41	50.643
12.733	11.37	50.641
13.083	11.34	49.899
13.46	11.32	50.204
13.834	11.28	50.001
14.184	11.23	49.639
14.532	11.22	50.503
14.892	11.22	50.419
15.247	11.2	50.038
15.607	11.19	50.038
15.957	11.18	48.635
16.321	11.17	49.741
16.684	11.19	49.062
17.049	11.15	49.731
17.408	11.14	48.905
17.784	11.12	49.127
18.132	11.12	48.579
18.481	11.1	48.886
18.83	11.1	48.188
19.18	11.08	49.592
19.555	11.07	49.453
19.904	11.06	49.722
20.255	11.06	49.23
20.604	11.07	49.137
20.952	11.05	48.802
21.301	11.05	48.031
21.678	11.03	48.579
22.027	10.99	47.993
22.376	10.97	48.272
22.725	10.94	47.306
23.075	10.92	48.281
23.452	10.92	48.477
23.817	10.9	48.533
24.176	10.9	48.421
24.571	10.89	48.886
24.955	10.88	48.023
25.332	10.88	48.328
25.679	10.86	48.31
26.029	10.84	47.583
26.379	10.82	48.272
26.755	10.84	47.732
27.103	10.83	48.292
27.452	10.84	47.24
27.801	10.83	47.4
28.15	10.79	46.655
28.527	10.77	47.481
28.877	10.75	46.487
29.225	10.74	48.049
29.574	10.73	47.874
29.925	10.72	48.17
30.301	10.72	47.066
30.649	10.71	48.169
31	10.72	47.697
31.347	10.71	46.683
31.698	10.7	47.316
32.047	10.71	47.093
32.397	10.7	47.603
32.755	10.69	46.226
33.112	10.68	46.414
33.471	10.65	47.035
33.821	10.63	47.195
34.171	10.63	46.675
34.545	10.62	47.78
34.895	10.62	46.982
35.244	10.6	47.603
35.594	10.6	47.017
35.942	10.59	46.069
36.292	10.58	46.543
36.642	10.57	46.013
37.017	10.55	46.969
37.366	10.55	46.916
37.716	10.52	47.185
38.064	10.52	46.815
38.441	10.52	47.286
38.791	10.52	46.331
39.14	10.52	45.445
39.488	10.51	45.863
39.838	10.49	45.501
40.188	10.48	45.93
40.546	10.46	45.522
40.93	10.45	46.515
41.29	10.41	45.644
41.666	10.41	47.007
42.053	10.4	46.533
42.434	10.4	46.069
42.793	10.41	45.595
43.143	10.4	44.814
43.544	10.39	45.601
43.894	10.4	45.891
44.244	10.41	45.556
44.594	10.39	45.93
44.969	10.4	46.181
45.318	10.4	45.807
45.668	10.39	46.108
46.017	10.38	44.742
46.42	10.37	45.243
46.769	10.34	44.686
47.117	10.33	45.211
47.467	10.34	44.797
47.815	10.31	45.149
48.191	10.29	45.327
48.541	10.29	45.958
48.891	10.29	45.132
49.24	10.3	46.386
49.589	10.29	45.466
49.938	10.28	45.249
50.315	10.28	45.539
50.663	10.27	45.003
51.015	10.25	45.149
51.4	10.24	45.194
51.755	10.23	44.926
52.115	10.23	44.368
52.464	10.22	44.496
52.815	10.22	45.996
53.173	10.21	44.932
53.556	10.2	44.089
53.916	10.2	44.664
54.319	10.19	43.933
54.667	10.19	44.736
55.016	10.2	44.396
55.391	10.21	43.994
55.742	10.22	46.16
56.091	10.22	46.181
56.44	10.23	44.965
56.789	10.23	46.254
57.138	10.23	45.355
57.516	10.23	44.758
57.862	10.22	45.188
58.213	10.21	45.099
58.561	10.21	45.26
58.912	10.22	44.407
59.287	10.19	45.216
59.637	10.18	43.782
60.038	10.18	44.915
60.408	10.17	45.02
60.765	10.16	43.81
61.112	10.16	44.647
61.474	10.16	45.333
61.839	10.15	44.786
62.202	10.15	44.954
62.591	10.15	45.539
62.939	10.14	44.909
63.288	10.14	43.699
63.639	10.14	44.491
63.987	10.14	43.671
64.336	10.14	44.34
64.697	10.14	43.799
65.051	10.14	44.368
65.412	10.14	44.585
65.76	10.14	45.556
66.111	10.13	44.368
66.485	10.12	43.71
66.835	10.12	44.256
67.184	10.11	43.487
67.533	10.09	44.507
67.883	10.09	43.448
68.232	10.08	45.428
68.608	10.07	44.24
68.958	10.06	45.344
69.308	10.04	44.112
69.709	10.03	44.971
70.06	10.03	44.156
70.409	10.04	45.166
70.795	10.04	43.95
71.151	10.04	43.097
71.509	10.04	43.659
71.858	10	43.085
72.209	10.01	44.061
72.583	10.01	43.332
72.933	10.01	44.887
73.283	10.01	43.822
73.631	10	45.009
73.98	10	43.527
74.33	9.98	44.909
74.707	9.98	43.883
75.076	9.98	43.922
75.458	9.97	43.771
75.807	9.98	43.604
76.156	9.97	43.571
76.506	9.97	43.633
76.856	9.97	44.647
77.204	9.97	43.627
77.58	9.97	43.599
77.93	9.95	43.531
78.278	9.97	42.846
78.628	9.95	44.089
78.977	9.95	43.643
79.327	9.94	44.005
79.675	9.93	43.599
80.052	9.92	43.269
80.402	9.92	43.454
80.751	9.91	42.193
81.1	9.89	43.101
81.449	9.88	42.137
81.825	9.88	42.962
82.175	9.88	42.221
82.524	9.87	43.308
82.873	9.88	43.436
83.222	9.88	43.376
83.572	9.88	43.448
83.949	9.88	43.359
84.312	9.89	43.431
84.673	9.89	43.431
85.032	9.9	42.332
85.386	9.89	43.404
85.747	9.9	42.531
86.096	9.91	43.32
86.446	9.89	42.595
86.806	9.85	42.755
87.19	9.84	42.751
87.548	9.84	43.727
87.898	9.84	43.225
88.273	9.85	42.053
88.622	9.84	42.444
88.972	9.83	41.982
89.322	9.83	42.567
89.669	9.83	42.639
90.046	9.83	42.36
90.396	9.83	43.615
90.744	9.82	43.715
91.094	9.83	42.233
91.443	9.82	43.002
91.791	9.81	43.013
92.151	9.81	42.432
92.534	9.8	42.918
92.894	9.79	43.476
93.253	9.78	43.448
93.635	9.76	42.906
93.996	9.76	43.006
94.371	9.8	42.711
94.719	9.82	42.448
95.068	9.83	42.969
95.417	9.81	41.66
95.767	9.8	42.611
96.126	9.8	41.743
96.509	9.79	43.157
96.868	9.78	41.635
97.217	9.78	41.635
97.595	9.79	41.734
97.996	9.8	41.898
98.362	9.79	43.548
98.723	9.78	41.954
99.07	9.78	43.448
99.421	9.73	43.436
99.798	9.76	42.934
100.199	9.76	41.452
100.565	9.75	42.567
100.923	9.75	41.635
101.274	9.73	43.285
101.623	9.74	42.551
102	9.73	42.069
102.364	9.72	41.926
102.724	9.72	41.93
103.099	9.71	42.376
103.448	9.72	42.312
103.8	9.73	43.157
104.148	9.72	42.484
104.497	9.73	41.412
104.874	9.72	42.595
105.222	9.72	41.551
105.572	9.71	42.193
105.922	9.71	42.288
106.271	9.69	41.858
106.63	9.69	41.958
107.013	9.68	41.217
107.373	9.69	42.316
107.749	9.69	41.567
108.137	9.69	42.137
108.517	9.68	41.105
108.877	9.67	41.161
109.28	9.67	41.942
109.628	9.64	41.381
109.978	9.64	41.846
110.327	9.64	41.926
110.676	9.63	41.496
111.054	9.64	41.511
111.418	9.63	40.867
111.777	9.62	41.623
112.139	9.62	41.037
112.501	9.63	41.468
112.852	9.63	41.44
113.201	9.62	42.806
113.552	9.65	41.747
113.954	9.64	42.783
114.303	9.65	41.811
114.65	9.66	42.806
115.002	9.65	41.691
115.378	9.64	41.08
115.743	9.64	41.79
116.102	9.65	41.775
116.477	9.65	41.87
116.827	9.64	41.827
117.176	9.64	41.775
117.526	9.64	41.914
117.873	9.65	41.759
118.234	9.65	40.925
118.606	9.64	40.811
119.002	9.64	41.551
119.369	9.62	40.854
119.728	9.64	41.328
120.076	9.63	41.242
120.453	9.62	42.543
120.802	9.62	41.576
121.151	9.61	42.332
121.501	9.61	41.381
121.852	9.6	41.443
122.224	9.61	41.663
122.575	9.62	41.635
122.925	9.62	41.396
123.274	9.62	41.607
123.624	9.62	41.97
123.972	9.61	41.551
124.349	9.64	42.209
124.698	9.65	41.616
125.048	9.64	40.895
125.434	9.61	41.037
125.789	9.6	41.567
126.149	9.61	41.611
126.497	9.62	40.994
126.847	9.63	40.616
127.206	9.61	42.081
127.562	9.59	41.009
127.922	9.59	40.882
128.271	9.58	41.536
128.619	9.59	41.607
128.97	9.6	40.978
129.346	9.61	41.133
129.694	9.6	41.734
130.044	9.59	40.814
130.393	9.58	41.483
130.742	9.57	41.942
131.118	9.57	40.814
131.467	9.57	41.288
131.815	9.58	40.771
132.166	9.59	41.846
132.568	9.59	40.547
132.918	9.59	41.707
133.266	9.6	41.034
133.616	9.6	41.424
133.965	9.59	40.644
134.34	9.58	40.492
134.691	9.57	40.981
135.077	9.55	41.049
135.46	9.54	41.186
135.818	9.53	40.619
136.168	9.54	41.118
136.545	9.54	40.114
136.946	9.53	40.854
137.313	9.53	40.591
137.671	9.52	41.4
138.021	9.51	40.717
138.371	9.54	40.241
138.748	9.54	41.245
139.134	9.55	41.273
139.516	9.56	40.814
139.877	9.57	41.344
140.262	9.58	40.826
140.617	9.59	41.102
140.976	9.59	40.923
141.326	9.57	41.775
141.702	9.56	41.217
142.05	9.56	41.164
142.4	9.58	40.978
142.75	9.56	40.659
143.098	9.56	40.421
143.448	9.55	40.492
143.808	9.54	40.783
144.162	9.54	41.006
144.523	9.53	41.316
144.871	9.53	40.755
145.222	9.52	41.455
145.569	9.51	40.631
145.947	9.53	40.854
146.297	9.51	40.575
146.699	9.51	40.284
147.065	9.51	40.715
147.424	9.51	40.213
147.773	9.5	40.324
148.149	9.5	40.839
148.499	9.5	40.743
148.848	9.5	40.854
149.197	9.51	39.724
149.585	9.51	40.269
149.939	9.51	39.795
150.298	9.51	40.254
150.648	9.5	39.878
151.007	9.51	40.522
151.389	9.51	39.807
151.75	9.51	40.966
152.153	9.51	40.727
152.503	9.51	41.189
152.905	9.5	40.768
153.255	9.5	39.934
153.657	9.51	41.316
154.007	9.51	39.863
154.354	9.51	40.324
154.705	9.51	40.727
155.053	9.49	41.049
155.404	9.5	40.727
155.779	9.49	41.217
156.129	9.48	40.601
156.479	9.48	41.288
156.828	9.49	40.129
157.177	9.49	39.878
157.58	9.47	39.878
157.929	9.47	39.599
158.278	9.47	39.642
158.655	9.47	40.284
159.002	9.47	40.616
159.353	9.49	41.4
159.702	9.49	40.783
160.052	9.49	39.904
160.4	9.47	40.352
160.751	9.46	39.642
161.127	9.46	40.101
161.475	9.46	39.389
161.826	9.44	40.479
162.176	9.45	40.449
162.576	9.45	40.631
162.926	9.45	40.421
163.274	9.44	40.033
163.623	9.44	39.934
164	9.45	39.571
164.349	9.41	39.683
164.698	9.41	39.181
165.048	9.41	39.194
165.398	9.41	39.642
165.746	9.42	39.975
166.122	9.41	39.797
166.472	9.41	40.142
166.858	9.41	39.055
167.239	9.41	40.438
167.599	9.42	39.531
167.949	9.42	41.022
168.325	9.42	39.291
168.675	9.4	40.743
169.076	9.39	40.086
169.426	9.38	40.159
169.775	9.4	40.142
170.123	9.4	40.395
170.474	9.4	39.571
170.822	9.39	40.56
171.199	9.37	40.702
171.547	9.38	39.767
171.897	9.39	40.018
172.246	9.4	39.809
172.596	9.41	40.101
112.501	9.63	41.468
112.852	9.63	41.44
113.201	9.62	42.806
113.552	9.65	41.747
113.954	9.64	42.783
114.303	9.65	41.811
114.65	9.66	42.806
115.002	9.65	41.691
115.378	9.64	41.08
115.743	9.64	41.79
116.102	9.65	41.775
116.477	9.65	41.87
116.827	9.64	41.827
117.176	9.64	41.775
117.526	9.64	41.914
117.873	9.65	41.759
118.234	9.65	40.925
118.606	9.64	40.811
119.002	9.64	41.551
119.369	9.62	40.854
119.728	9.64	41.328
120.076	9.63	41.242
120.453	9.62	42.543

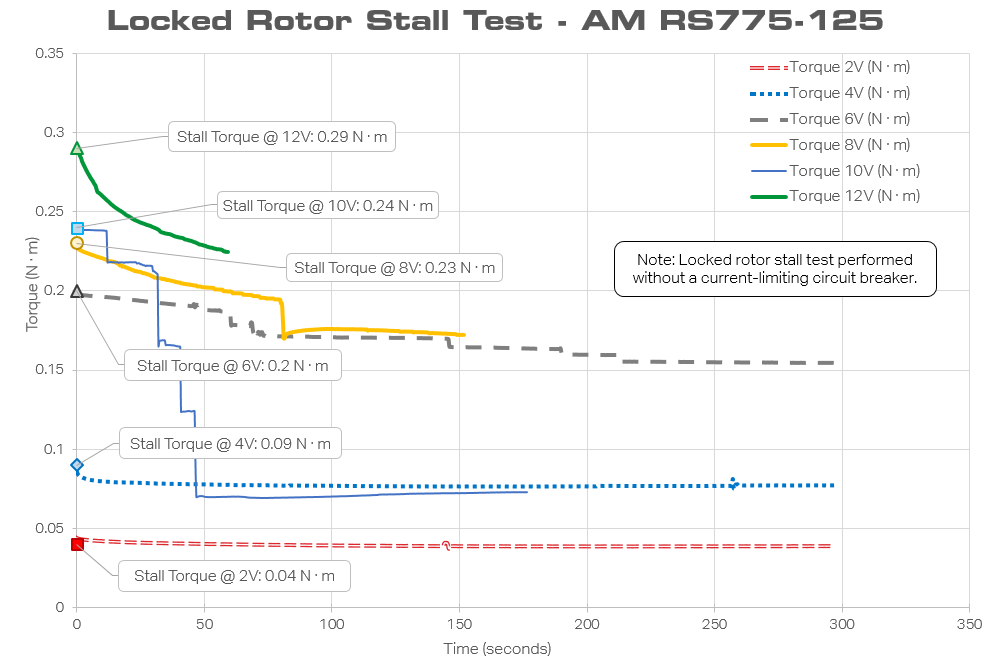

Click to download locked rotor test data (.CSV)

United States

Canada

United Kingdom

Europe

Australia

Asia / Pacific

China
